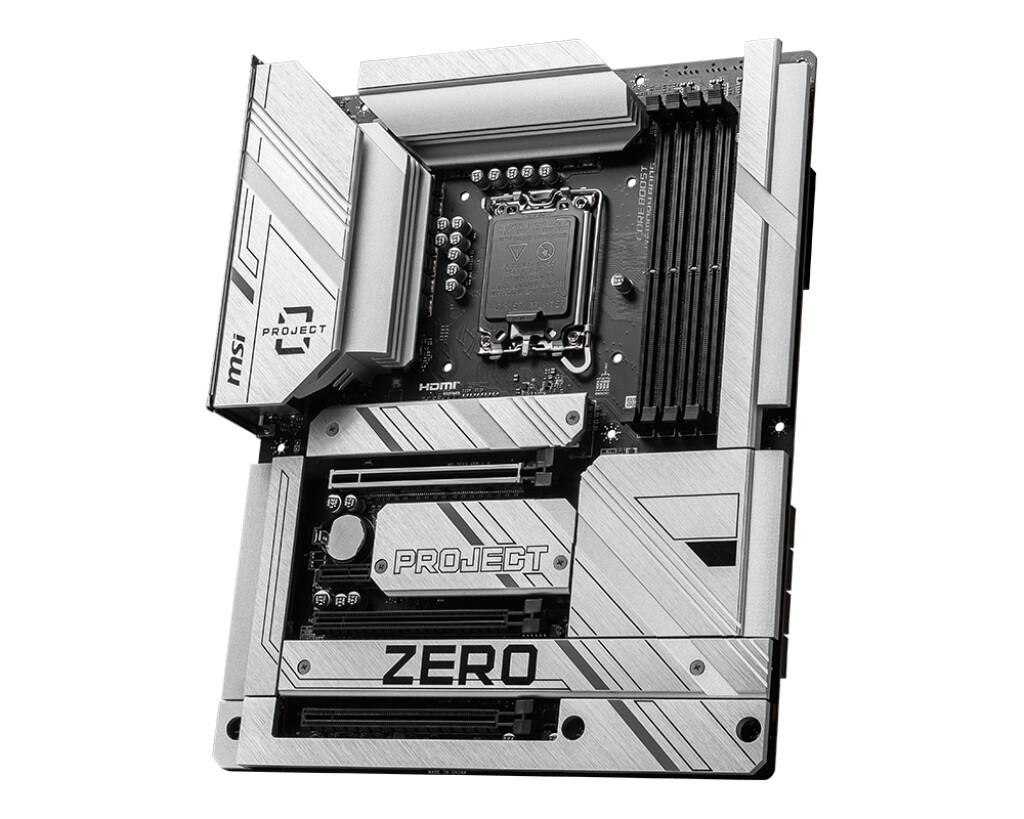

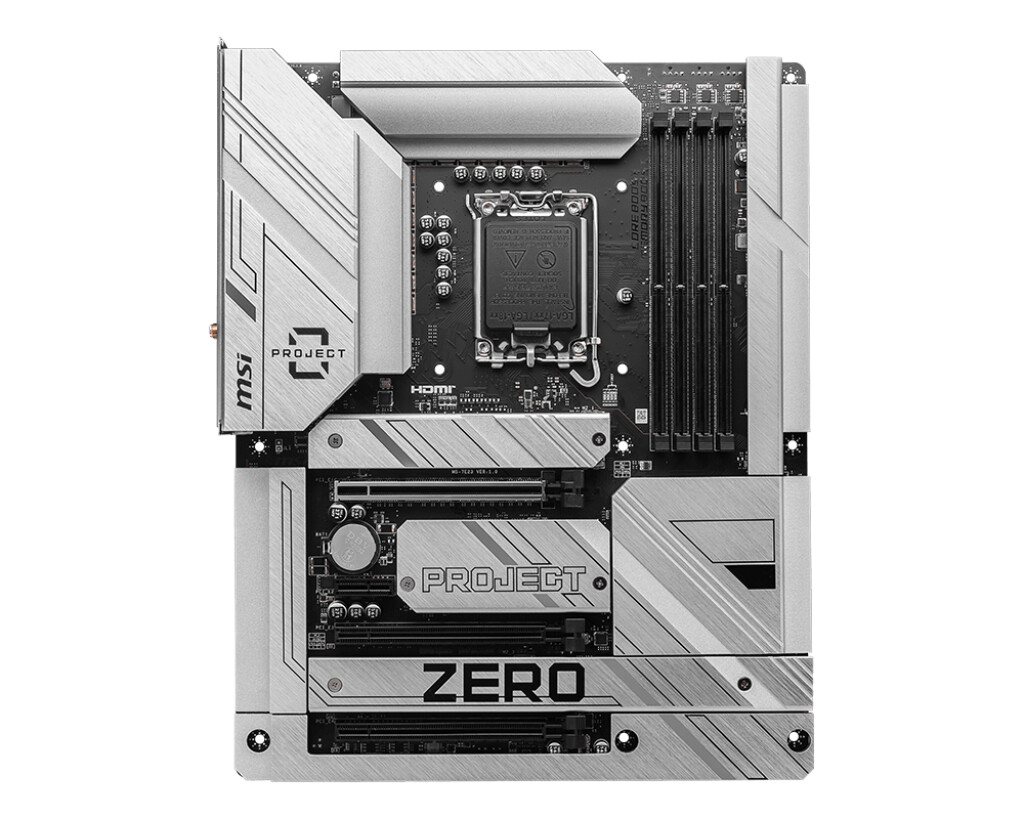

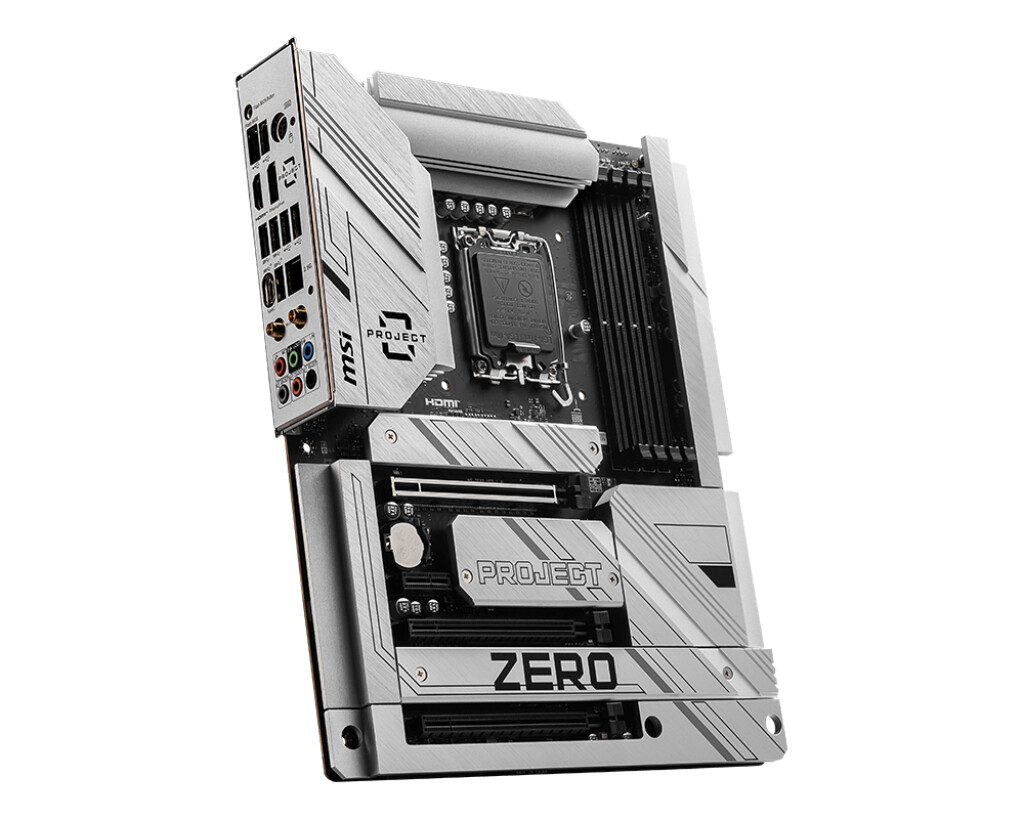

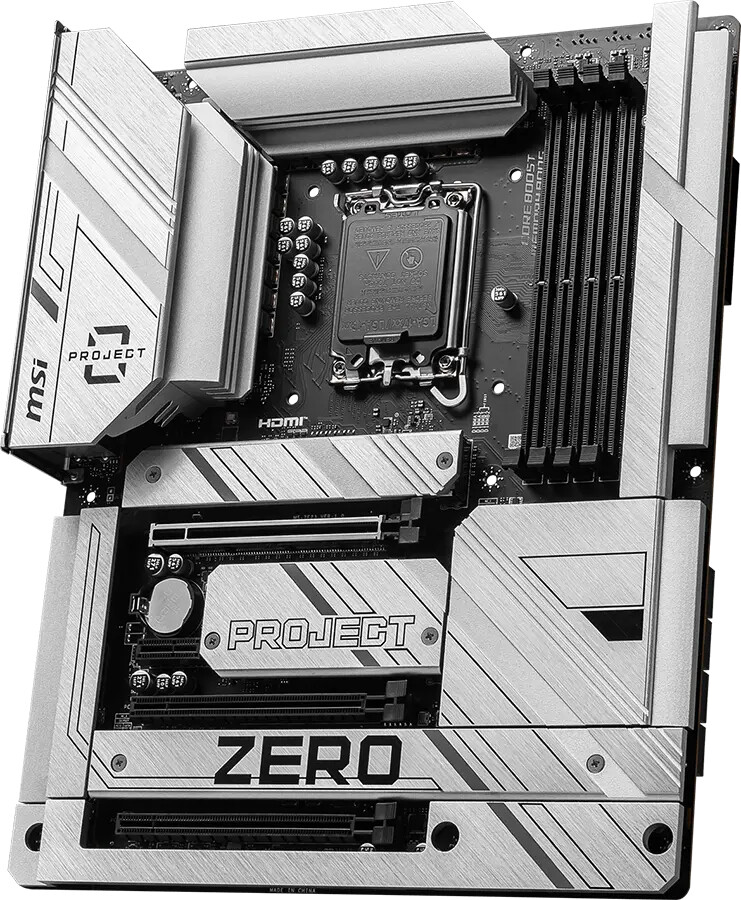

The Z790 PROJECT ZERO features a unique back-connect design that reduces the complexity of cable management, resulting in a neater and more aesthetically pleasing appearance for the system. It’s compatible with Intel 14th /13th/ 12th Processors, supports DDR5, and comes equipped with a 2.5G LAN and Wi-Fi 7 solution. This makes it an excellent choice among ATX motherboards.
ABSOLUTE SIMPLICITY

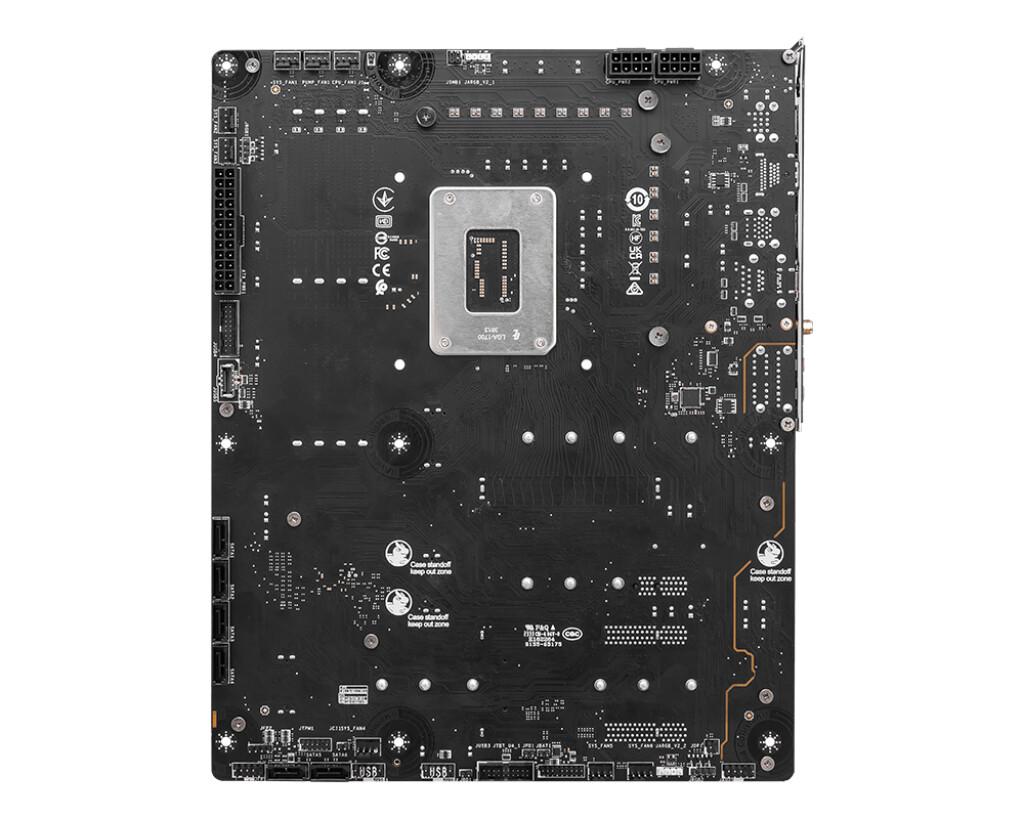

Z790 PROJECT ZERO moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card’s aesthetic design to be fully displayed.
| Vægt | 1,0430 kg |
|---|---|
| Processorproducent | Intel |
| Brand | MSI |
| State | Default |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Pentium®, Intel® Pentium® Gold |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 256 GB |
| Hukommelses slots type | SO-DIMM |
| Hukommelseskanaler | To-kanals |
| Understøttede hukommelsesclock-hastigheder | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| USB 2.0-stik | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 4 |
| Antal SATA III-stik | 6 |
| Antal USB 2.0-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 6 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 1 |
| Ethernet LAN-porte (RJ-45) | 1 |
| HDMI-version | 2.1 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel Z790 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC897 |
| Understøttede Windows-operativsystemer | Windows 10 x64, Windows 11 Enterprise x64 |
| Antal M.2 (M) slots | 4 |
| BIOS-type | UEFI AMI |
| BIOS-hukommelsesstørrelse | 256 Mbit |
| ACPI-version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Bredde | 243,8 mm |
| Dybde | 304,8 mm |
| Understøttede lagerdrev brugerflader | PCI Express 4.0, PCI Express 5.0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| Wi-Fi | Ja |
| RAID-niveauer | 0, 1, 5, 10 |
| Bluetooth | Ja |
| Bluetooth-version | 5.4 |
| Antal understøttede HHD'er | 10 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 1 |
| DisplayPort-version | 1.4 |
| Ikke-fejlkorrigerende kode | Ja |
| Understøtter RAID | Ja |
| Bedste Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Produktfarve | Grå |
| Antal understøttede lagerdiske | 4 |
| Samlet antal SATA-stik | 6 |
| On-board grafikkort | Ingen |
| Understøttet hukommelsesur hastighed (maks.) | 7200 MHz |
| Maksimal intern hukommelse understøttet af processor | 256 GB |
| PCI Ekspres x1 slots | 1 |
| PCI Express x16 slots | 3 |
| Antal USB4 Gen 2x2-porte | 2 |
| ECC сompatibility | NON-ECC |
