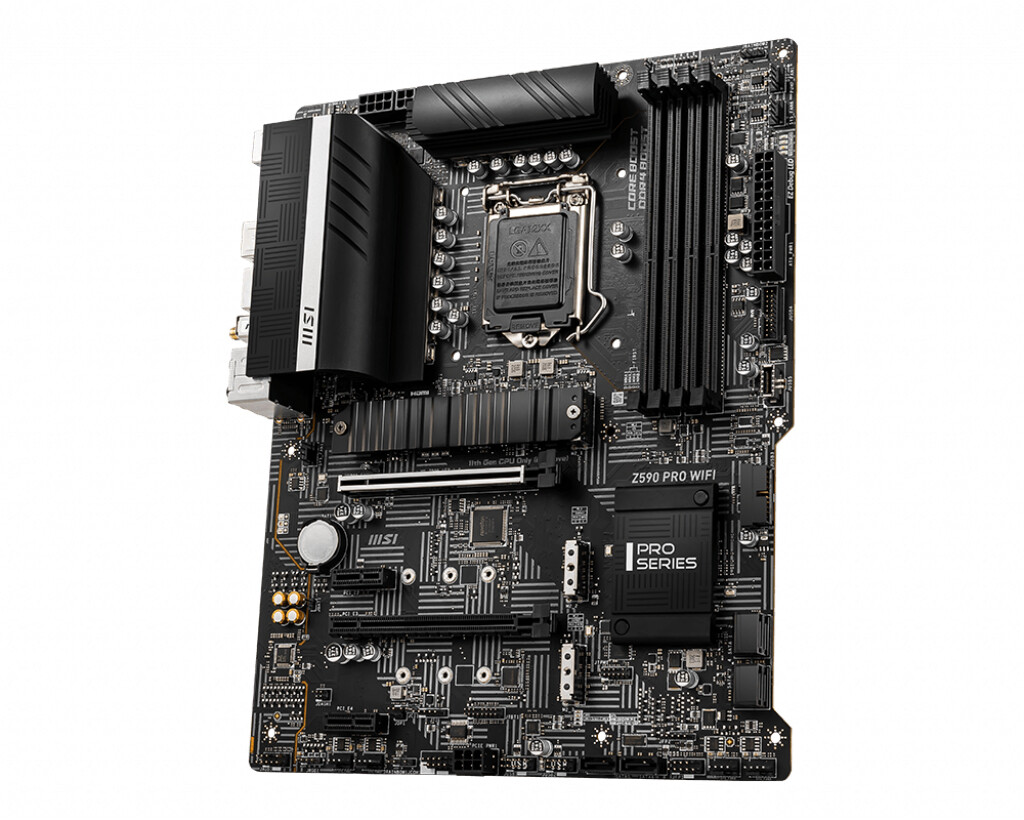

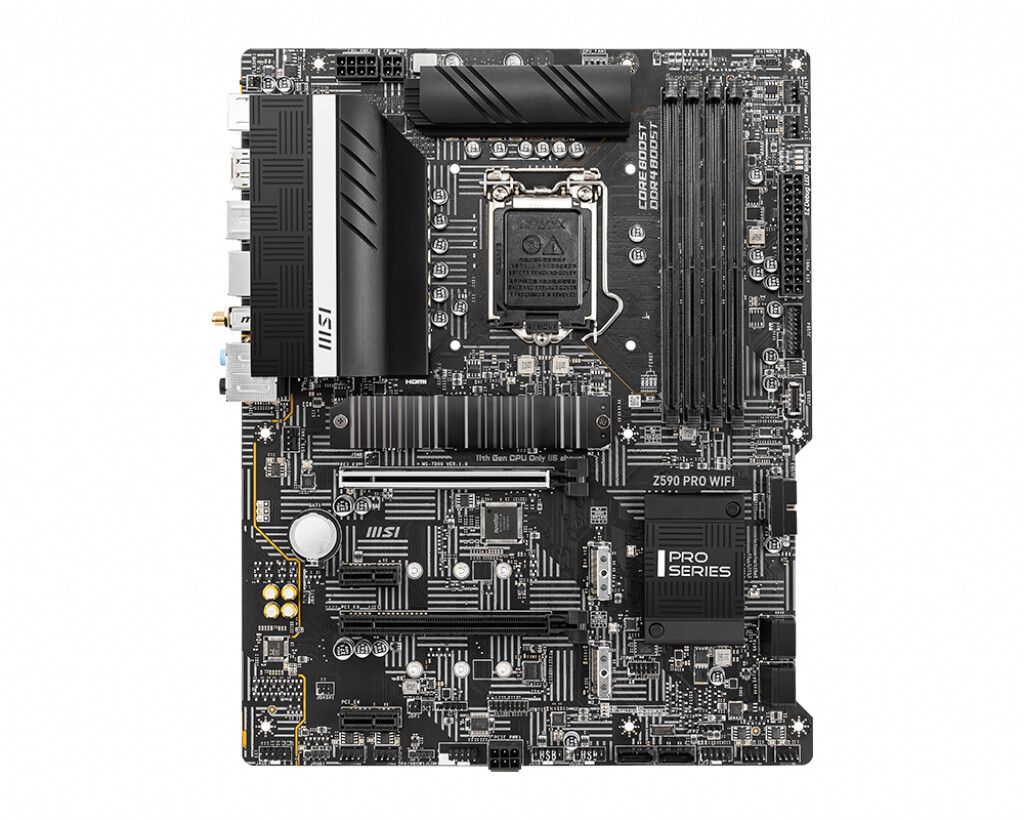

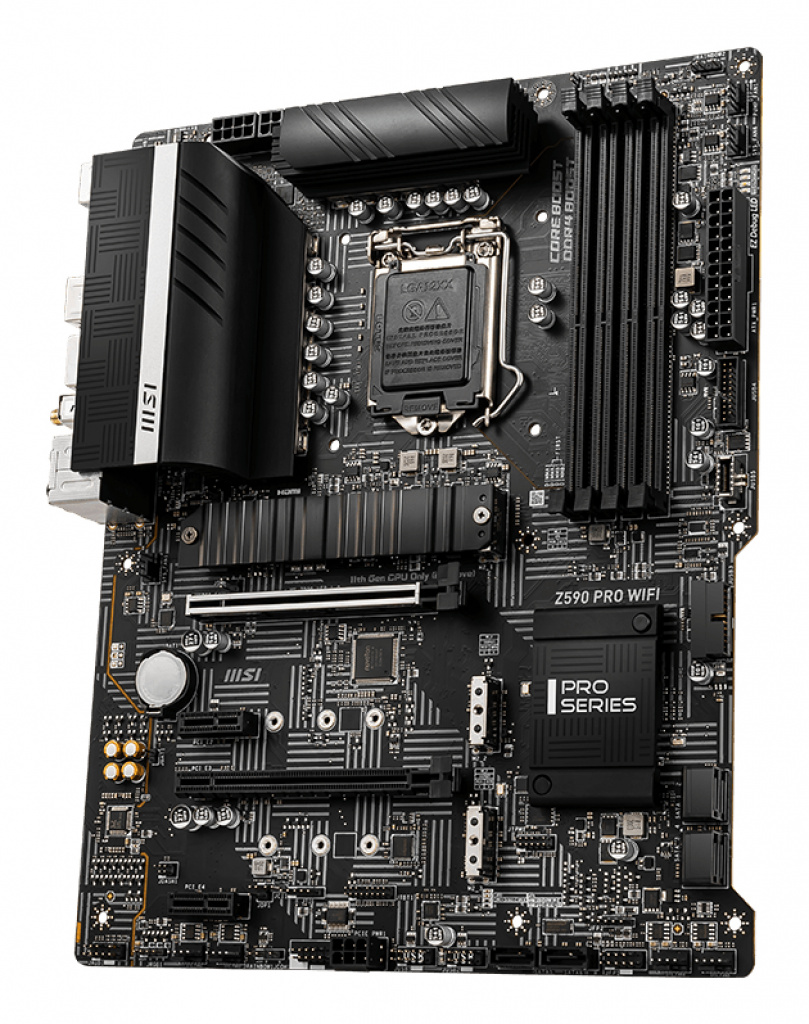

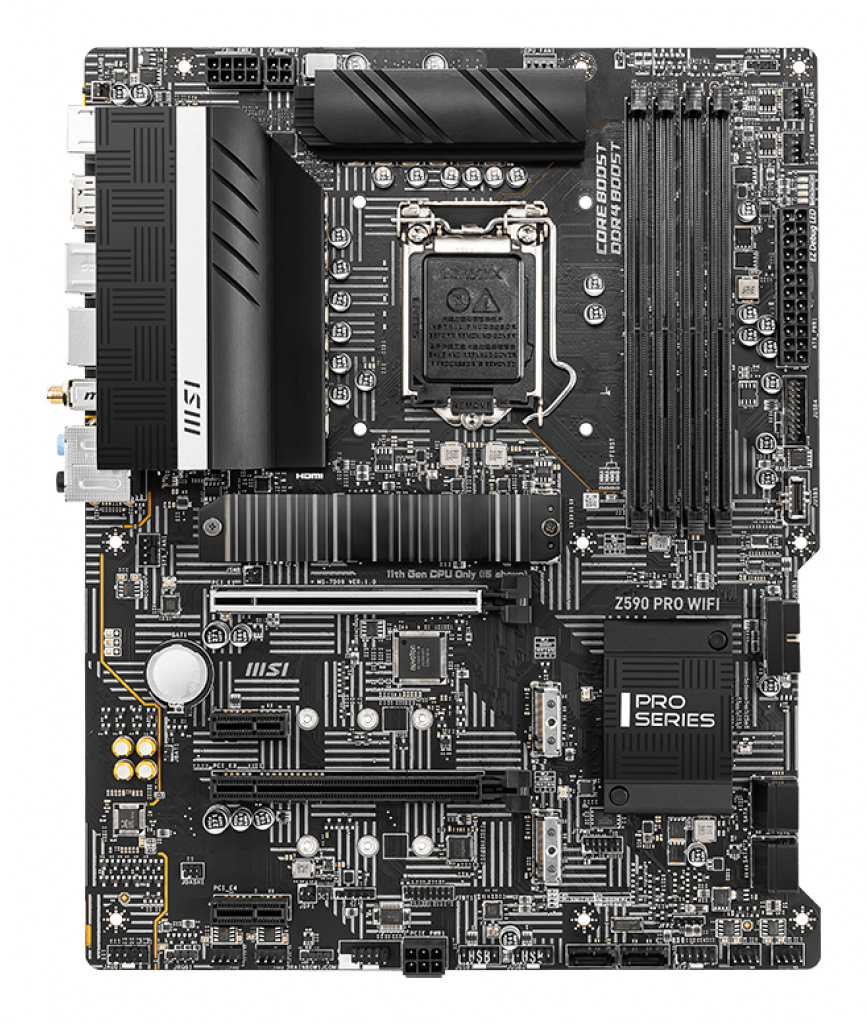

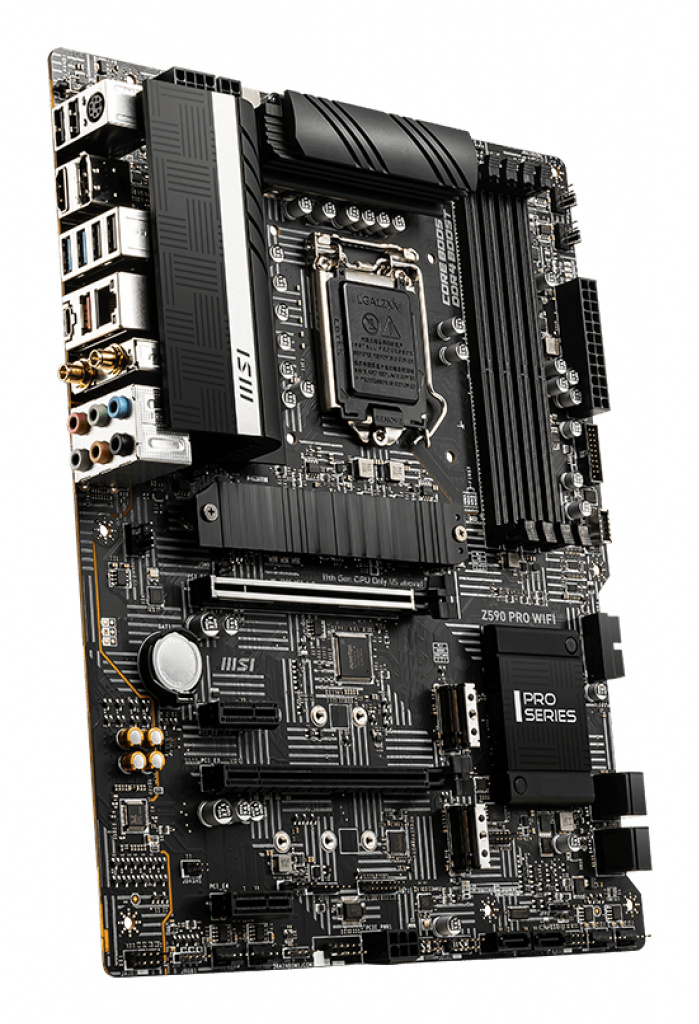

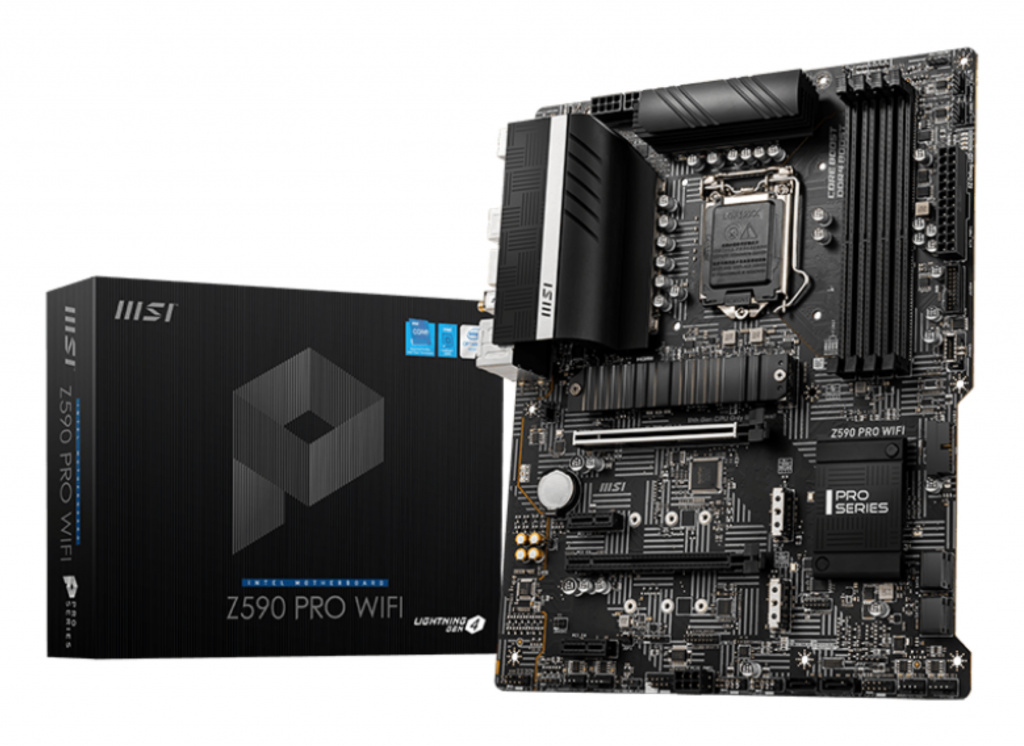

PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
THERMAL SOLUTION FOR MORE CORES AND HIGHER PERFORMANCE
With more cores’ processors, thermal and power design is more important to make sure the temperature keeps lower. MSI extended PWM heatsink with 7W/mK thermal pad ensures even high-end processors to run in full speed with MSI motherboards.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
2.5Gbps LAN provides incredible data transfer speed faster than general Gigabit LAN. This is a premium solution for demanding users.
12 + 2 +1 POWER DESIGN
Unleash and sustain maximum performance with an aggressive VRM design built with a total of 12 digital CPU power phases. Combining 8 + 4 pin power connectors and exclusive Core Boost technology, PRO series motherboard is ready to sustain heavy daily work.
| Vægt | 1,0000 kg |
|---|---|
| Processorproducent | Intel |
| Brand | MSI |
| State | Default |
| Processor sokkel | LGA 1200 (Socket H5) |
| Kompatibel processor serie | Intel® Celeron®, Intel® Core™ i9, Intel® Pentium G |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Hukommelses slots type | DIMM |
| Hukommelseskanaler | To-kanals |
| Understøttede hukommelsesclock-hastigheder | 2133,2666,2933,4000,4400,4700,5333 MHz |
| Ikke-bufferet hukommelse | Ja |
| Understøttelse af parallel behandlingsteknologi | Crossfire |
| USB 2.0-stik | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 2 |
| Lydstik på frontpanel | Ja |
| ATX strømstrik (24 stikben) | Ja |
| CPU-ventilatorstik | Ja |

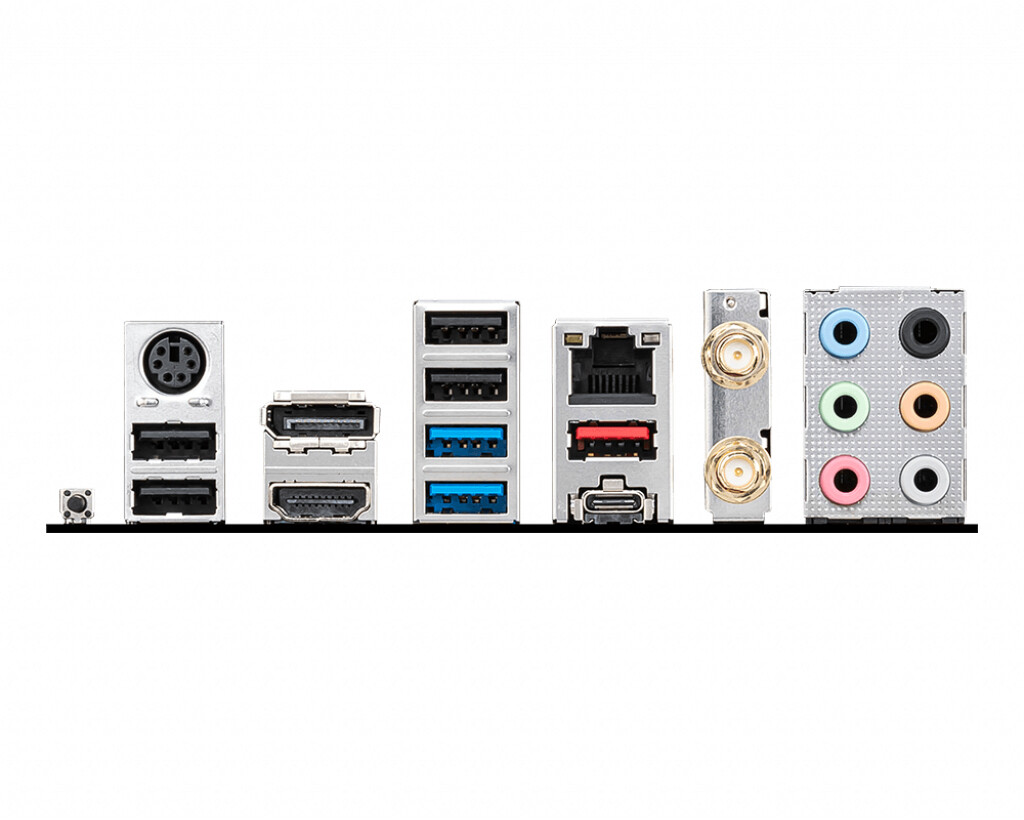

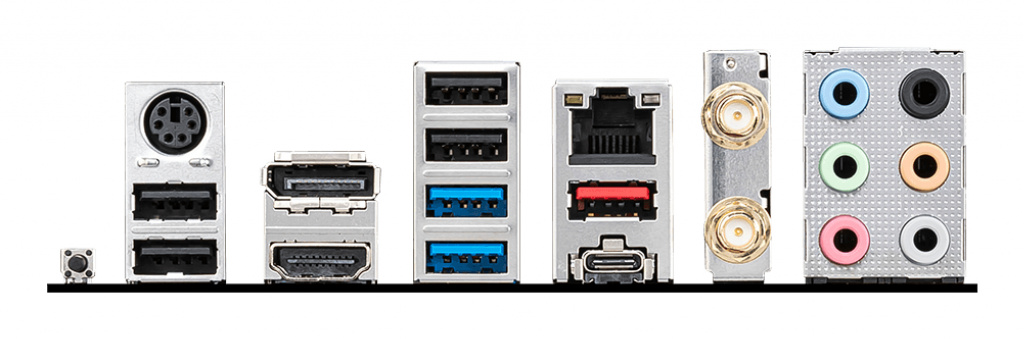

| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 1 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal PS/2-porte | 1 |
| HDMI-version | 2.0b |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet |
| LAN Kontroller | Intel I225-V |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel Z590 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC897 |
| PCI Ekspres x16 (Gen 3.x) slots | 1 |
| Harmoniseret systemkode (HS) | 84733020 |
| Bredde | 305 mm |
| Dybde | 244 mm |
| Kabler inkluderet | SATA |
| Understøttede lagerdrev brugerflader | M.2, SATA |
| Antal SATA stik | 6 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| Wi-Fi | Ja |
| RAID-niveauer | 0, 1, 5, 10 |
| TPM-stik | Ja |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Bluetooth | Ja |
| Bluetooth-version | 5.2 |
| Understøttet datalagringsdrev typer | HDD & SSD |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 1 |
| DisplayPort-version | 1.4 |
| Kølingstype | Aktiv |
| Seriel port overskrifter | 1 |
| Bedste Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Lydstik | Ja |
| Samlet antal SATA-stik | 6 |
| Strømstik til ventilator | Ja |
| PCI Ekspres x1 slots | 2 |
| Grafikadapter familie | AMD |
| ECC сompatibility | NON-ECC |
