Convert and Scale a Composite or S-Video Signal to Work with a VGA Display

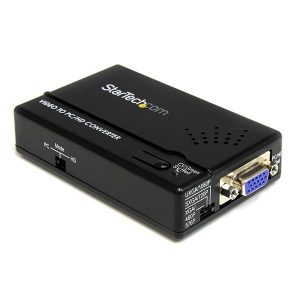

The VID2VGATV2 Composite and S-Video to VGA Video Scan Converter (with Scaler) provides a simple way to convert Composite or S-Video signals to VGA (or Component RCA) output, for use with computer monitors, projectors or HDTV sets. Equipped with an On-Screen Display (OSD) menu and dip switches for simple configuration and selection of your video output settings, this compact video scaler installs quickly and easily for a true plug-and-play experience. An integrated scaler circuit dynamically converts the S-Video or Composite video input signal, giving you multiple output resolutions to choose from, to ensure compatibility with your display or projector. Plus, the Component/S-Video-VGA Converter includes a VGA to Component (RCA) breakout cable, which enables you to connect to TV sets that are not equipped with a VGA port. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
– Automatically detects the input resolution while allowing you to customize the output resolution and refresh rate using the On-Screen Display, ensuring compatibility with your display or projector
– Adjustments for brightness, contrast, color, RGB level and horizontal/vertical positioning offers flexibility
– Offers a pure hardware design, with no software installation required, delivering an easy-to-use and time-saving solution
| Vægt | 0,0000 kg |
|---|---|
| Certificering | CE, FCC, TAA, REACH |
| Brand | StarTech.com |
| State | Default |
| Maksimal videoopløsning | 1600 x 1200 pixel |
| Værtsgrænseflade | Composite, S-Video |
| Output-grænseflade | VGA |
| Bredde | 64 mm |
| Dybde | 112 mm |
| Højde | 26 mm |
| Vægt | 86 g |
| Pakkebredde | 209 mm |
| Pakkedybde | 118 mm |
| Pakkehøjde | 61 mm |
| Pakkevægt | 459 g |
| Harmoniseret systemkode (HS) | 85176990 |
| Konverter type | Aktiv videoomformer |
| Plug and play | Ja |
| Produktfarve | Sort |
| Videoopløsninger | 1024 x 768,1280 x 1024,1600 x 1200 |
| Maksimal opdateringshastighed | 60 Hz |
| Driftstemperatur (T-T) | 0 – 40 °C |
| Opbevaringstemperatur (T-T) | 0 – 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 – 60% |
| Ekstern strømadapter | Ja |
| Driftsspænding | 5 V |
| Driftsstrøm | 1 A |
| Husmateriale | Plast |
| Format til analogt signal | NTSC, PAL |
| Strømforbrug (typisk) | 2,5 W |
| Skærmvisning (OSD) | Ja |
| Compliance certificates | RoHS |
