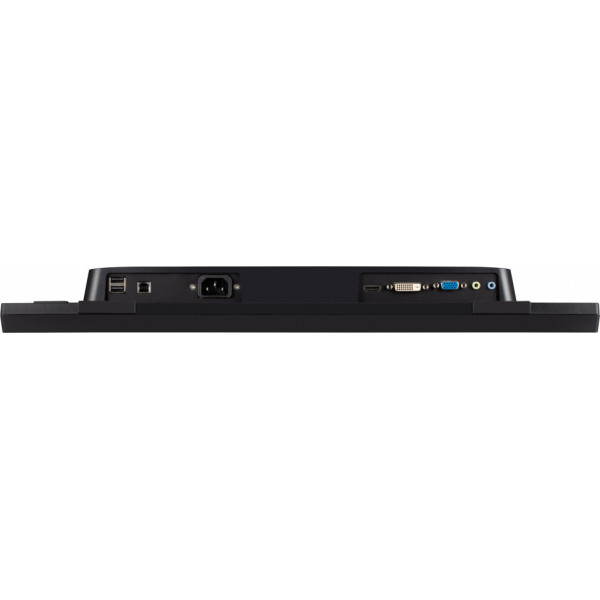

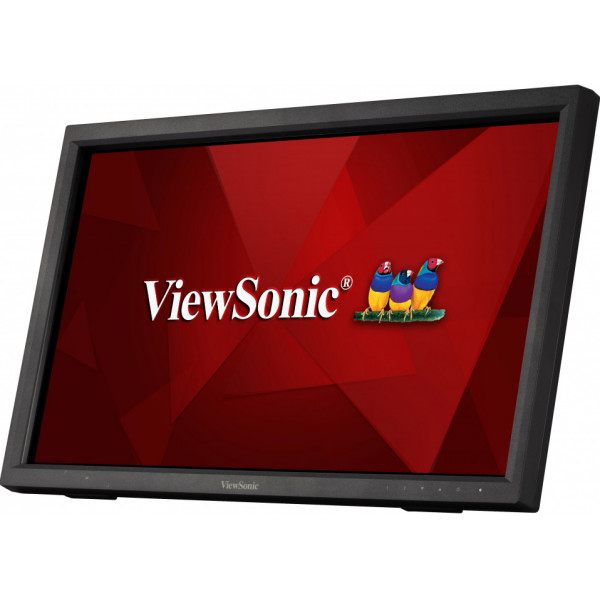

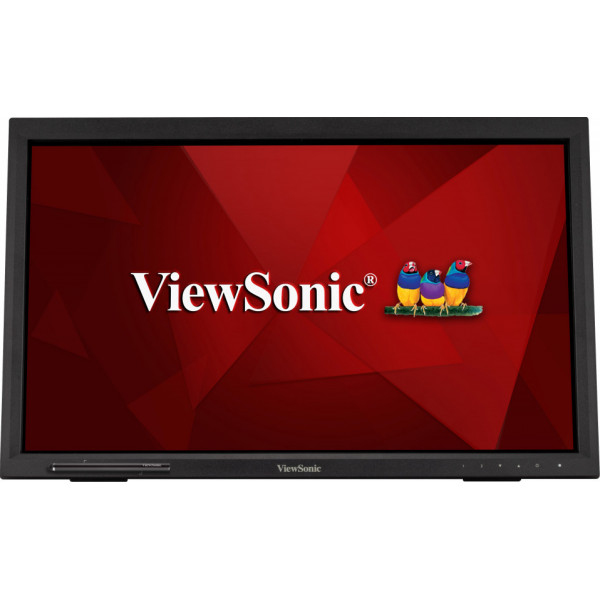

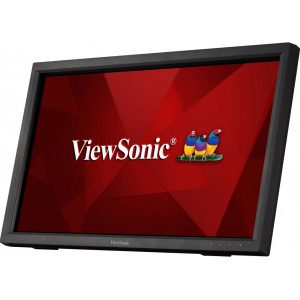

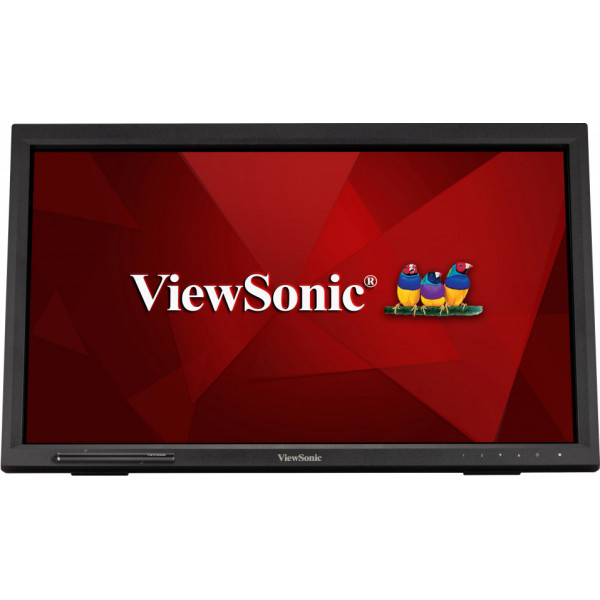

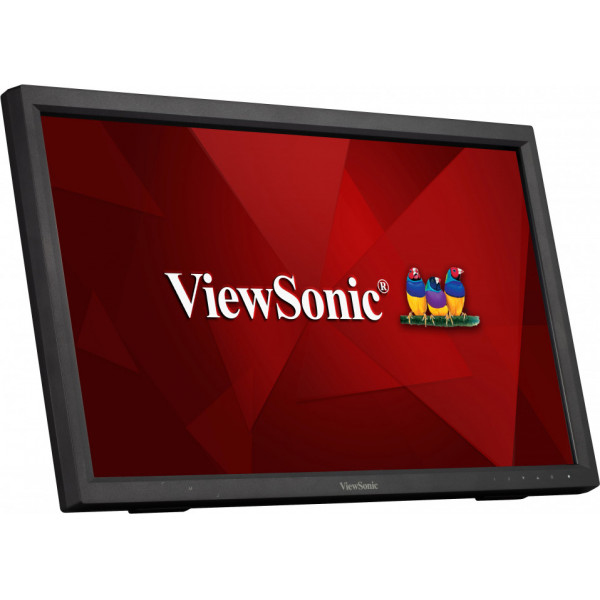

The ViewSonic TD2223 is a 22” IR touch display designed for intuitive multi-touch use. Infrared (IR) touchscreen can detect up to 10 points of contact compared to optical touchscreens and can be operated by a stylus, fingers and gloved hands. The multi-touch input is more accurate, and the display is faster. Coupled with an adjustable tilt, you can easily interact with the TD2223 at an ideal position. This monitor features Full HD resolution to give you clear images and is built with scratch-resistant 7H hardness screen to surface damage. To support your work, the TD2223 is equipped with VGA, HDMI, DVI and USB connectivity.
Intuitive Multi-touch Experience
An infrared touchscreen that can detect up to 10 points of contact under Windows compared to optical touchscreens, the TD2223 delivers an intuitive multi-touch experience with every tap, pinch, and swipe.
Operating System Support
This monitor supports the main operating systems being Windows, macOS, Android, Chrome OS, Linux and Raspberry Pi.
Simple and Safer Way to Interact
This monitor can be operated by stylus and gloved hands, which improves hygiene and is effective for selection, dragging, and drawing. What’s more, there is a magnetic pen placeholder on the base.
Anti-scratch Touchscreen
With a built-in 7H hardness screen, it’s resistant to surface damage caused by sharp objects.

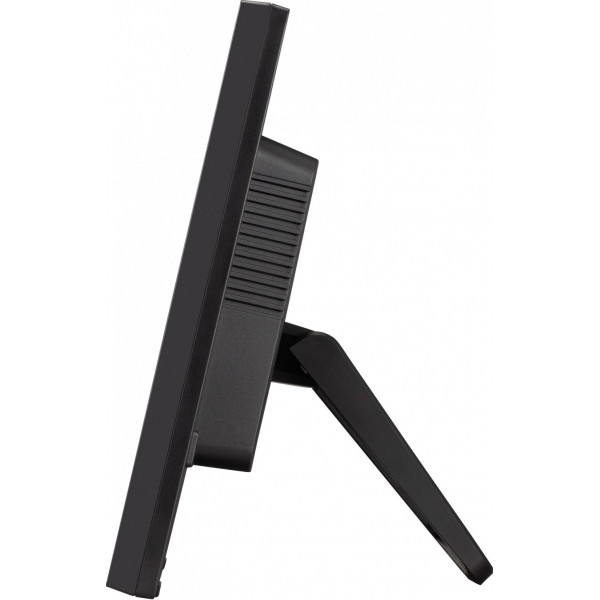

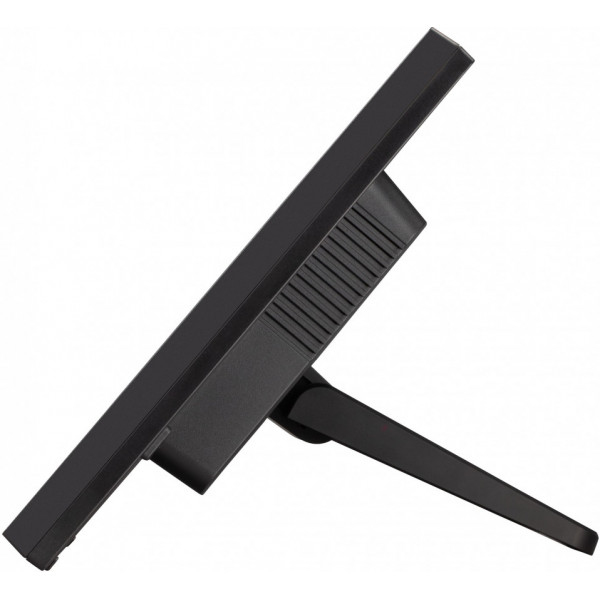

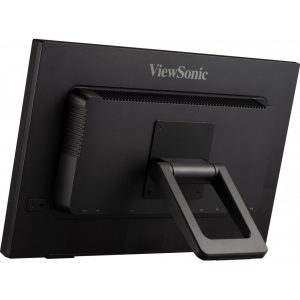

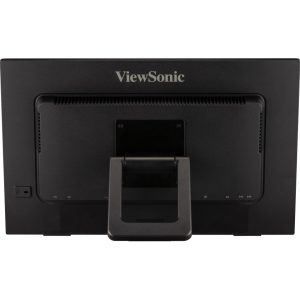

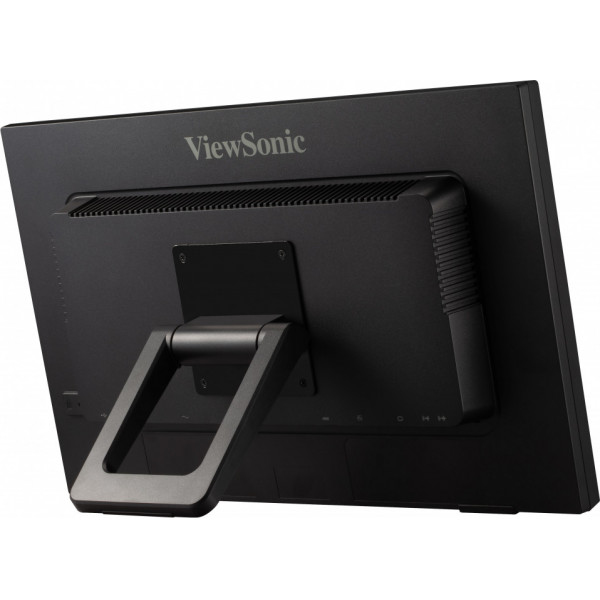

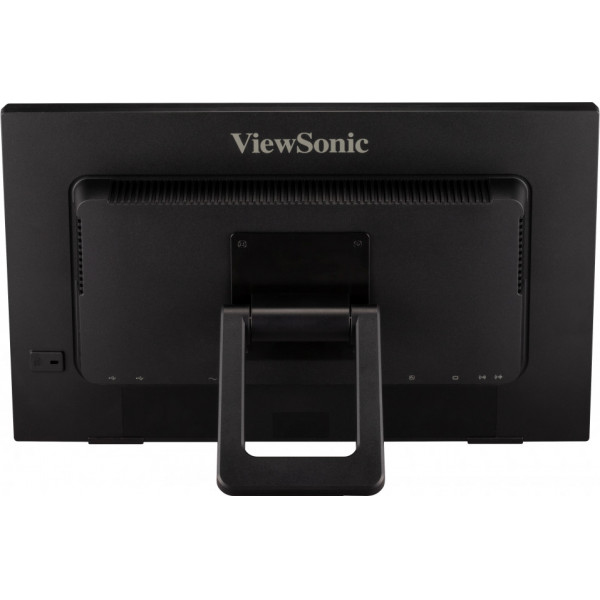

Adjustable Tilt
This monitor includes an adjustable tilt, which allows you to easily tilt back up to 40-degrees, making it a good fit for anyone.
Clear Images
This monitor features Full HD 1920×1080 resolution to benefit you with greater image details and more displayable on-screen contents.
Dual Integrated Speakers
With built-in 2-watt speakers, this monitor provides you a better audiovisual experience.
Enhanced Viewing Comfort
This monitor is built with Flicker-Free technology and a Blue Light Filter to reduce eye fatigue after a long day of use.
| Vægt | 4,0000 kg |
|---|---|
| Skærm diagonal | 54,6 cm (21.5") |
| Brand | Viewsonic |
| State | Default |
| Skærmopløsning | 1920 x 1080 pixel |
| Naturligt aspektforhold | 16:9 |
| Skærmteknologi | LED |
| Berøringsskærm | Ja |
| HD-type | Fuld HD |
| Paneltype | TN |
| Skærm form | Flad |
| Kontrastforhold (typisk) | 1000:1 |
| Maksimal opdateringshastighed | 75 Hz |
| Vis antal farver | 16,78 millioner farver |
| Responstid | 5 ms |
| Kontrastforhold (dynamisk) | 20000000:1 |
| Synsvinkel, horisontal | 170° |
| Synsvinkel, vertikal | 160° |
| Pixel pitch | 0,248 x 0,248 mm |
| Vertikalt scanningsområde | 50 – 75 Hz |
| NVIDIA G-SYNC | Ingen |
| AMD FreeSync | Ingen |
| Indbyggede højttaler(e) | Ja |
| Indbygget kamera | Ingen |
| Antal højttalere | 2 |
| Udgangseffekt (RMS) | 4 W |
| Produktfarve | Sort |
| Certificering | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, MX-CoC, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, PSE, CCC, China RoHS, China Energy Label, CECP |
| Indbygget USB-hub | Ja |
| HDMI | Ja |
| Udgang til hovedtelefoner | Ja |
| Antal USB type-A downstream-porte | 2 |
| Antal HDMI-porte | 1 |
| HDMI-version | 1.4 |
| Udgange til hovedtelefoner | 1 |
| Mikrofonindgang | Ja |
| Slot til kabellås | Ja |
| Panel montering grænseflade | 100 x 100 mm |
| Kabellåseslids type | Kensington |
| Hældningsvinkelområde | 22 – 38° |
| Strømforbrug (typisk) | 12,5 W |
| Strømforbrug (standby) | 0,5 W |
| Stativ inkluderet | Ja |
| Kabler inkluderet | Vekselstrøm, Lyd (3,5 mm), HDMI, USB Type-A til USB Type-B |
| Bredde (med stativ) | 521 mm |
| Dybde (med stativ) | 101 mm |
| Højde (med stativ) | 334 mm |
| Vægt (med stativ) | 4,5 kg |
| Bredde (uden stativ) | 521 mm |
| Dybde (uden stativ) | 61 mm |
| Højde (uden stativ) | 318 mm |
| Vægt (uden stativ) | 3,9 kg |
| Pakkebredde | 580 mm |
| Pakkehøjde | 405 mm |
| Pakkevægt | 6 kg |
| Bæredygtighedscertifikater | ENERGY STAR |
| Harmoniseret systemkode (HS) | 85285210 |
| Horisontal scanningsområde | 24 – 82 kHz |
| Antal upstream-porte | 1 |
| Antal VGA-porte (D-sub) | 1 |
| DVI-port | Ja |
| Vekselstrømsindgangsspænding | 100-240 V |
| Vekselstrømsindgangsfrekvens | 50 – 60 Hz |
| Driftstemperatur (T-T) | 0 – 40 °C |
| Relativ luftfugtighed ved drift (H-H) | 20 – 90% |
| USB upstream port type | USB Type-B |
| Energieffektivitetsklasse (SDR) | E |
| Energiforbrug (SDR) pr. 1000 timer | 14 kWh |
| Pakkedybde | 164 mm |
| Strømforbrug (maks.) | 14 W |
| Indbygget mikrofon | Ingen |
| Strømforsyningstype | Vekselstrøm |
| Antal DVI-D-porte | 1 |
| Berøringsskærm teknologi | Infrarød |
| Berøringsteknologi | Multi-touch |
| Antal simultane touchpunkter | 10 |
| Skærmens lysstyrke | 250 cd/m² |
| Kan monteres på væggen | Ja |
| Berøringsskærmstype | Multibruger |
| Glas tykkelse | 2 mm |
| Hældningsindstilling | Ja |
| European Product Registry for Energy Labelling (EPREL) code | 368718 |
| Compliance certificates | REACH, RoHS |
