Laptop Docking Station | Mac & Windows® | 3x USB Ports | 10G USB-C | 5K | 85W PD
This compact Thunderbolt™ 3 dock is built for productivity, transforming your Thunderbolt 3 laptop into a dual-4K workstation with up to 40Gbps of throughput. The high- performance dock features a PCIe M.2 SSD slot for enhanced data storage, three USB ports, an SD card reader, a Gigabit Ethernet port, a downstream Thunderbolt 3 port for daisy-chaining, plus 85W Power Delivery.
Create a Dual-4K 60Hz Workstation
Great for Ultra HD tasks, the dual-4K docking station supports 4K resolution on two monitors:
• 1x DisplayPort + 1x Thunderbolt 3 USB-C display (4096 x 2160p @60Hz)
• USB-C to DP cable or USB-C video adapter may be required
• 1x 5K monitor at 60H
Easy Installation & Deployment

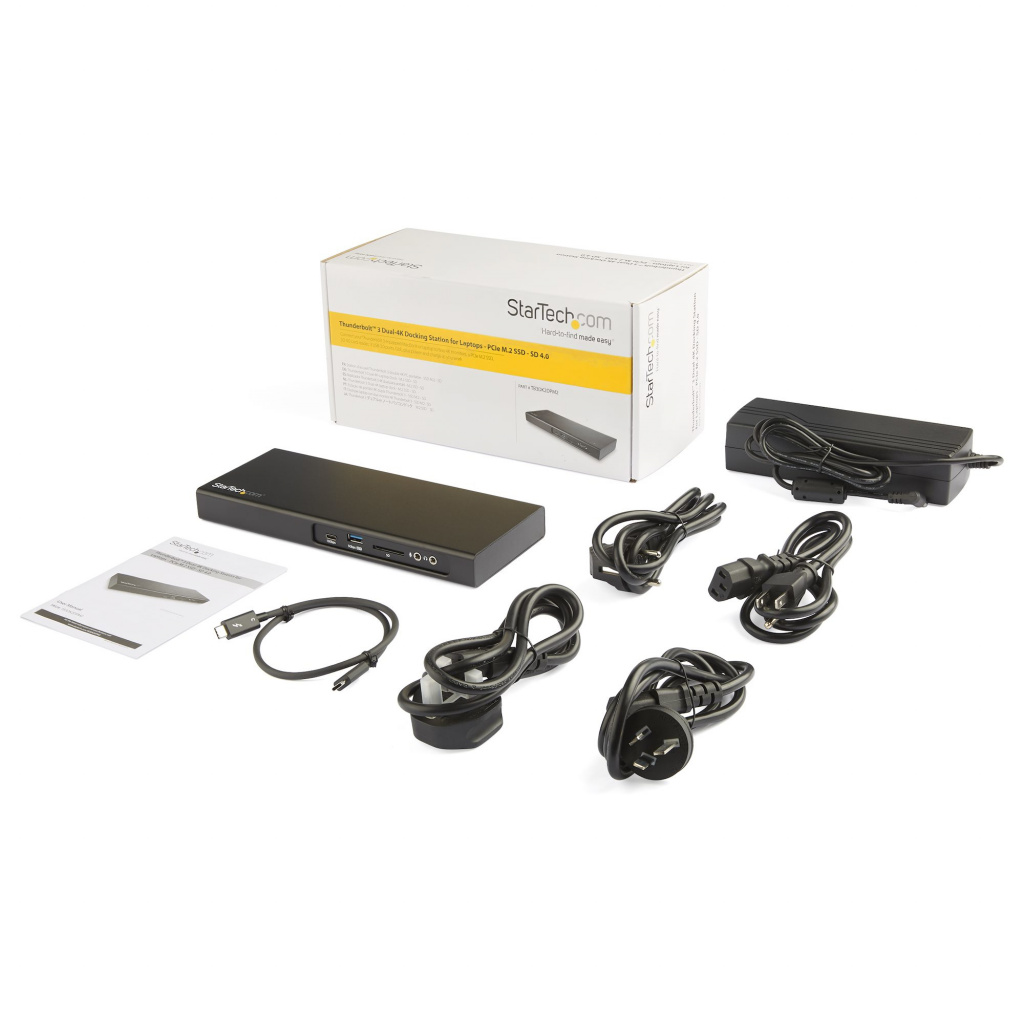

Simply connect the TB3 dock to your laptop with included TB3 cable and start working immediately. No time-consuming driver installations are required.

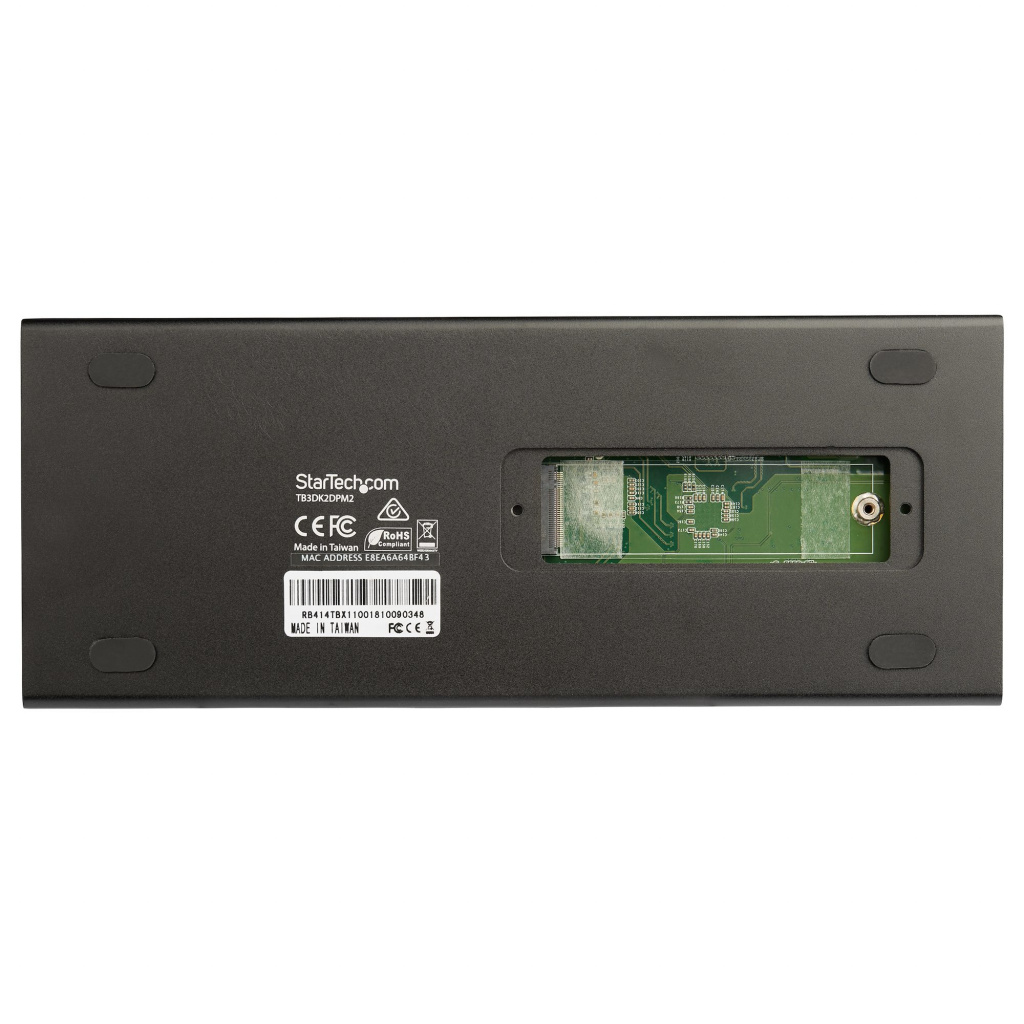

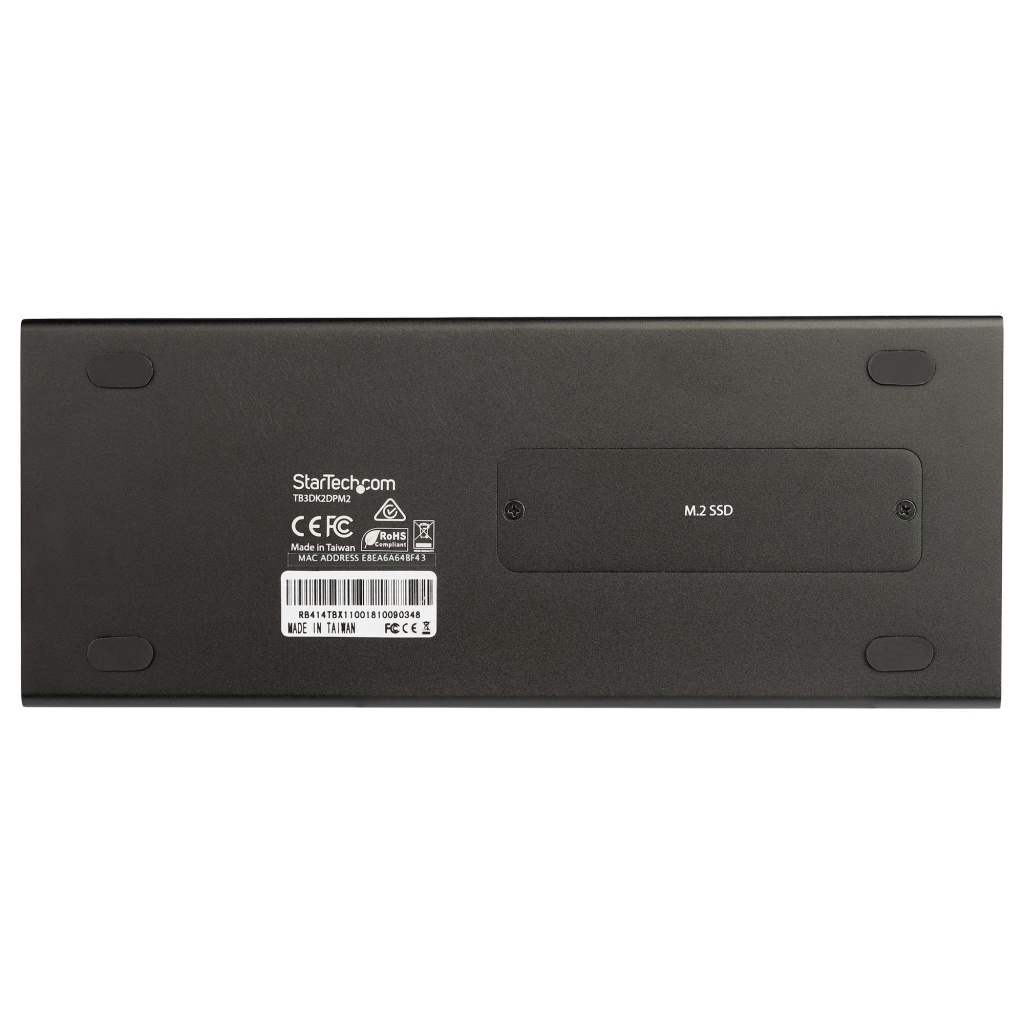

Add Data Storage
The Thunderbolt 3 dock’s built-in PCIe M.2 SSD enclosure supports transfer speeds up to 1500MB/s with the addition of a PCIe M.2 SSD for ultra-fast data access, enhanced storage, and application buffering and caching.

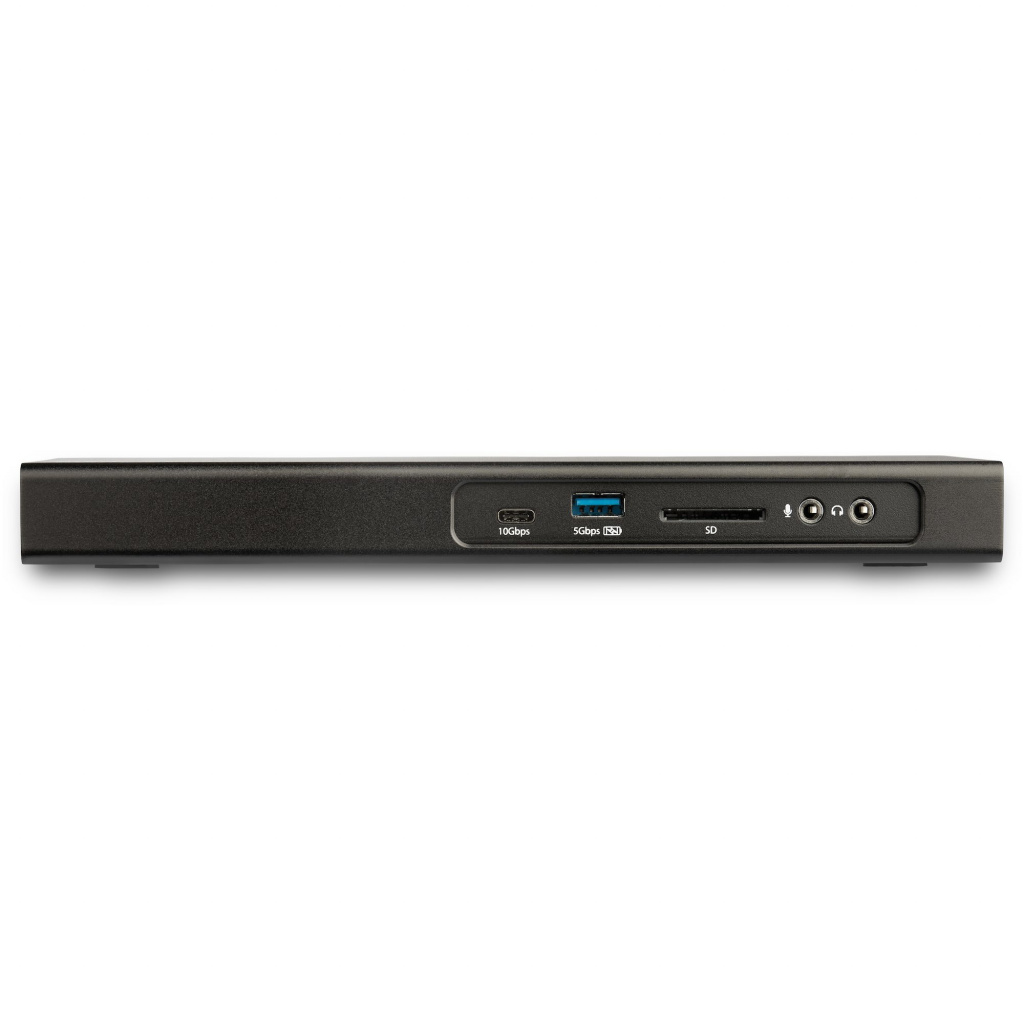

Fast SD Card Access
Transfer photos or videos from your SD cards to your Thunderbolt 3 laptop. The dock’s SD slot supports SD 4.0 and UHS-II with transfer speeds up to 270MB/s.

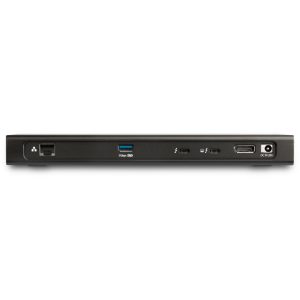

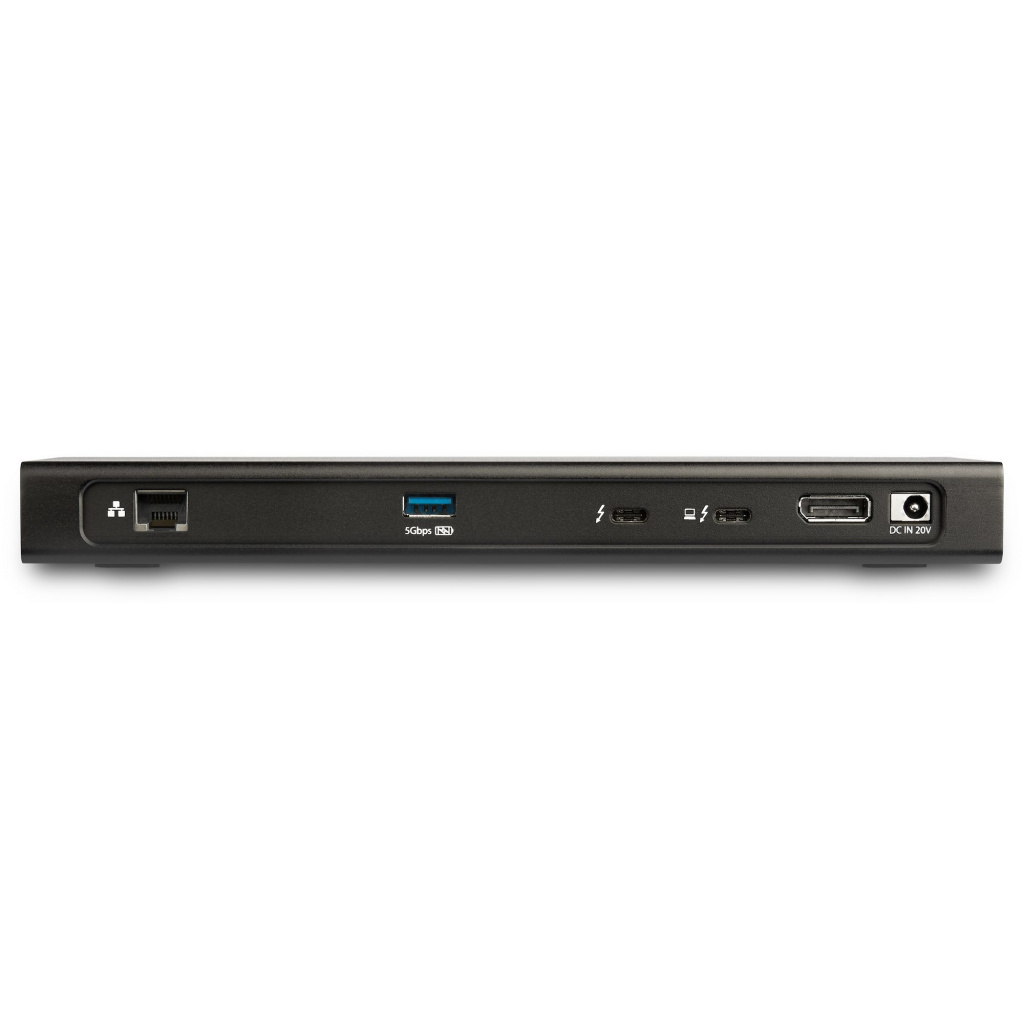

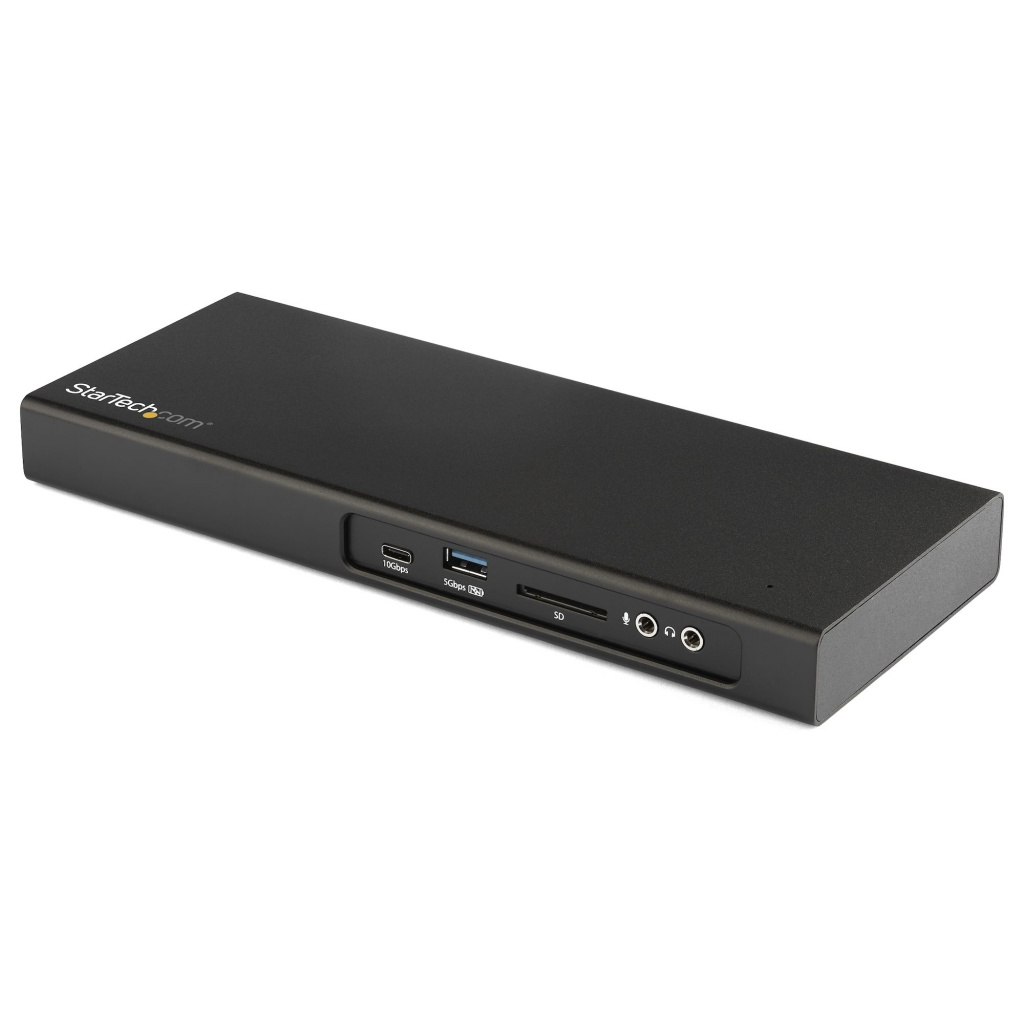

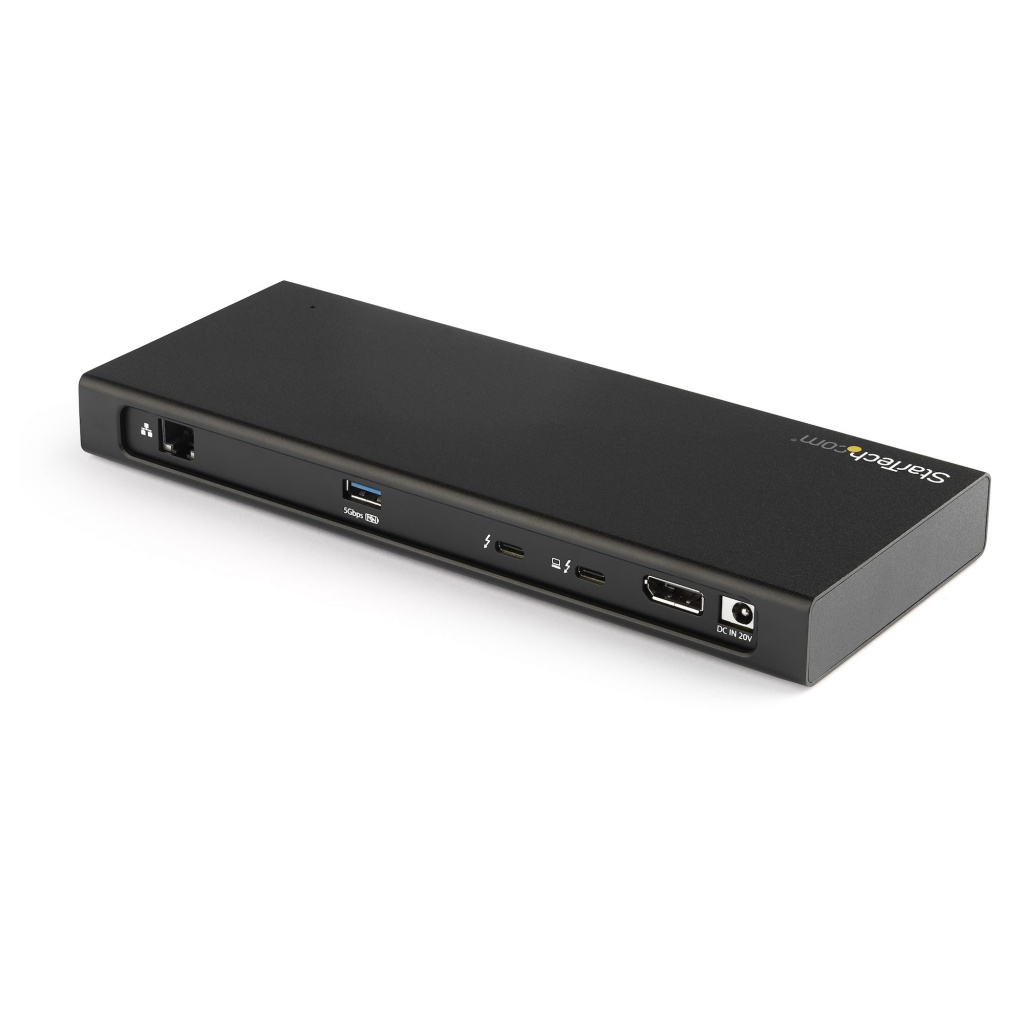

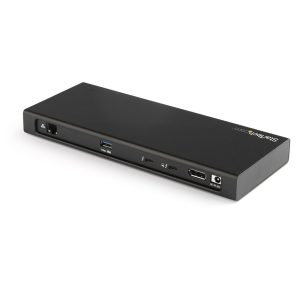

Connect Your Devices
Connect peripherals with three USB ports – one USB-C port (10G) with up to 3A charging and two USB-A ports (5G) with Fast-Charge and Sync.
The GbE port (with PXE Boot and WoL support) provides reliable wired network access.
85W Power Delivery
Using a single cable, the Thunderbolt 3 dock provides up to 85W of Power Delivery charging.
Enhance Productivity and Device Management with the StarTech.com Connectivity Tools Application
Developed to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:
•
Advanced Windows Layout Utility : To setup and save custom windows layouts.
•
Mac Address Pass-Through Utility : To improve network security.
•
USB Event Monitoring Utility : To track and log connected USB devices
•
Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.
For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-Tools
The TAA compliant TB3DK2DPM2 is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Vægt | 0,0000 kg |
|---|---|
| Forbindelsesteknologi | Ledningsført |
| Brand | StarTech.com |
| State | Default |
| Værtsgrænseflade | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Mikrofonindgang | Ja |
| Antal DisplayPorts | 1 |
| Ethernet LAN | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| Produktfarve | Sort |
| Indbygget kortlæser | Ja |
| Maksimal digital opløsning | 5120 x 2880 pixel |
| Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro |
| Understøttede Mac-operativsystemer | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura |
| Bredde | 239 mm |
| Dybde | 95 mm |
| Højde | 25 mm |
| Vægt | 780 g |
| Harmoniseret systemkode (HS) | 84733020 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| USB strømforsyning | Ja |
| Fuld duplex | Ja |
| Kompatible hukommelseskort | MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC |
| Dataoverførselshastighed | 40 Gbit/sek. |
| Understøtter UASP | Ja |
| Husmateriale | Aluminium |
| Strømforbrug (typisk) | 170 W |
| Driftstemperatur (T-T) | 5 – 35 °C |
| Opbevaringstemperatur (T-T) | -20 – 50 °C |
| Relativ luftfugtighed ved drift (H-H) | 20 – 80% |
| Pakkebredde | 138 mm |
| Pakkedybde | 288 mm |
| Pakkehøjde | 125 mm |
| Pakkevægt | 1,4 kg |
| Produkter pr. hovedkasse (udvendigt) | 4 stk |
| Hovedkassens bredde (udvendigt) | 270 mm |
| Hovedkassens længde (udvendigt) | 310 mm |
| Hovedkassen højde (udvendigt) | 326 mm |
| Kabellængde | 0,5 m |
| Chipsæt | Intel – Alpine Ridge DP, ASMedia ASM1142, Realtek RTS5411, Realtek RTS5329, C-Media – CM6533, Intel i210AT |
| USB strømforsyning op til | 85 W |
| Brugervejledning | Ja |
| Udgange til hovedtelefoner | 1 |
| DC-in-stik | Ja |
| Udgangsspænding | 20 V |
| Certificering | FCC, CE, REACH |
| Udgangsstrøm | 7,5 A |
| Vekselstrømsindgangsspænding | 100 – 240 V |
| Netværksstandarder | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Auto MDI/MDI-X | Ja |
| Tilslutning af hovedtelefoner | 3,5 mm |
| AC-adapter inkluderet | Ja |
| Kabler inkluderet | Thunderbolt |
| Indgangsstrøm | 0.25 A |
| Strømstiktype | Type N |
| Kompatible strømplug typer | AU, EU, JP, UK, US |
| Antal mikrofon-indgange | 1 |
| Antal Thunderbolt 3-porte | 2 |
| Understøttede SSD-størrelser | M.2 |
| Compliance certificates | RoHS |
