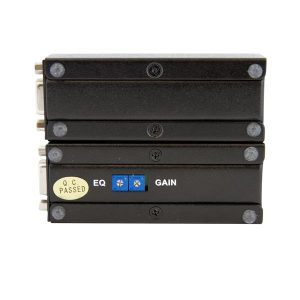

Extend a VGA signal to a remote display using Cat5 cabling
The ST121UTPEP VGA Video Extender over Cat5 – Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5 or better UTP cable, terminated with RJ45 connectors).
Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application.
To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
| Vægt | 0,0000 kg |
|---|---|
| Type | AV sender & modtager |
| Brand | StarTech.com |
| State | Default |
| Maksimal opløsning | 1920 x 1200 pixel |
| Understøttede kabeltyper | Cat5 |
| Maksimal overførselsafstand | 80 m |
| Understøttede grafikopløsninger | 1280 x 1024 (SXGA), 1600 x 1200 (UXGA), 1920 x 1200 (WUXGA) |
| Produktfarve | Sort |
| Certificering | CE, FCC, REACH, TAA |
| RJ-45 indgangs-porte | 1 |
| RJ-45 udgangs-porte | 1 |
| Udgangsstrøm | 0,6 A |
| Strømstiktype | Type M |
| Bredde | 138 mm |
| Dybde | 100 mm |
| Højde | 25 mm |
| Vægt | 263 g |
| Pakkebredde | 140 mm |
| Pakkedybde | 315 mm |
| Pakkehøjde | 60 mm |
| Pakkevægt | 795 g |
| Inkluderede strømstik typer | AU, EU, NA, UK |
| Materiale | Aluminium |
| Daisy kæde | Ingen |
| DC-in-stik | Ja |
| Driftsspænding | 12 V |
| Strømforbrug (typisk) | 7,2 W |
| Ekstern strømadapter | Ja |
| AC-adapter inkluderet | Ja |
| Kabler inkluderet | VGA |
| Brugervejledning | Ja |
| Monteringsbeslag inkluderet | Ja |
| Plug and play | Ja |
| VGA (D-Sub) indgangsporte | 1 |
| VGA (D-Sub) udgangsporte | 1 |
| Compliance certificates | RoHS |
