Extend an HDMI® audio and video signal over optical fiber at resolutions of up to 4K 60Hz with 7.1 channel audio

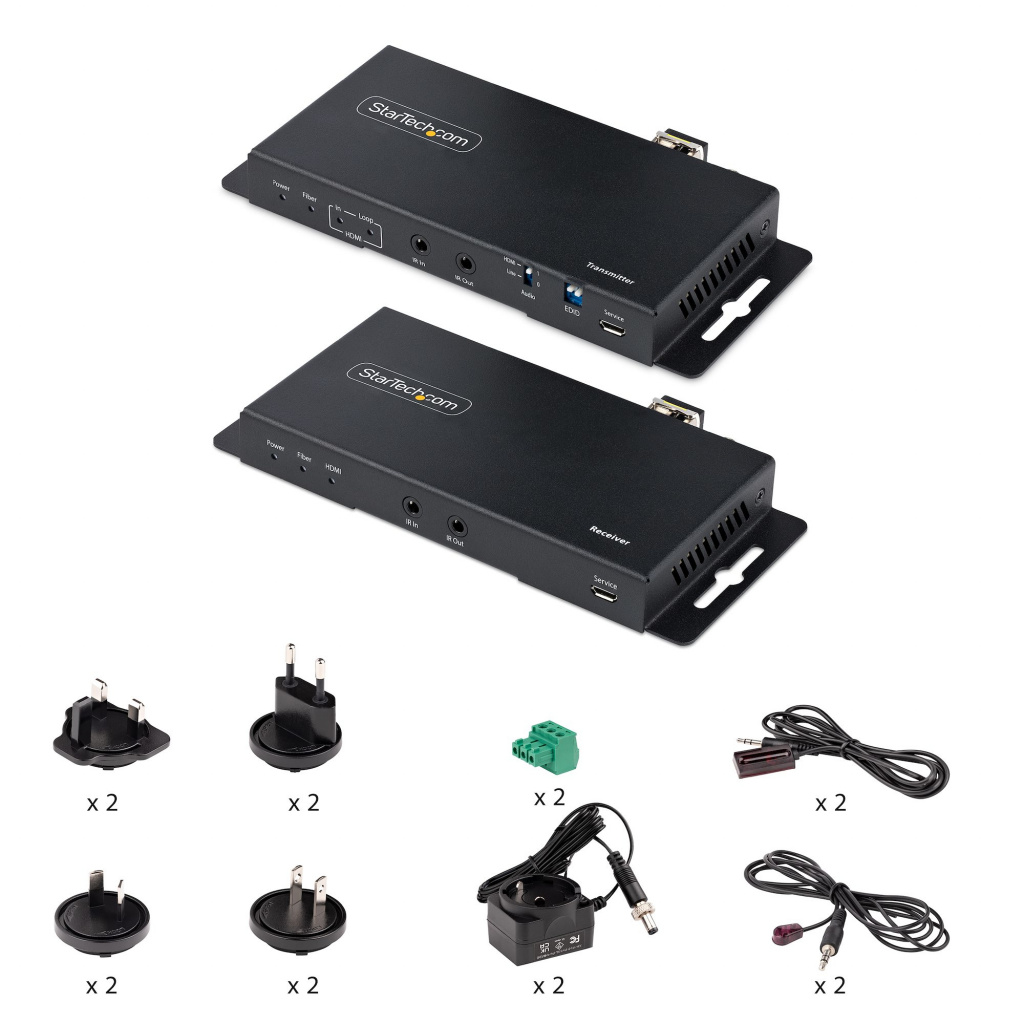

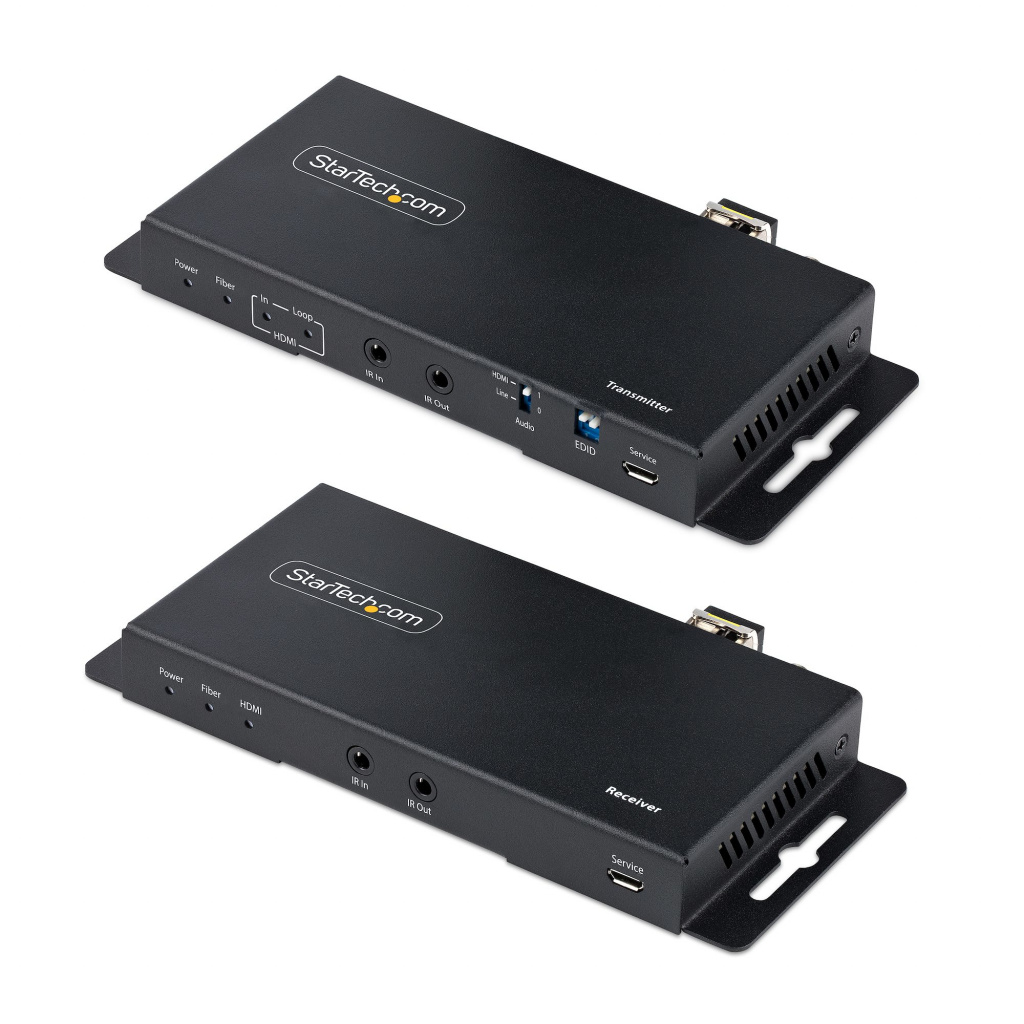

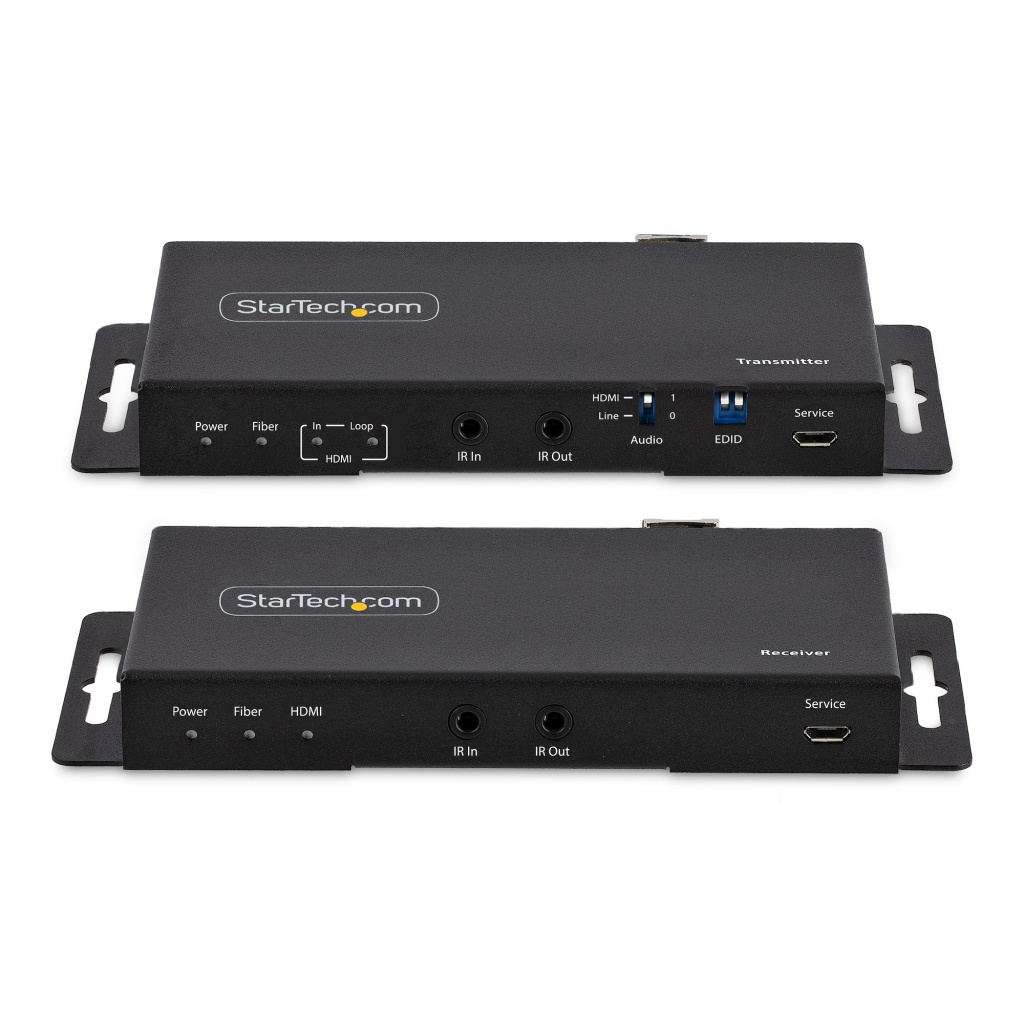

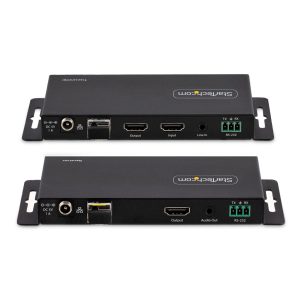

This HDMI over Fiber Extender Kit extends an Ultra HD (UHD) 4K 60Hz HDMI signal, with 7.1ch audio, up to 3300ft over Single Strand LC fiber cable. This converter kit includes both the transmitter and receiver for a complete end-to-end solution.
Works with Single Mode or Multimode Fiber
This HDMI extender works over Single Mode or Multimode fiber cabling, allowing the utilization of existing fiber infrastructure. The single strand optical fiber provides full-bandwidth video while being immune to Electro-Magnetic Interference (EMI), making it ideal for use in challenging environments.
Fiber Type
Single Mode
Multi Mode
Supported Distance
Up to 3300ft (1000m)
Up to 1000ft (300m)
Audio Capabilities
Audio extraction functionality enables playback of the HDMI source audio via the 3.5mm audio output on the receiver unit. Simultaneous audio playback across both HDMI and 3.5mm outputs is supported, providing flexibility for a variety of audio setups.
Hassle-Free Installation

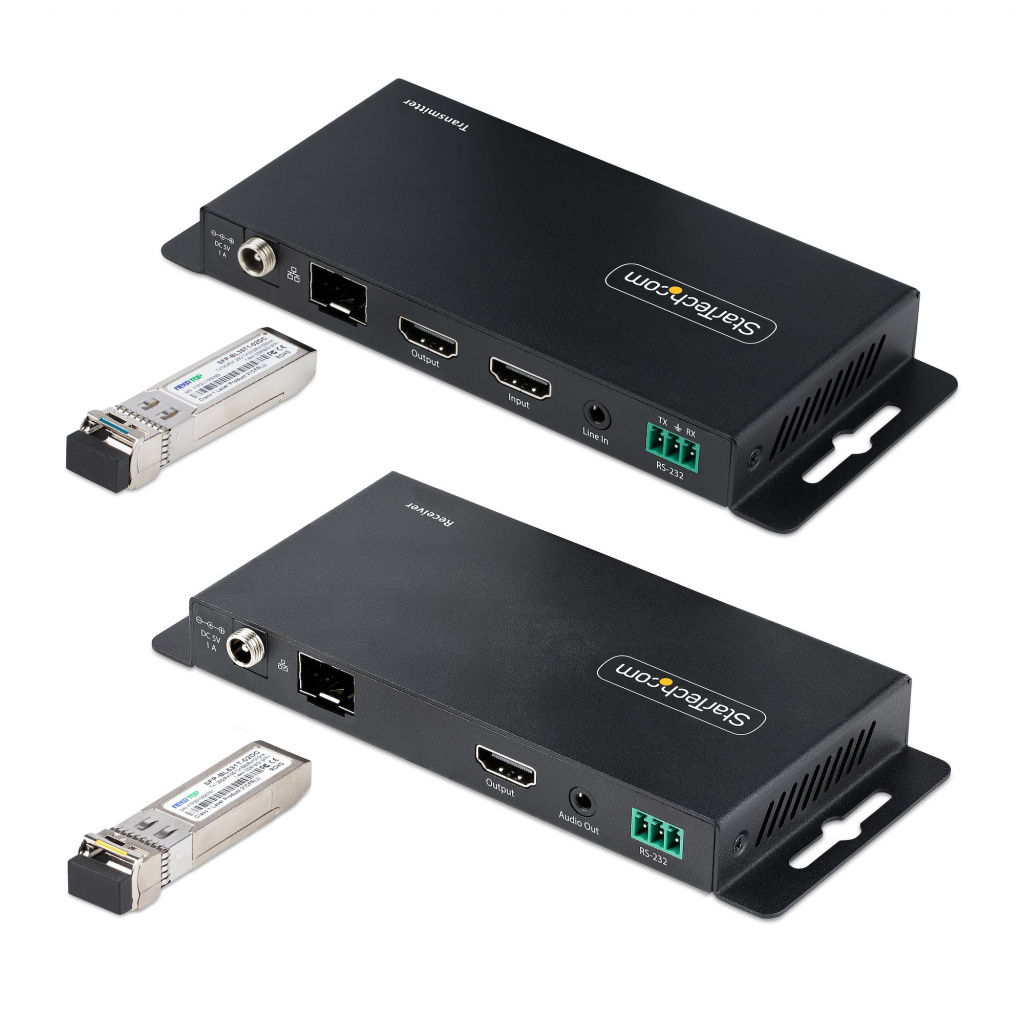

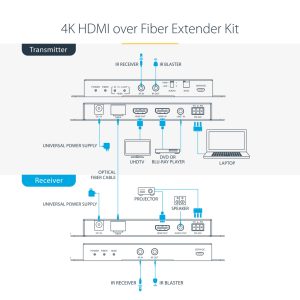

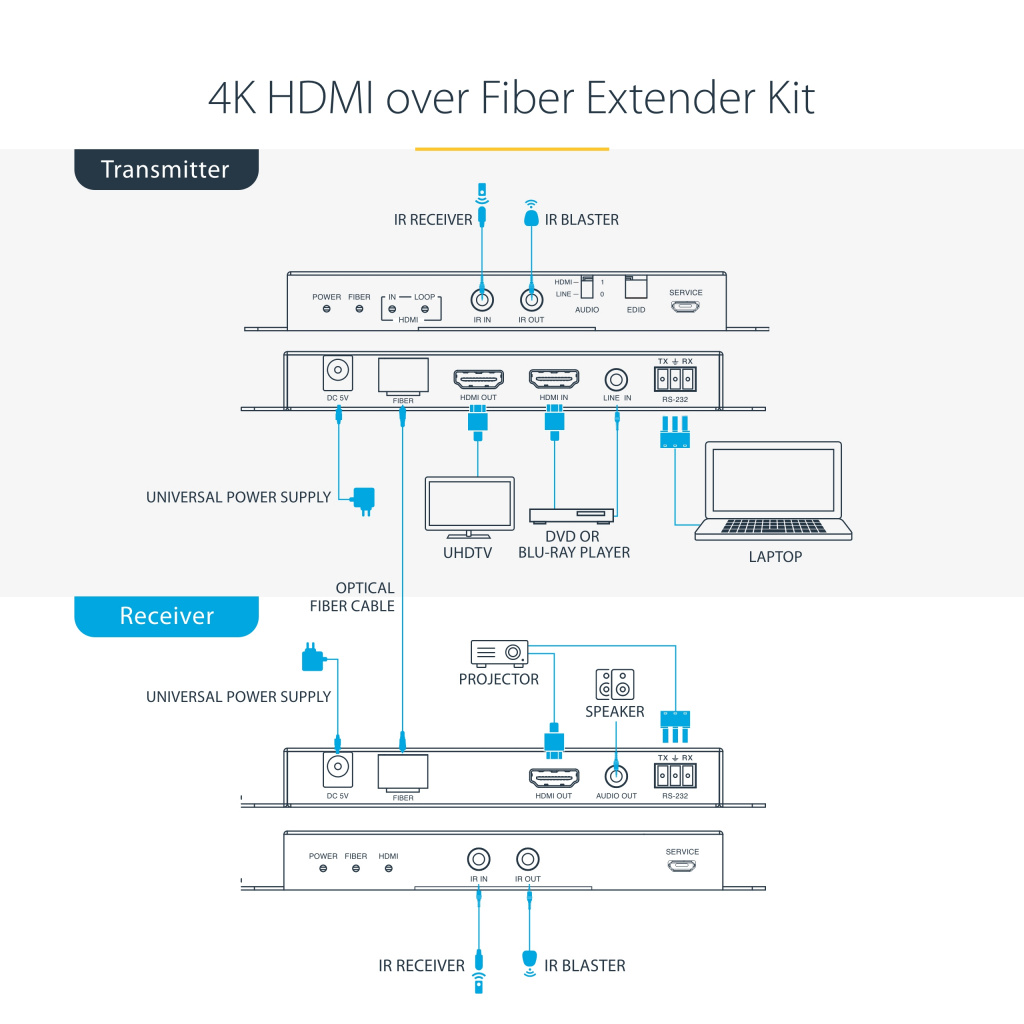

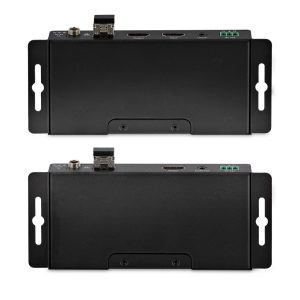

The point-to-point connection, using LC single strand fiber between the A/V transmitter and receiver, eliminates the need for IP configuration, drivers, or network equipment. The HDMI extension kit features a durable steel housing with built-in mounting brackets, allowing for a tidy and secure installation.

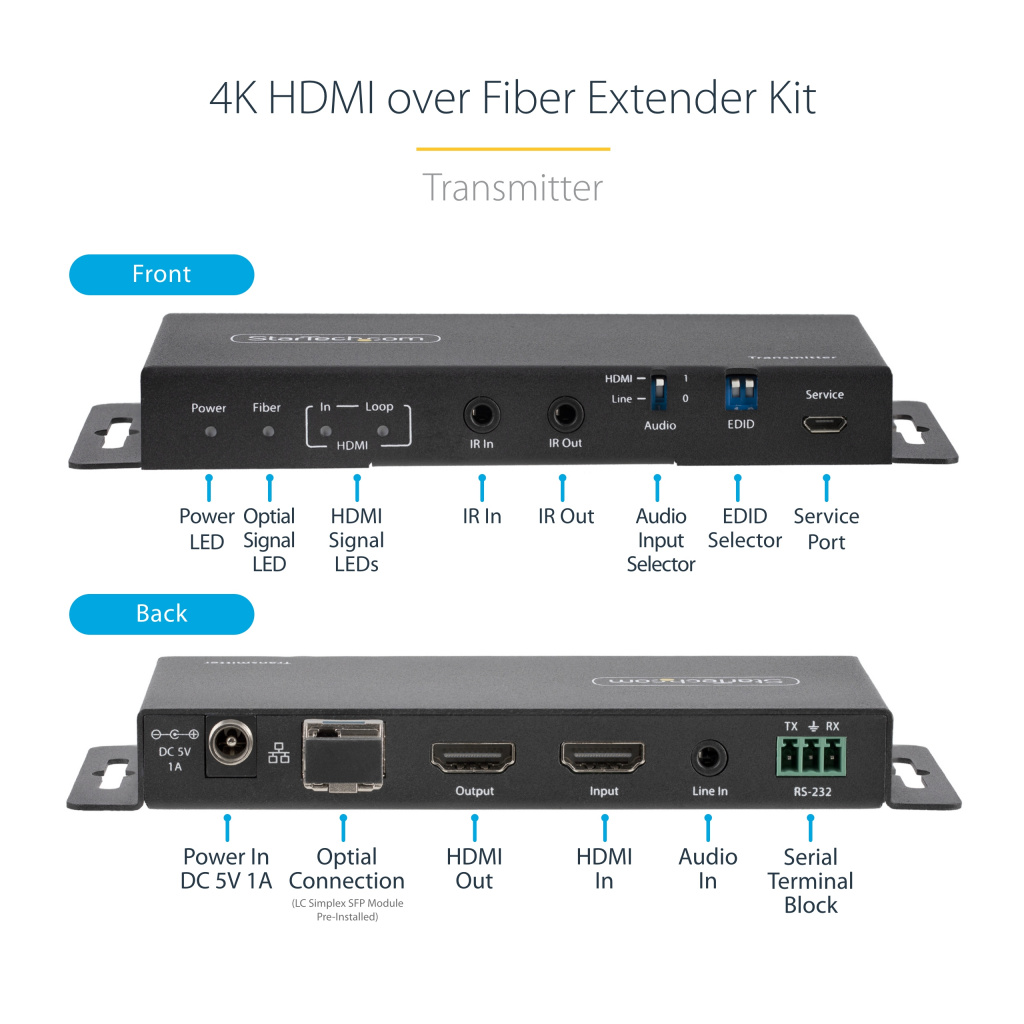

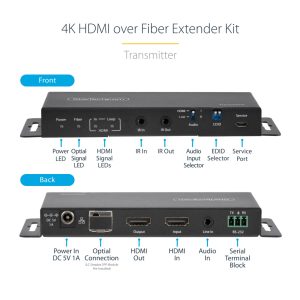

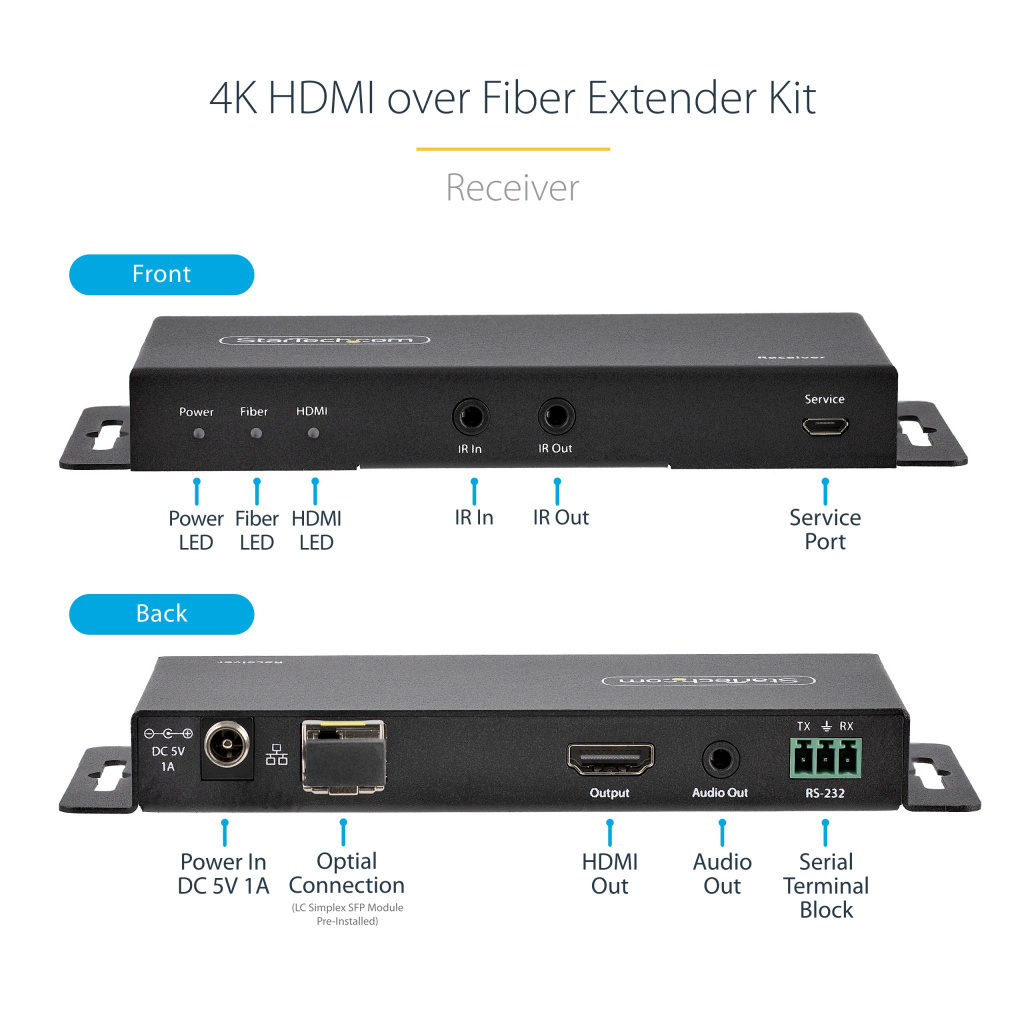

The HDMI over Fiber kit features a local HDMI output and IR/serial extension for a convenient and versatile setup. Ideal for setups that include projectors with RS232 controls, or A/V equipment with IR remote controls. The enhanced EDID Copy functions ensure the correct display information is used during the setup process. LED indicators allow for status monitoring. 8kV air and 6kV contact Electrostatic Discharge (ESD) protection ensures the safety and longevity of the equipment.
This product is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance.
The StarTech.com Advantage
| Vægt | 0,0000 kg |
|---|---|
| Type | AV sender & modtager |
| Brand | StarTech.com |
| State | Default |
| Maksimal opløsning | 4096 x 2160 pixel |
| Maksimal overførselsafstand | 1000 m |
| Maksimal opdateringshastighed | 60 Hz |
| Lyd-output kanaler | 7.1 kanaler |
| HDCP | Ja |
| HDCP-version | 2.2 |
| Produktfarve | Sort |
| Forbindelsesteknologi | Ledningsført |
| HSMI-indgang | 1 |
| Antal HDMI-udgange | 2 |
| HDMI-version | 2.1 |
| Vekselstrømsindgangsspænding | 100 – 240 V |
| Indgangsstrøm | 0.35 A |
| Udgangsstrøm | 1 A |
| Strømstiktype | Type M |
| Driftstemperatur (T-T) | 0 – 40 °C |
| Opbevaringstemperatur (T-T) | -20 – 60 °C |
| Relativ luftfugtighed ved drift (H-H) | 20 – 90% |

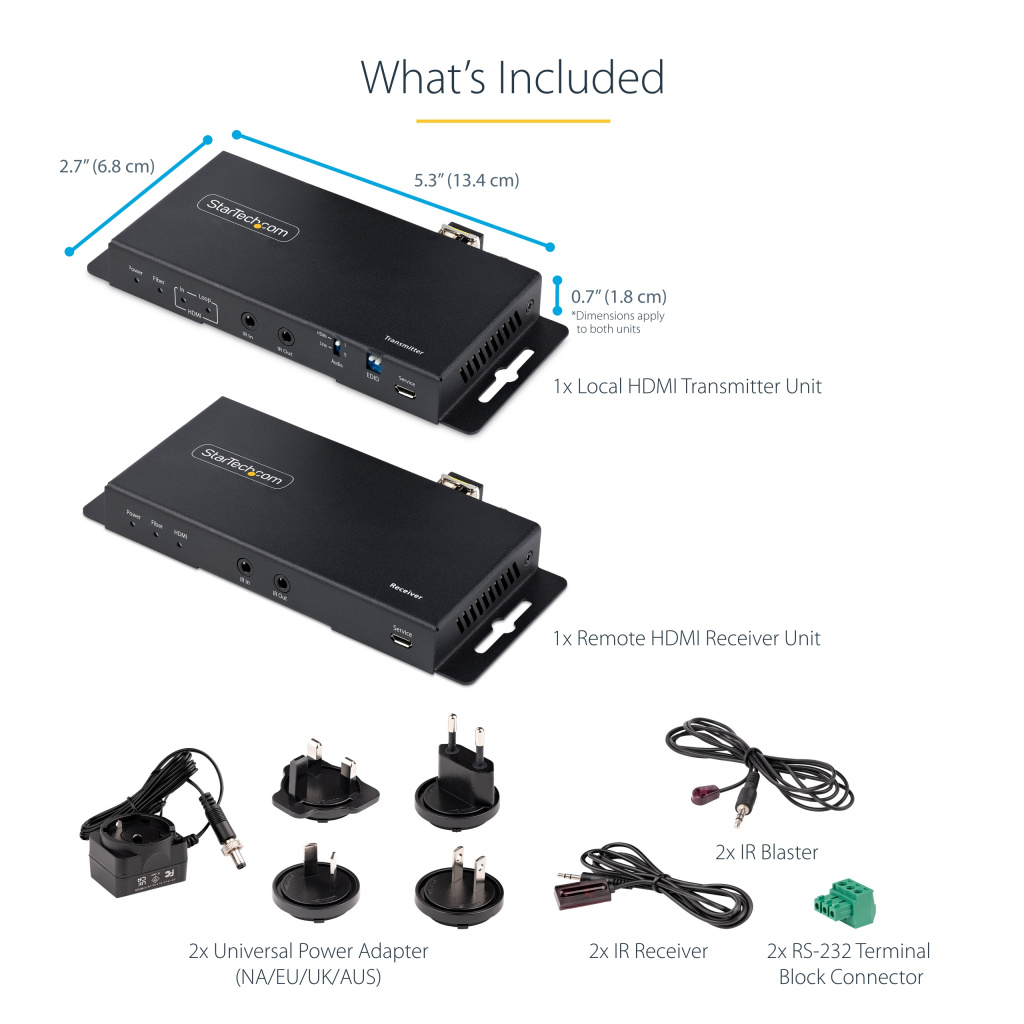

| Bredde | 68 mm |
| Dybde | 134 mm |
| Højde | 18 mm |
| Vægt | 280 g |
| Pakkebredde | 200 mm |
| Pakkedybde | 300 mm |
| Pakkehøjde | 60 mm |
| Pakkevægt | 1 kg |
| Hurtig start guide | Ja |
| IR blaster inkluderet | Ja |
| IR-modtager inkluderet | Ja |
| Hovedkassens bredde (udvendigt) | 325 mm |
| Hovedkassens længde (udvendigt) | 530 mm |
| Hovedkassen højde (udvendigt) | 402 mm |
| Produkter pr. hovedkasse (udvendigt) | 20 stk |
| LED-indikatorer | Aktivitet, Strøm |
| DC-in-stik | Ja |
| Driftsspænding | 5 V |
| AC-adapter inkluderet | Ja |
| Antal USB-porte | 2 |
| USB-stik type | Micro-USB B |
| Båndbredde | 18 Gbit/sek. |
| Antal serielle porte | 2 |
| Seriel grænsefladetype | RS-232 |
| Fjernbetjening (IR) indgang | 2 |
| Fjernbetjening (IR) udgang | 2 |
| Overholdelse af bæredygtighed | Ja |
| High Dynamic Range (HDR) understøttet | Ja |
| Elektrostatisk udledningsbeskyttelse (ESD) | Ja |
| Elektrostatisk afladning association (ESD) | 8 kV |
| Baud hastighed | 115,2 Kbit/s |
| Fiber optisk strømstik | LC |
| Chipsæt | SiFotonics SD1503/SD1513 |
| HDR-teknologi (High Dynamic Range) | High Dynamic Range 10 (HDR10) |
| Fibertilstandsstruktur | Multitilstand, Enkeltilstand |
| Udvidet display identifikationsdata (EDID) | Ja |
| Infrarødt (IR) frekvens rækkevidde | 20 – 60 kHz |
| Fiberkanal porte | 2 |
| Linie-udgang (RCA) | 1 |
| Line-in | Ja |
| Compliance certificates | CE, RoHS |
