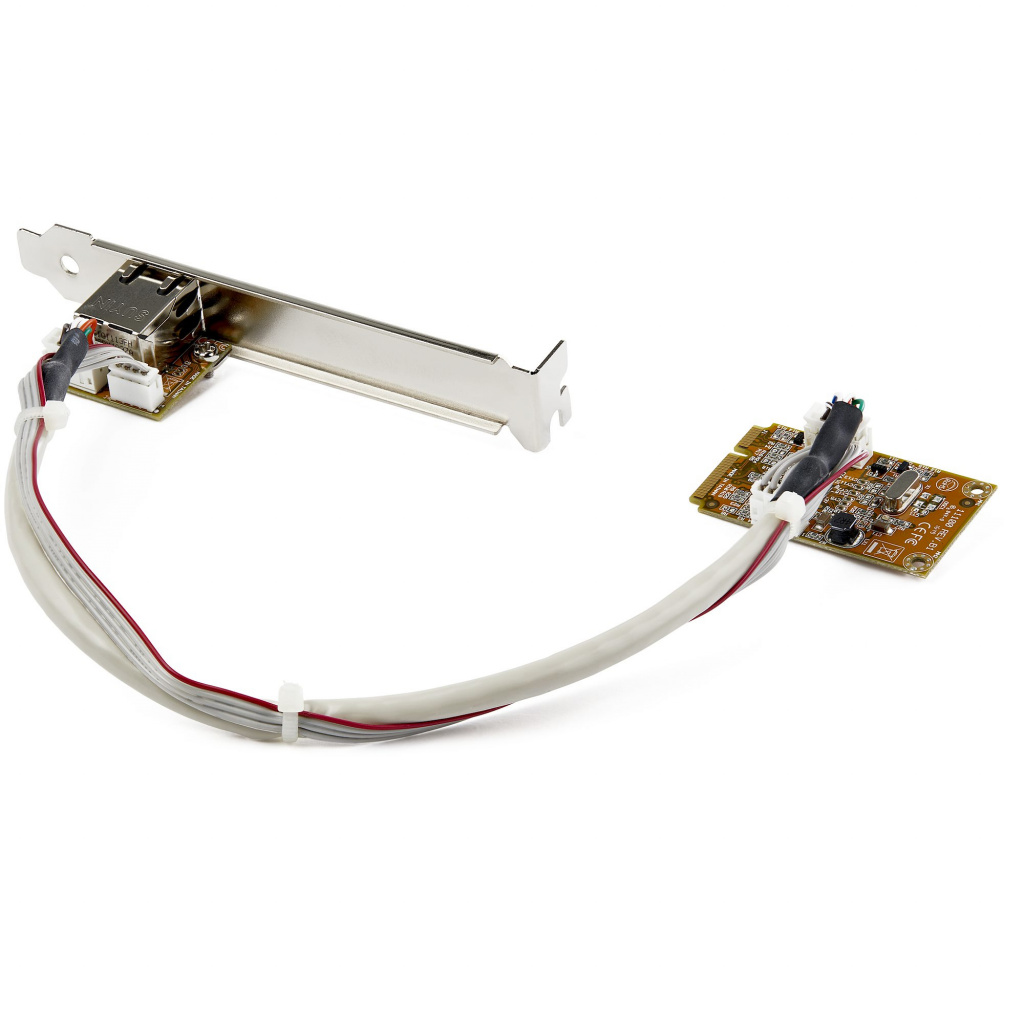

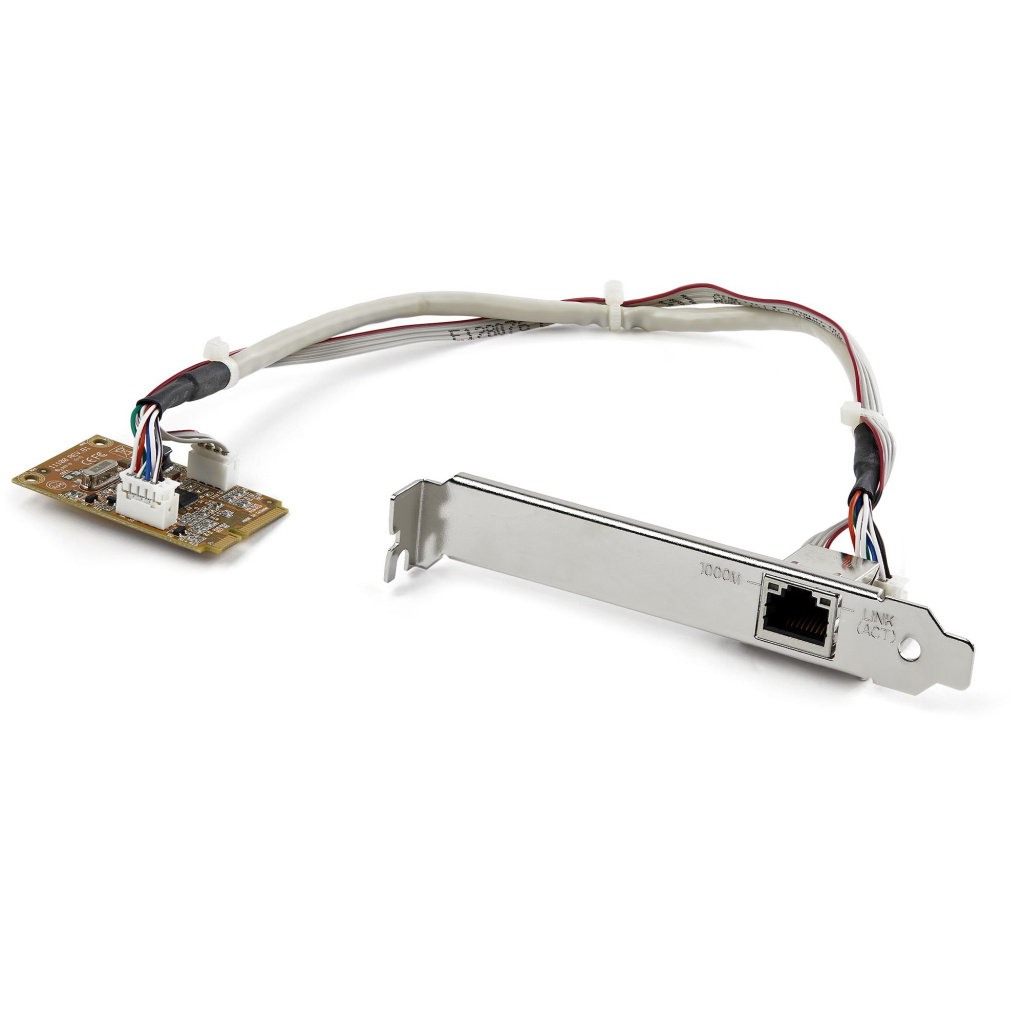

The ST1000SMPEX Mini PCI Express Gigabit Network Adapter Card adds 1000Mbps network connectivity to a Mini PCI Express (PCI Express Mini Card, Mini PCIe) enabled computer system, such as Mini-ITX motherboards.
Supporting features such as NDIS5 checksum and large send offload for lower CPU utilization, Wake-on-LAN (WOL) and Remote Wake-up power management, jumbo frames and VLAN tagging, this Mini PCI Express Gigabit Adapter is ready to handle a wide variety of scenarios.

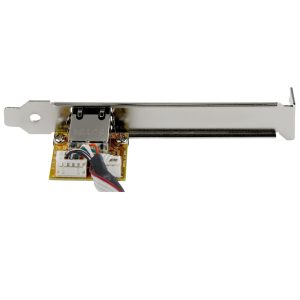

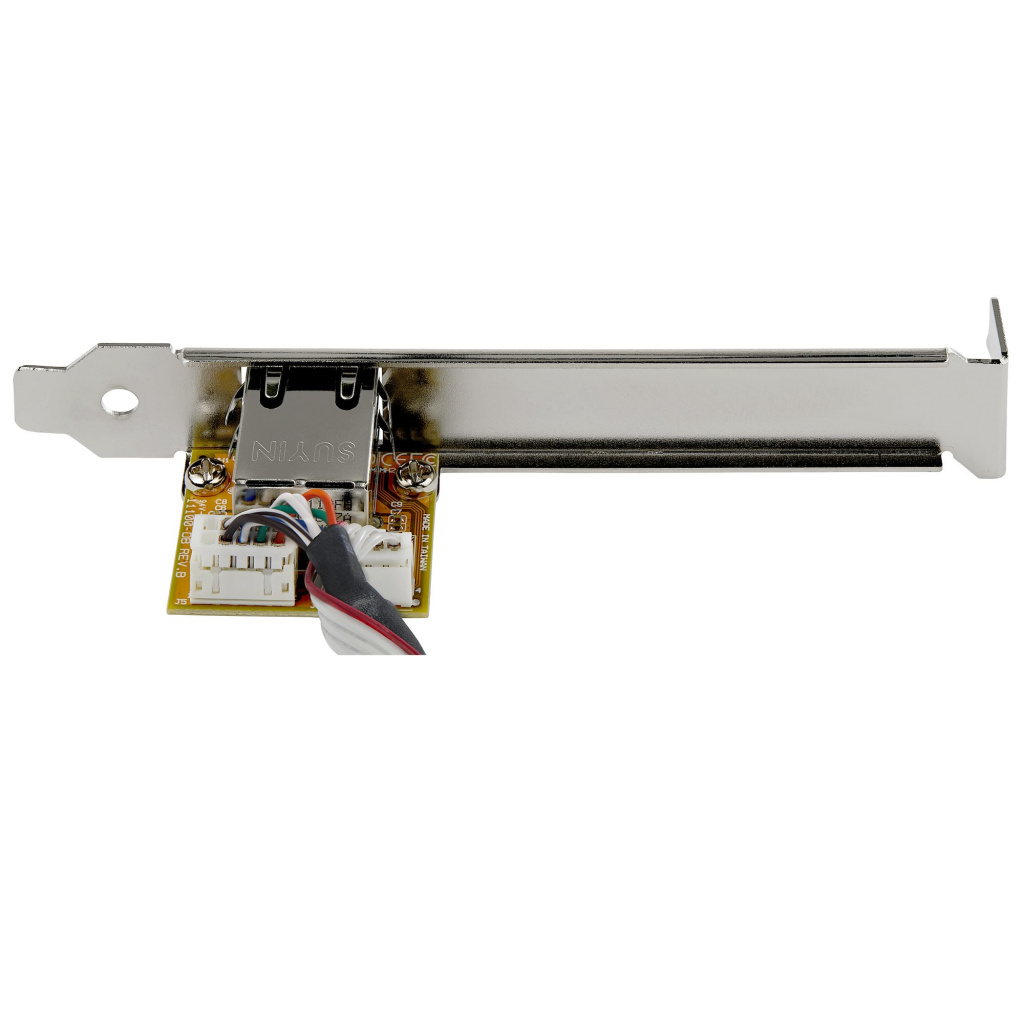

Perfect for small form factor or embedded systems that originally lack Gigabit networking capability, or for adding a network connection without taking up a full-sized PCI Express slots, this high quality Mini PCIe Network Adapter includes a low profile/half-height bracket for additional installation options.
The StarTech.com Advantage
– Full length mini PCI Express (PCI Express Mini Card, Mini PCIe) form factor fits in many Mini-ITX or embedded systems
– Built-in NDIS5 Checksum and Large Send Offload support and Jumbo Frames minimize system resource usage
| Vægt | 0,0000 kg |
|---|---|
| Forbindelsesteknologi | Ledningsført |
| Brand | StarTech.com |
| State | Default |
| Værtsgrænseflade | Mini PCI Express |
| Grænseflade | Ethernet |
| Ethernet LAN-porte (RJ-45) | 1 |
| Maksimal dataoverførselshastighed | 1000 Mbit/s |
| Netværksstandarder | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Ja |
| Ethernet LAN-datahastigheder | 10,100,1000 Mbit/s |
| Jumbo Frames support | Ja |
| Jumbo rammer | 9000 |
| VLAN mærkning | Ja |
| Intern | Ja |
| LED-indikatorer | Aktivitet, Link |
| Driftstemperatur (T-T) | 0 – 55 °C |
| Opbevaringstemperatur (T-T) | -20 – 85 °C |
| Bredde | 30 mm |
| Dybde | 51 mm |
| Højde | 8 mm |
| Flowkontrol support | Ja |
| Harmoniseret systemkode (HS) | 85176990 |

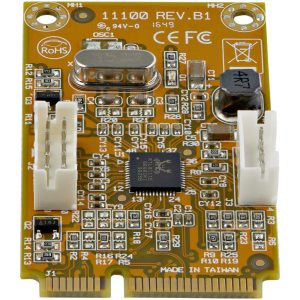

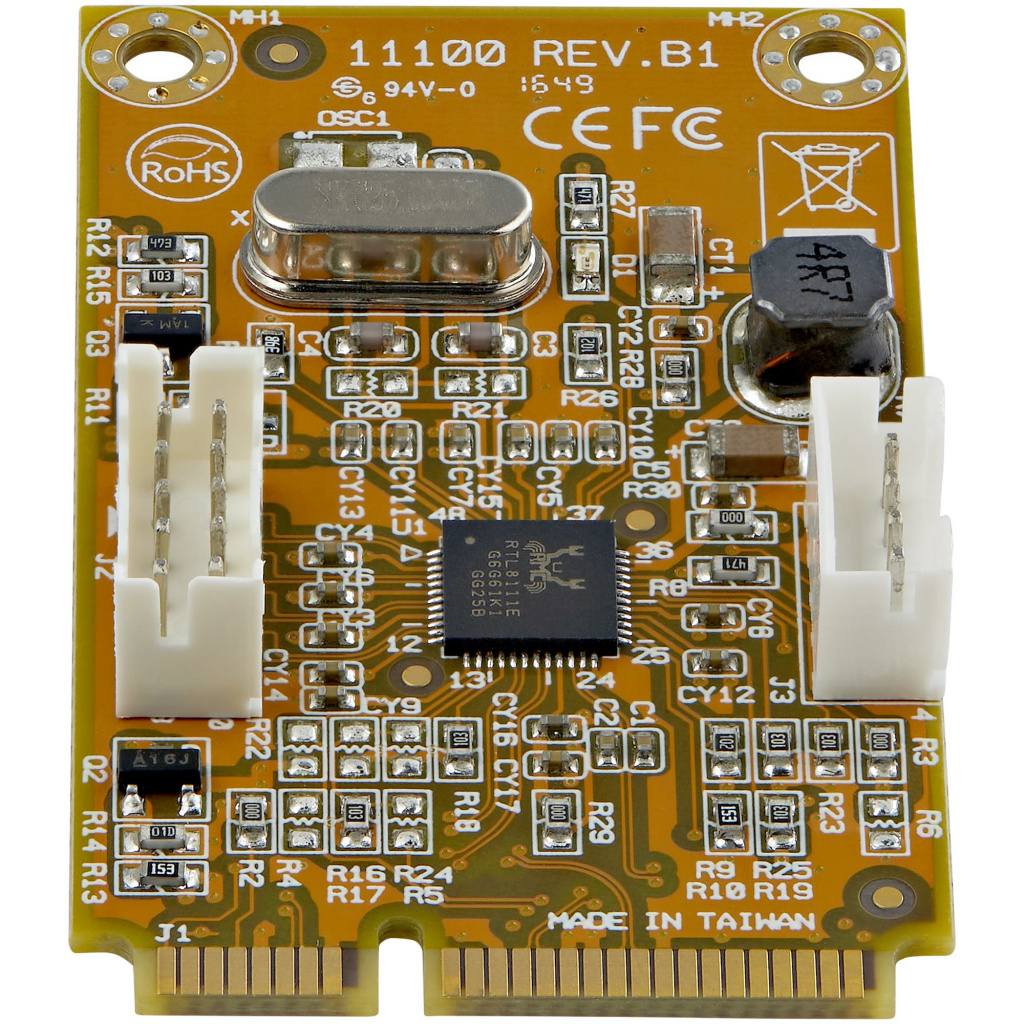

| Chipsæt | Realtek – RTL8111E |
| Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Wi |
| Understøttede Mac-operativsystemer | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard |
| Understøttede Linux-operativsystemer | Ja |
| Relativ luftfugtighed ved drift (H-H) | 5 – 95% |
| Certificering | CE, FCC |
| Understøttede operativsystemer til servere | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
| Vægt | 6 g |
| Auto MDIX IEEE | Ja |
| Fuld duplex | Ja |
| Drivere inkluderet | Ja |
| Pakkebredde | 144 mm |
| Pakkedybde | 175 mm |
| Pakkehøjde | 32 mm |
| Pakkevægt | 150 g |
| Brugervejledning | Ja |
| Wake-on-LAN klar | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 482765 t |
| Simpelt beslag | Ja |
| Antal pr. pakke | 1 stk |
| Compliance certificates | RoHS |
