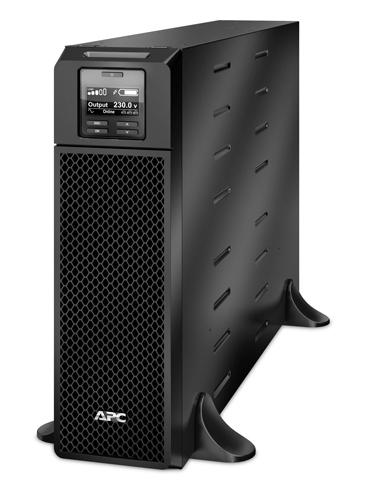

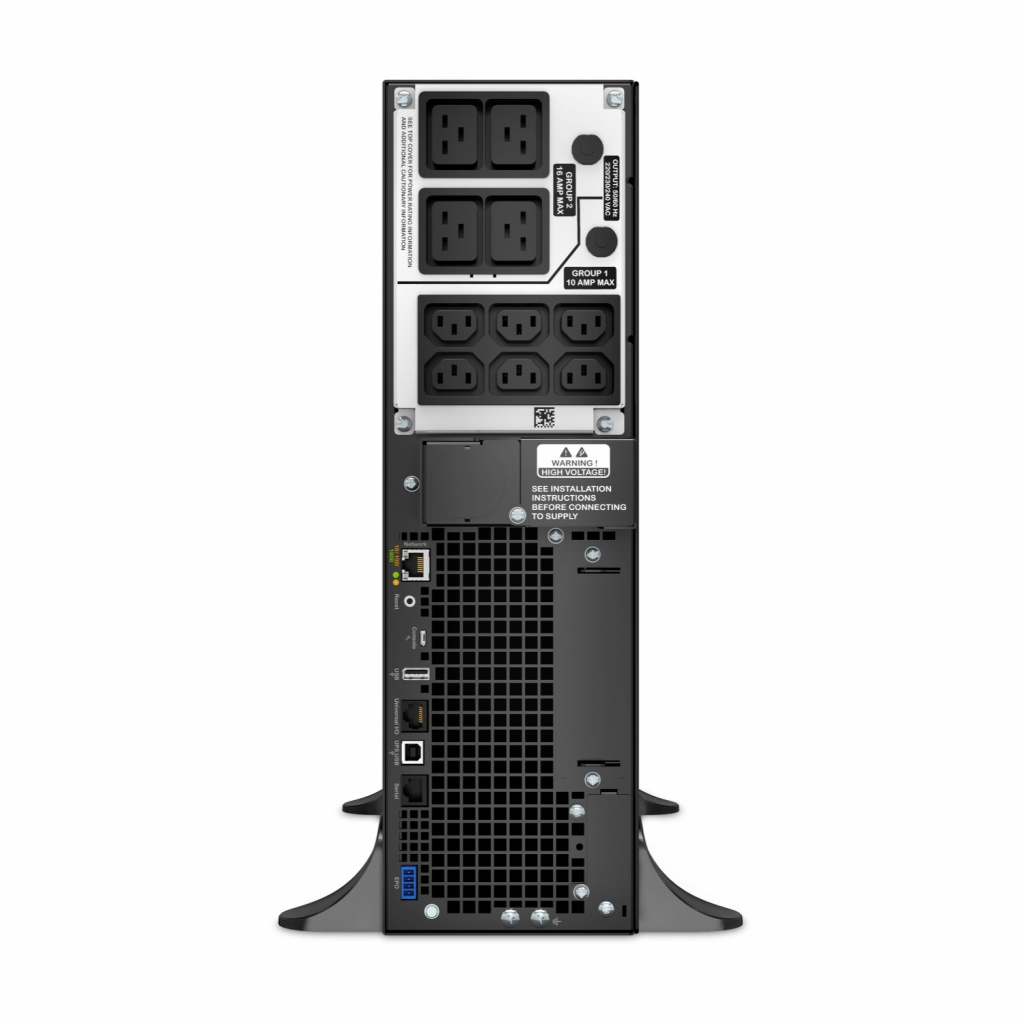

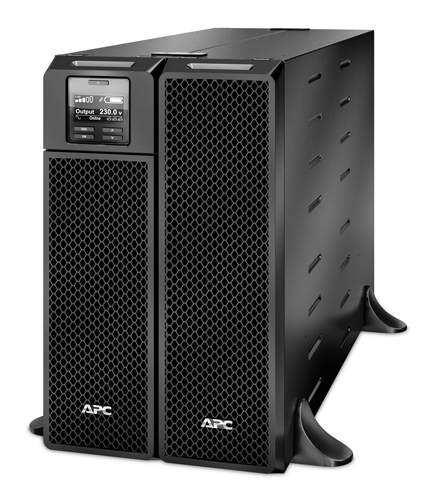

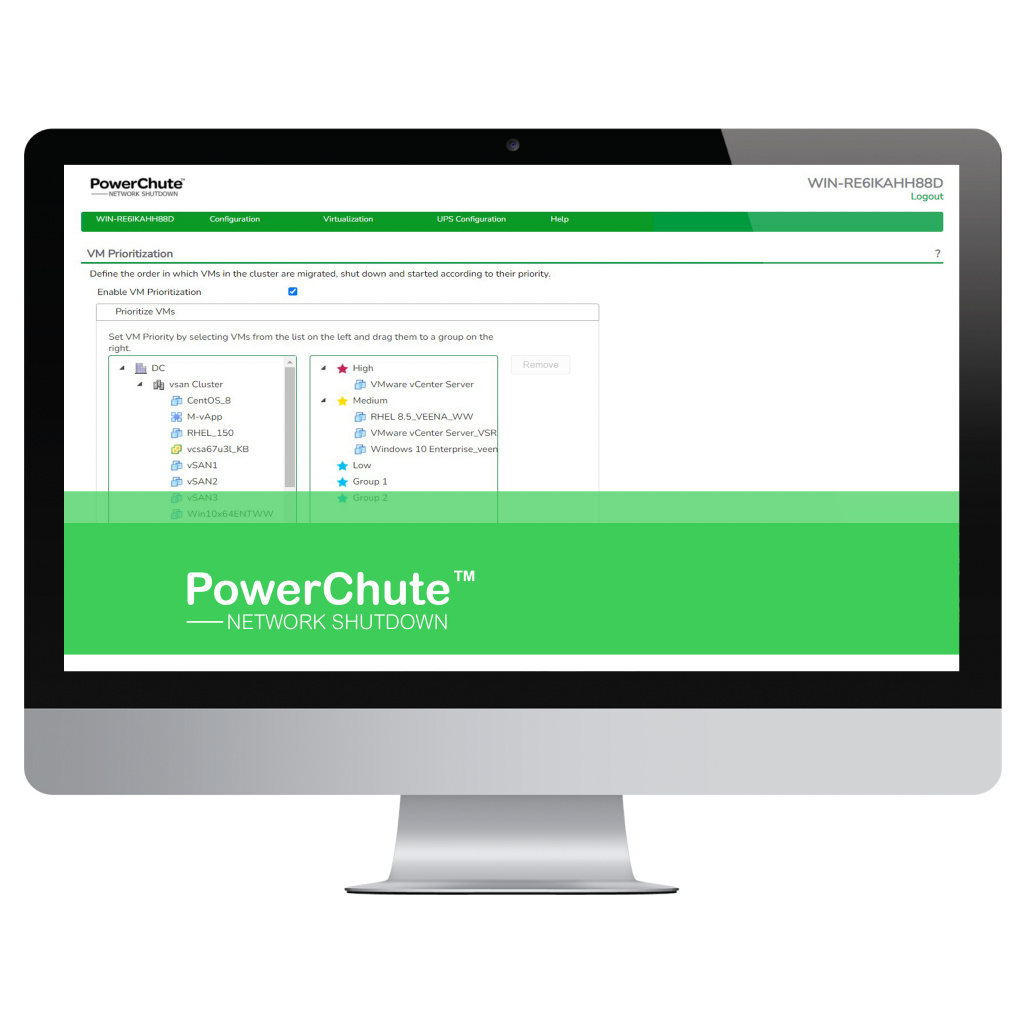

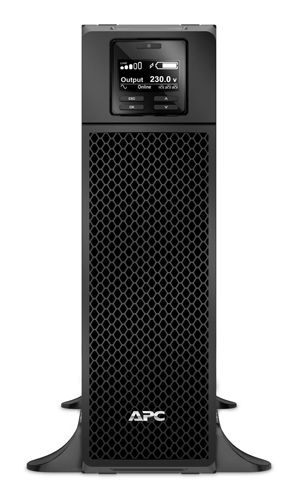

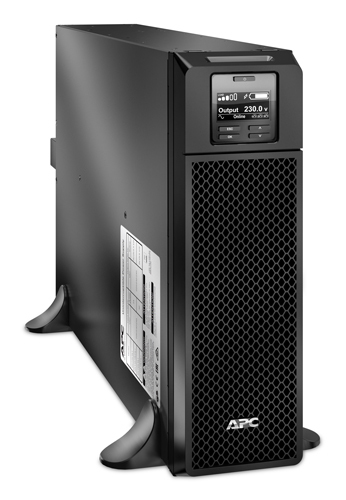

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTRK2 (4-post) and SRTRK3 (2-post) rail kits sold separately. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.
| Vægt | 75,0000 kg |
|---|---|
| UPS topologi | Dobbeltkonvertering (online) |
| Brand | APC |
| State | Default |
| Output strømkapacitet (VA) | 5 kVA |
| Udgangseffekt | 4500 W |
| Bølgeform | Sine |
| Indgående driftsspænding (min.) | 100 V |
| Indgående driftsspænding (maks.) | 275 V |
| Indgangsfrekvens | 40 – 70 Hz |
| Udgangs driftsspænding (min.) | 220 V |
| Udgangs driftsspænding (maks.) | 240 V |
| Effektivitet | 94,1% |
| Støjniveau | 55 dB |
| AC stikkontakt typer | C13 forbinder, C19 forbinder |
| Strømstik | Hardwire |
| AC udgange, antal | 12 AC stikkontakt(er) |
| USB-port | Ja |
| Batteriteknologi | Blybatterier (VRLA) |

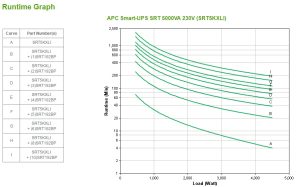

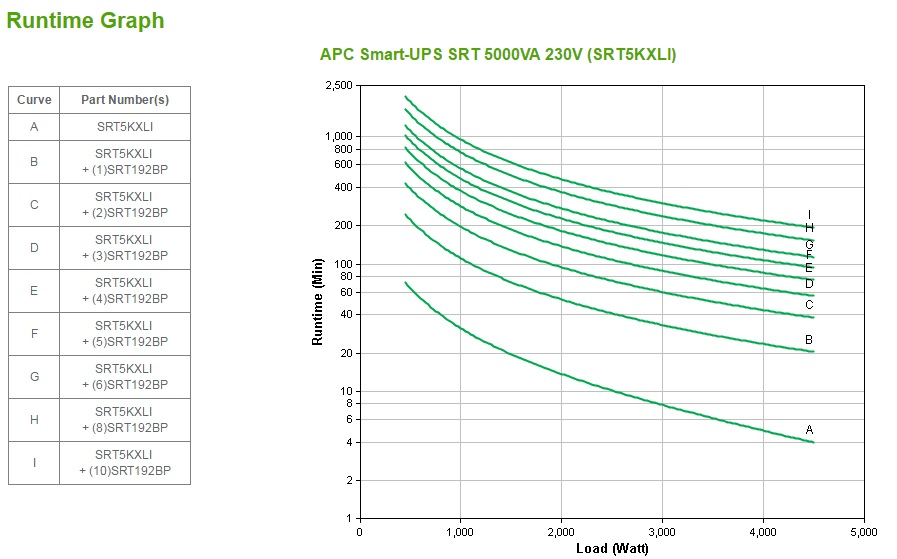

| Typisk backup tid ved fuld styrke | 4 min. |
| Typisk backup tid ved halv styrke | 11,8 min. |
| Hot-swap batteri | Ja |
| Automatisk batteritest | Ja |
| Produktfarve | Sort |
| Skærmtype | LCD |
| Certificering | REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE |
| Driftstemperatur (T-T) | 0 – 40 °C |
| Bredde | 130 mm |
| Dybde | 719 mm |
| Højde | 432 mm |
| Vægt | 54,4 kg |
| Harmoniseret systemkode (HS) | 85078000 |
| Beskyttelse ved overspænding | Ja |
| Koldstart | Ja |
| LED-indikatorer | Status |
| Seriegrænseflade | Ja |
| Seriel grænsefladetype | RJ-45 |
| Bæredygtighedscertifikater | ENERGY STAR |
| Crestfaktor | 3:1 |
| Pakkevægt | 63,6 kg |
| Automatisk genstart | Ja |
| Opbevaringstemperatur (T-T) | -15 – 45 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 – 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 – 95% |
| Driftshøjde | 0 – 3000 m |
| Kabler inkluderet | USB kabel |
| Kode for international beskyttelse (IP) | IP20 |
| Overspænding energivurdering | 480 J |
| Antal udgående IEC stik | 2 |
| Opladningstid for batteri | 1,5 t |
| Regulering af udgangsfrekvens | 50/60 Hz |
| Lydalarmer | Ja |
| Batteriets kapacitet | 845 VAh |
| Batterilevetid (maks.) | 5 År |
| Ikke-drift højde | 0 – 15000 m |
| Pakkebredde | 610 mm |
| Pakkedybde | 960 mm |
| Pakkehøjde | 330 mm |
| Hurtig installationsvejledning | Ja |
| Garantibevis | Ja |
| Software CD | Ja |
| Produkter pr. palle | 6 stk |
| Nødstrøm Off (EPO) | Ja |
| SmartSlot | Ja |
| Temperaturføler | Ja |
| Compliance certificates | RoHS |
| Total carbon footprint | 8386,06 |
