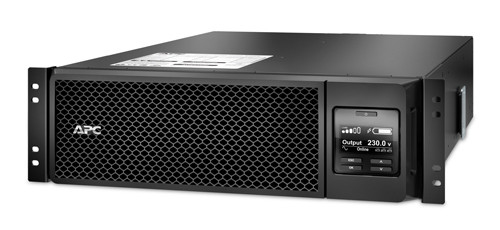

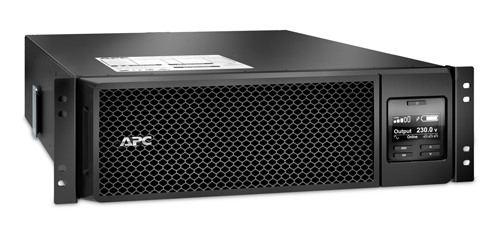

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5kVA on-line 3U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire (1P+N+E) input, 6x IEC 320 C13 and 4x IEC 320 C19 outlets, and 2x IEC jumper cables. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. It has an additional SmartSlot for optional accessory card such as Dry Contact I/O card. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty.
| Vægt | 66,8600 kg |
|---|---|
| UPS topologi | Dobbeltkonvertering (online) |
| Brand | APC |
| State | Default |
| Output strømkapacitet (VA) | 5 kVA |
| Udgangseffekt | 4500 W |
| Bølgeform | Ren sinus |
| Indgående driftsspænding (min.) | 160 V |
| Indgående driftsspænding (maks.) | 275 V |
| Indgangsfrekvens | 45/65 Hz |
| Udgangs driftsspænding (min.) | 220 V |
| Udgangs driftsspænding (maks.) | 230 V |
| Uddgående frekvens | 50/60 Hz |
| Støjniveau | 55 dB |
| AC stikkontakt typer | C13 forbinder, C19 forbinder, IEC Jumpers |
| Strømstik | Terminal |
| AC udgange, antal | 12 AC stikkontakt(er) |
| USB-port | Ja |
| Antal USB 2.0-porte | 1 |
| Batteriteknologi | Blybatterier (VRLA) |
| Hot-swap batteri | Ja |
| Automatisk batteritest | Ja |
| Formfaktor | Mini Tower |
| Produktfarve | Sort |

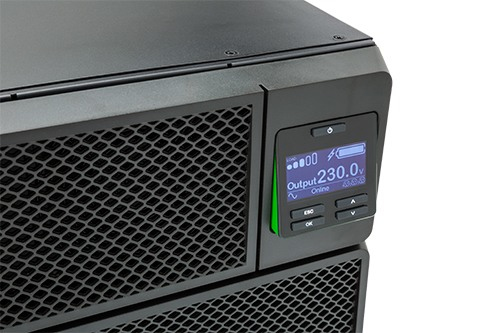

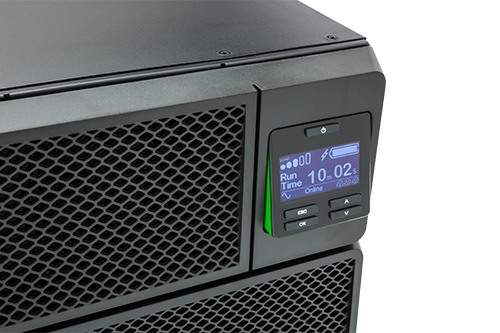

| Skærmtype | LCD |
| Certificering | CE, DNV, EAC, RCM, VDE, REACH |
| Driftstemperatur (T-T) | 0 – 40 °C |
| Bredde | 432 mm |
| Dybde | 719 mm |
| Højde | 130 mm |
| Vægt | 54,4 kg |
| Harmoniseret systemkode (HS) | 85078000 |
| Beskyttelse ved overspænding | Ja |
| Ethernet LAN-porte (RJ-45) | 1 |
| LED-indikatorer | Ja |
| Seriegrænseflade | Ja |
| Seriel grænsefladetype | RJ-45 |
| Crestfaktor | 3:1 |
| Udgangsspænding total harmonisk forvrængning (THD) | 3% |
| Antal serielle porte | 1 |
| Pakkevægt | 66,9 kg |
| Opbevaringstemperatur (T-T) | -15 – 45 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 – 95% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 – 95% |
| Driftshøjde | 0 – 3000 m |
| Antal understøttede batterier | 1 |
| Kode for international beskyttelse (IP) | IP20 |
| Overspænding energivurdering | 480 J |
| Opladningstid for batteri | 1 t |
| Lydalarmer | Ja |
| Batterilevetid (maks.) | 5 År |
| Ikke-drift højde | 0 – 15000 m |
| Pakkebredde | 610 mm |
| Pakkedybde | 960 mm |
| Pakkehøjde | 330 mm |
| Hurtig installationsvejledning | Ja |
| Garantibevis | Ja |
| Kabelteknologi | 10/100Base-T |
| Nødstrøm Off (EPO) | Ja |
| SmartSlot | Ja |
| Ressource CD | Ja |
| Temperatur spændingskompensation | Ja |
| Compliance certificates | RoHS |
| Total carbon footprint | 46266,7 |
