10 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

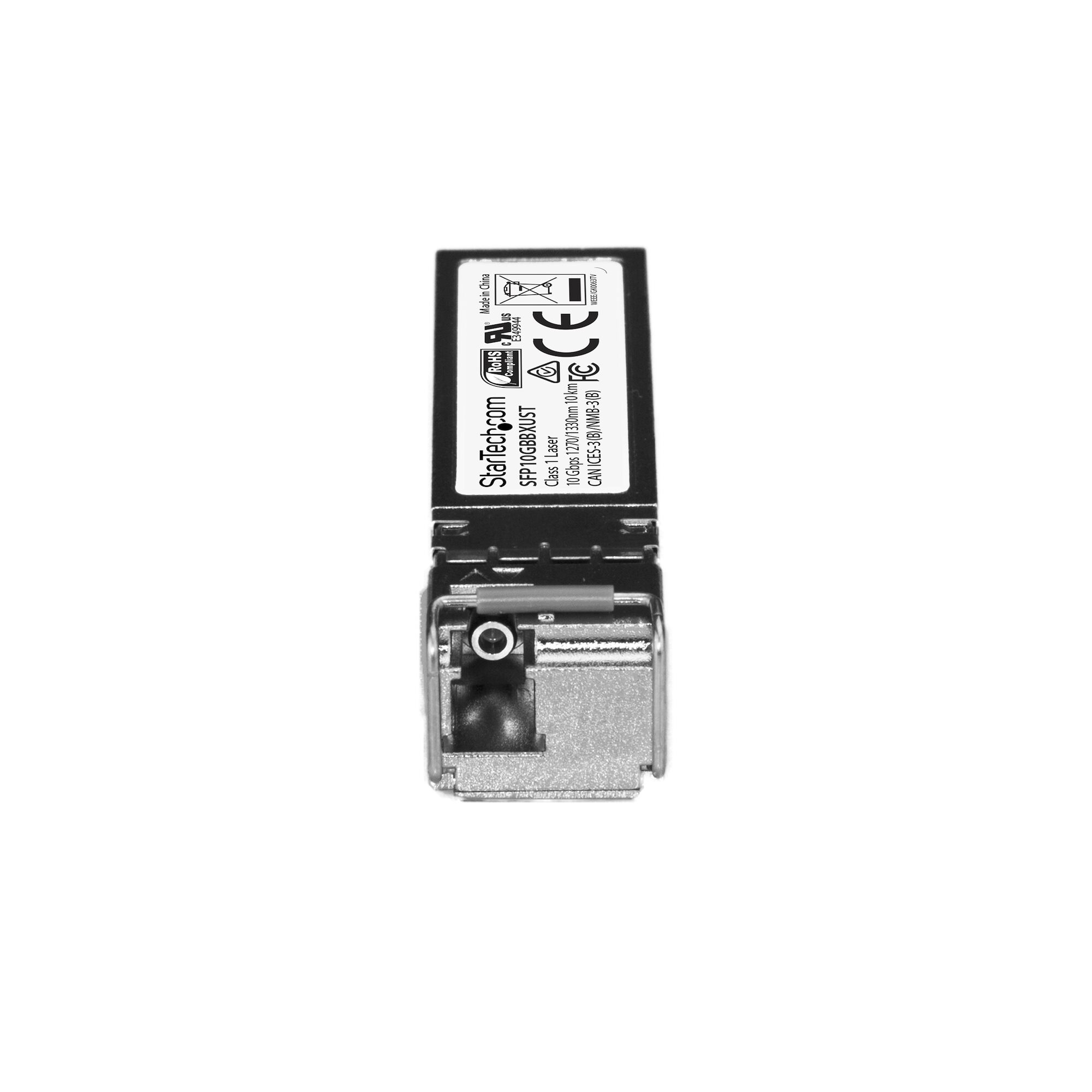

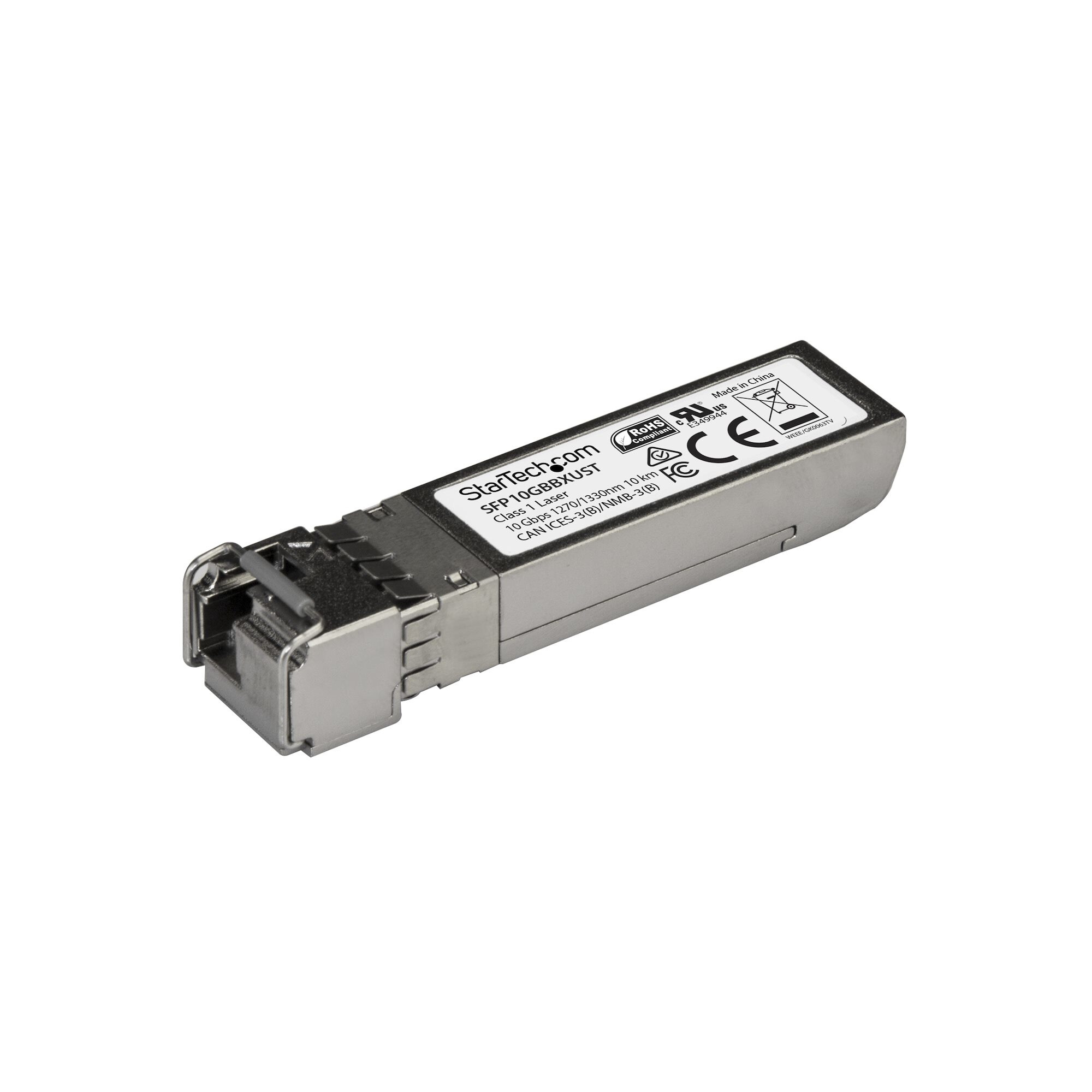

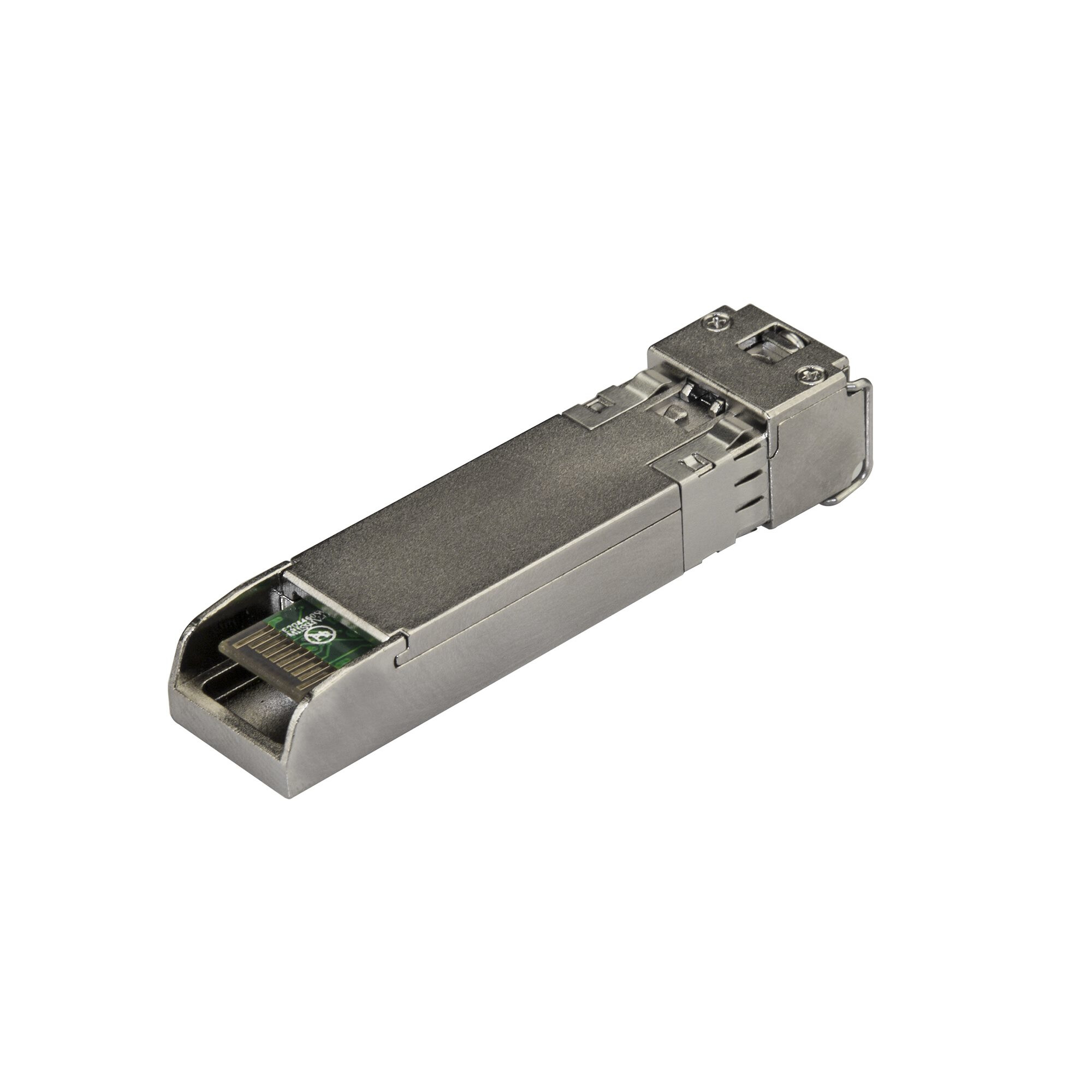

The SFP10GBBXUST is an MSA compliant upstream fiber SFP transceiver which pairs with StarTech.com’s SFP10GBBXDST. They are designed, programmed and tested to work with 10GBASE-BX compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 10 km (6.2 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
• Wavelength: 1270nmTx/1330nmRx
• Maximum Data Transfer Rate: 10 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• Power Consumption: Less than 1 Watt
• DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Vægt | 0,0000 kg |
|---|---|
| SFP modtagertype | Fiberoptisk |
| Brand | StarTech.com |
| State | Default |
| Maksimal dataoverførselshastighed | 10000 Mbit/s |
| Grænsefladetype | SFP+ |
| Enkelttilstand fiber (SMF) understøttet | Ja |
| Fiber optisk strømstik | LC |
| Maksimal overførselsafstand | 10000 m |
| Duplex system | Fuld |
| Digital diagnose overvågning (DDM) | Ja |
| Harmoniseret systemkode (HS) | 85369010 |
| Produktfarve | Sølv |
| Certificering | CE, FCC, UR |
| Bredde | 13,9 mm |
| Dybde | 58,4 mm |
| Højde | 12,6 mm |
| Vægt | 24 g |
| Pakkebredde | 90 mm |
| Pakkedybde | 115 mm |
| Pakkehøjde | 30 mm |
| Pakkevægt | 54 g |
| Hovedkassens bredde (udvendigt) | 315 mm |
| Hovedkassens længde (udvendigt) | 405 mm |
| Hovedkassen højde (udvendigt) | 315 mm |
| Produkter pr. hovedkasse (udvendigt) | 80 stk |
| SFP transceiver standard | BX |
| Netværksstandarder | IEEE 802.3ae |
| Driftstemperatur (T-T) | 0 – 70 °C |
| Opbevaringstemperatur (T-T) | -40 – 85 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 – 95% |
| Understøtter hot-plug | Ja |
| Husmateriale | Aluminium |
| Bølgelængde-division multipleksing (WDM) | Ja |
| Oprindelsesland | Kina |
| Tx bølgelængde (min) | 1270 nm |
| Rx bølgelængde (min) | 1330 nm |
| Antal pr. pakke | 1 stk |
| Compliance certificates | RoHS |
