LevelOne SFP-9321 modul til netværksmodtager Fiberoptisk 1250 Mbit/s

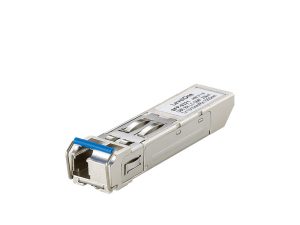

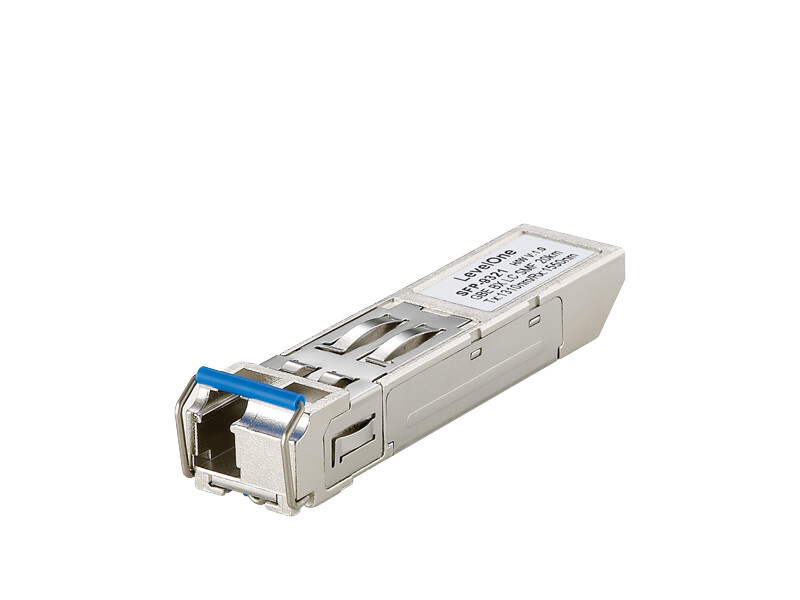

The LevelOne SFP-9321 is a high performance, cost-effective SFP transceiver. It provides up to 1.25 Gbps bi-directional data transfer rate at distances up to 20km on a single fiber core. These bi-directional SFP Transceivers allow data transfer in either direction through a single optical fiber by employing separate wavelengths travelling in either direction.

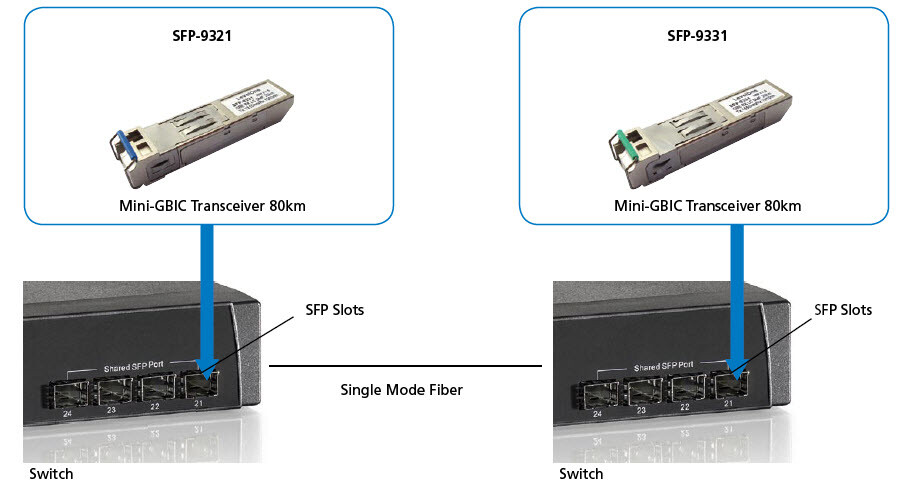

The SFP-9321 transmits using a wavelength of 1310nm and receives using a wavelength of 1550nm. When coupled with the LevelOne SFP-9331 transceiver which transmits at and receives at the opposite rates (1310nm TX and 1550nm RX) you get bi-direction data communication on a single fiber core.

– 1310nm FP LD
– Multi Data Rate: from 125M to 1.25Gbps, NRZ
– Single +3.3V Power Supply
– RoHS Compliant and Lead-free
– AC/AC Differential Electrical Interface
– Compliant with Multi-Source Agreement (MSA)
– Simplex LC Connector
– Compliance with specifications for IEEE-802.3z Gigabit Ethernet at 1.25Gbps
– Compliance with ANSI specifications for Fiber
– Channel applications at 1.06bps
– No configuration or installation software required
– Eye Safety Designed to meet LASER Class 1 comply with EN60825-1
