LevelOne SFP-3841 modul til netværksmodtager Kobber 1250 Mbit/s

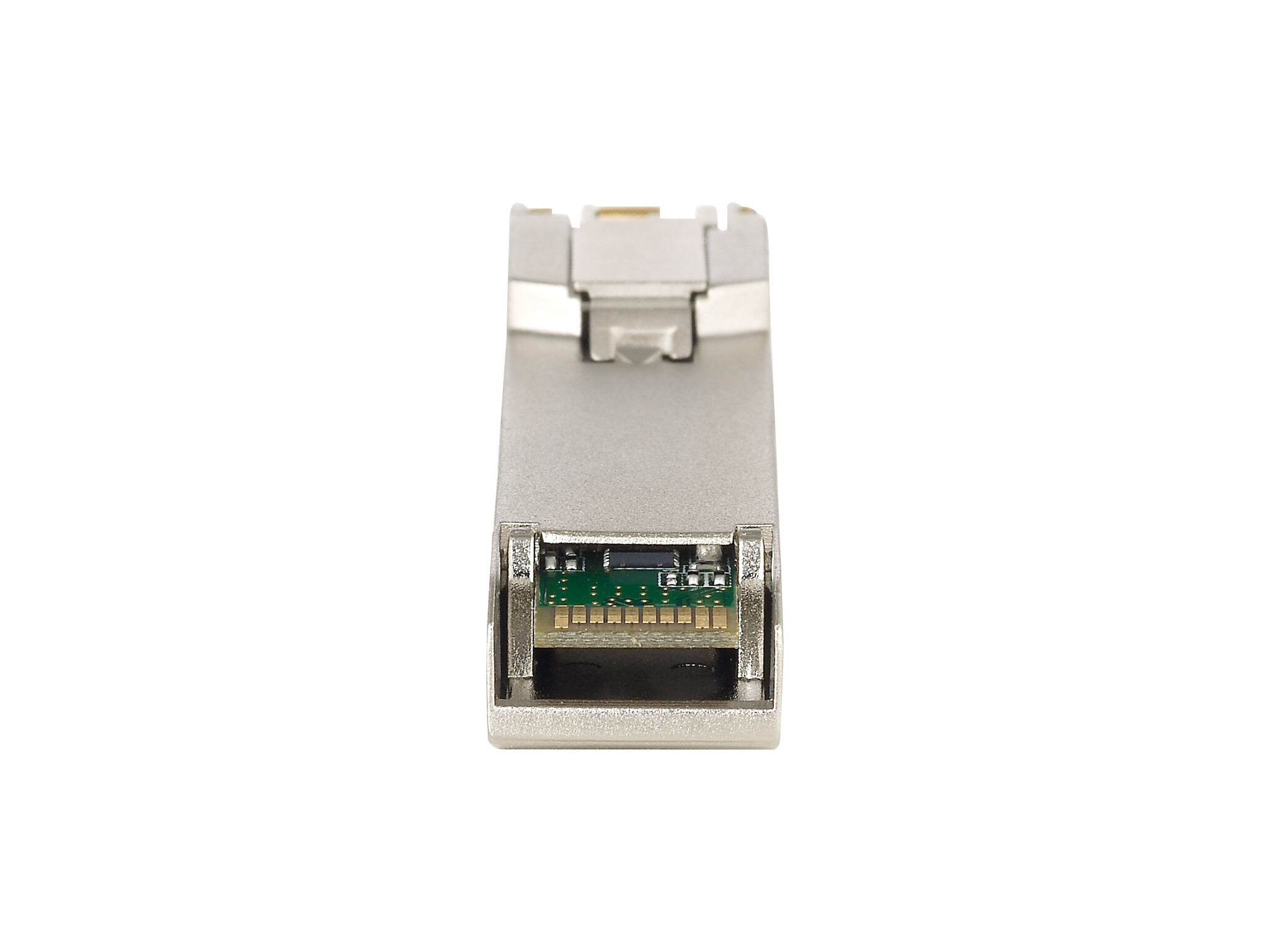

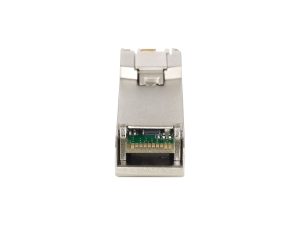

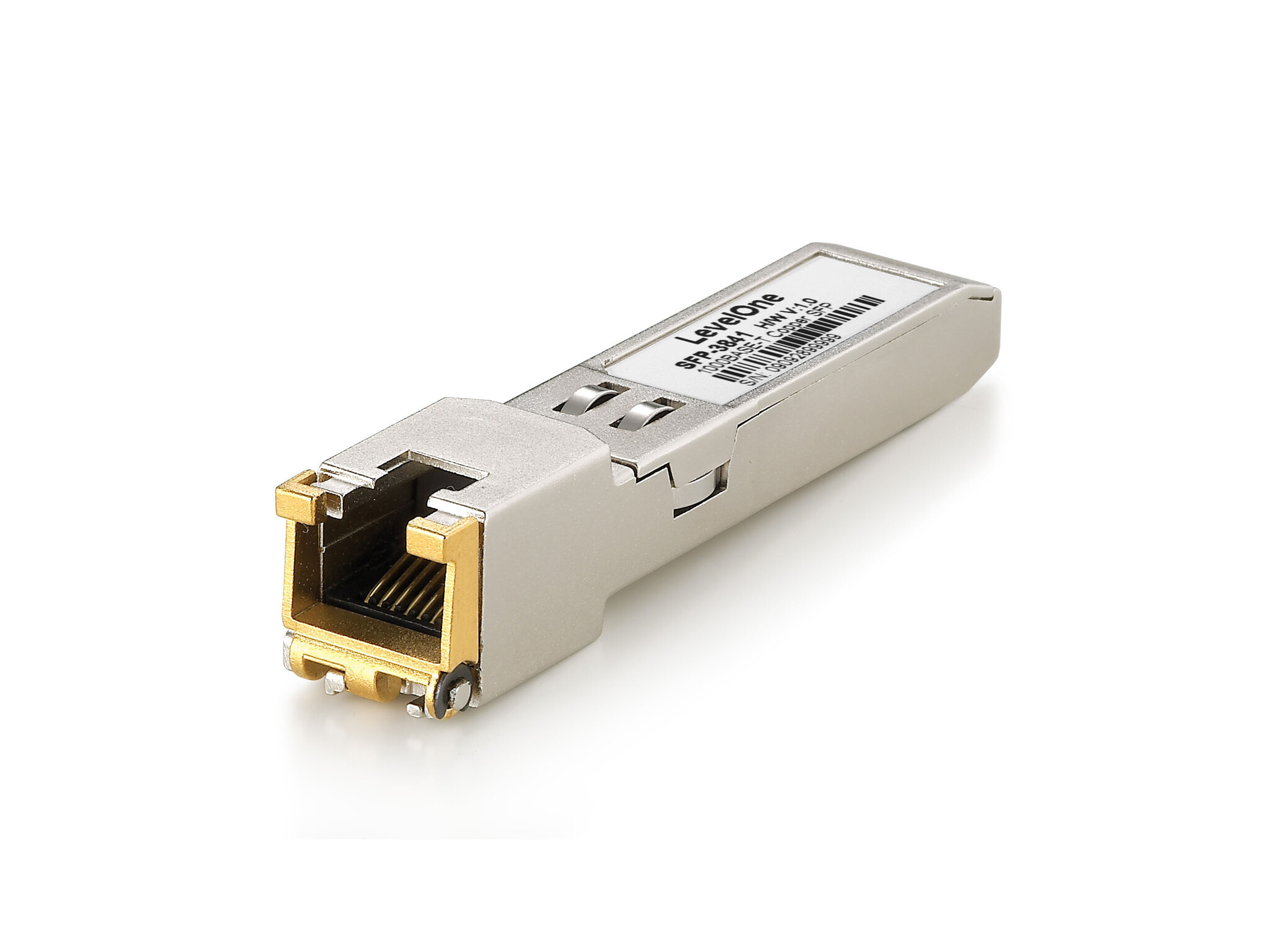

LevelOne SFP-3841 is a Copper SFP transceiver that provides enhanced flexibility to system designers. It converts 1000BASE-X optical Ethernet port to a copper Ethernet port (1000-BASE-T) to support a transfer rate of up to 1.25 Gbps at a distance of up to 100 meters over unshielded twisted-pair category 5 cable.

– Up to 1.25Gbps bi-directional data links
– Hot-pluggable SFP footprint
– Extended cased temperature range(0°C to +70 °C)
– Fully metallic enclosure for low EMI
– Low power dissipation (1.05 W typical)

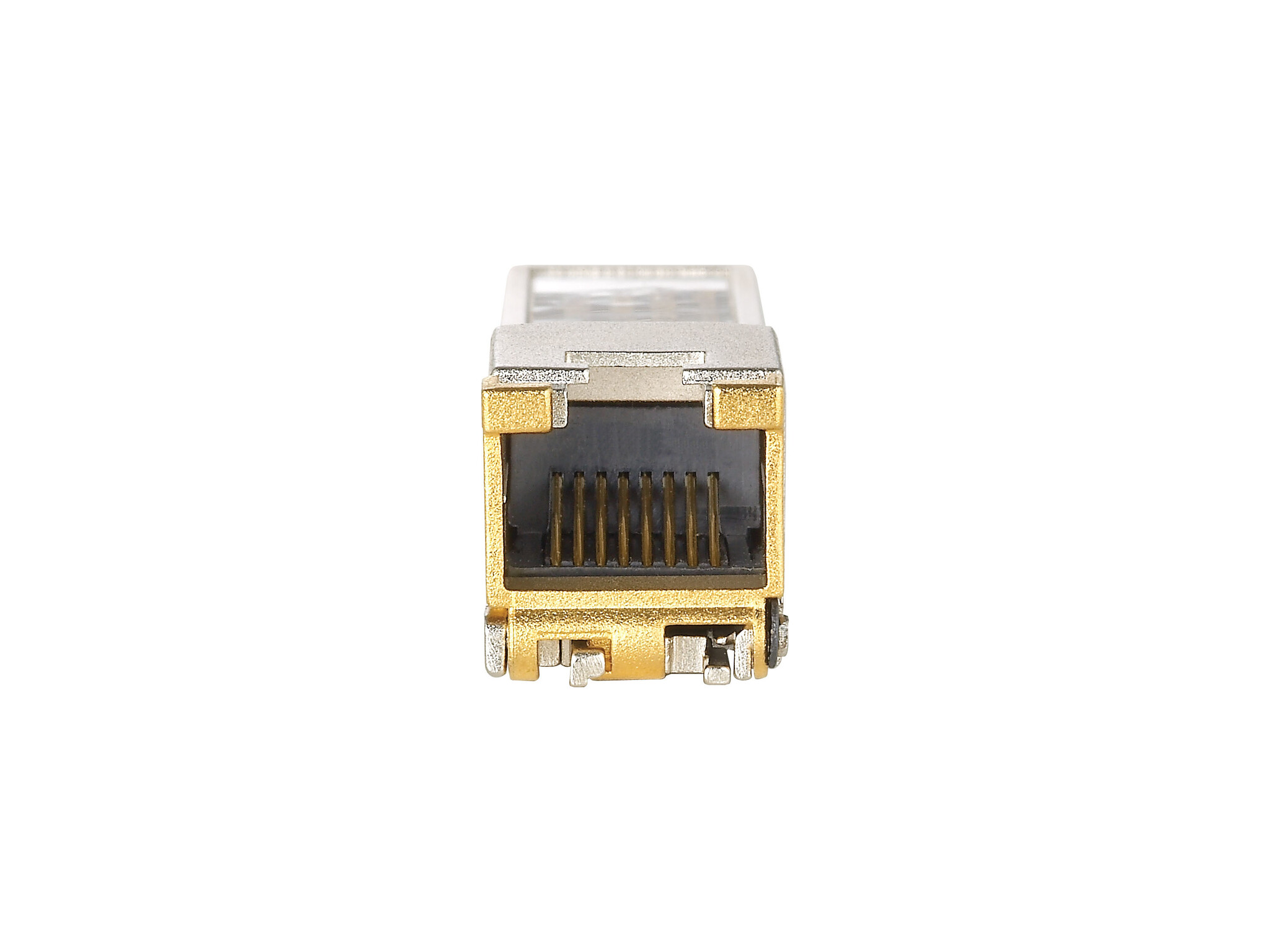

– Compact RJ-45 connector assembly
– Access to physical layer IC via 2-wire serial bus
– 1000 BASE-T operation in host systems with SERDES interface
