40 Gbps | Single Mode Fiber | LC | 10 km (6.2 mi) | Lifetime Warranty

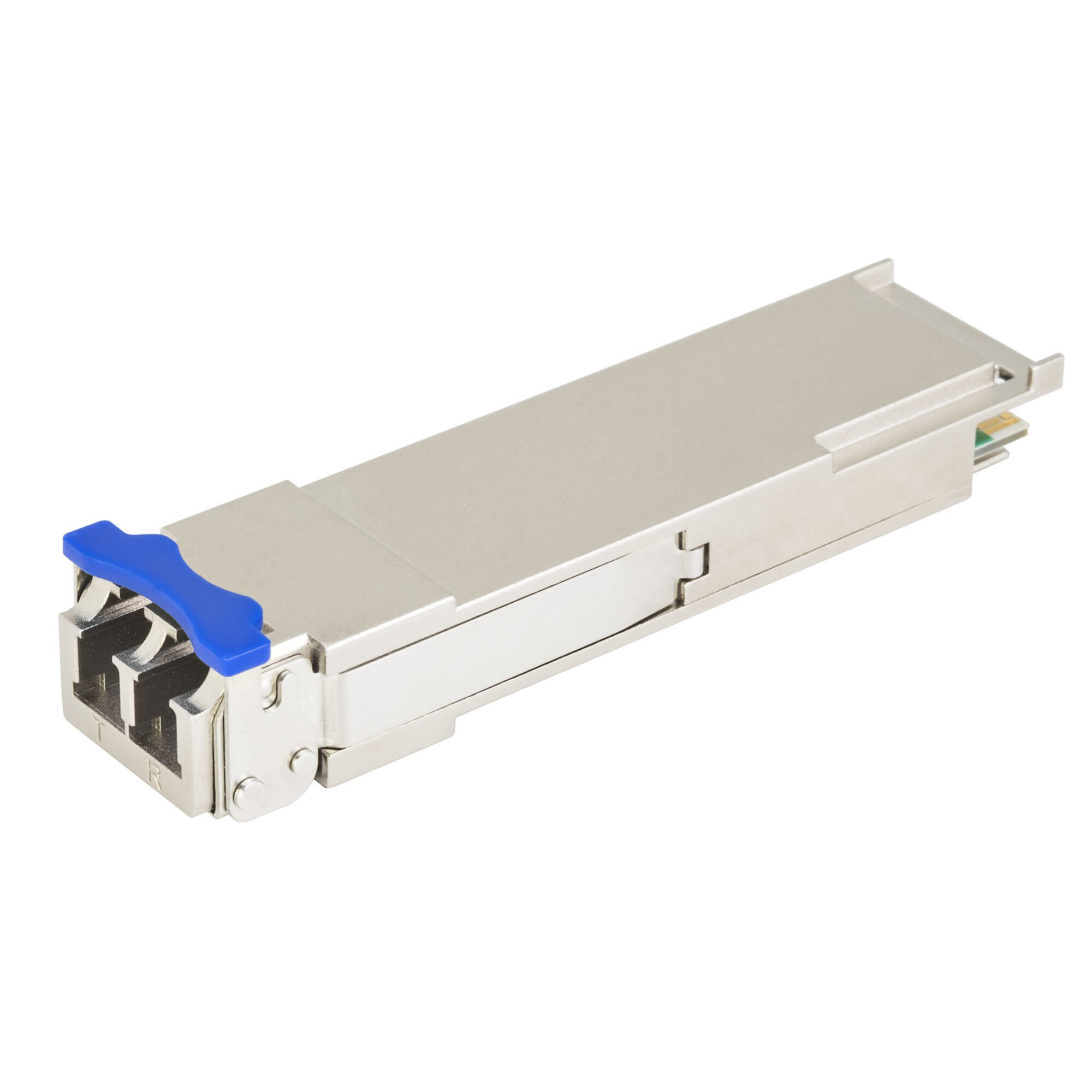

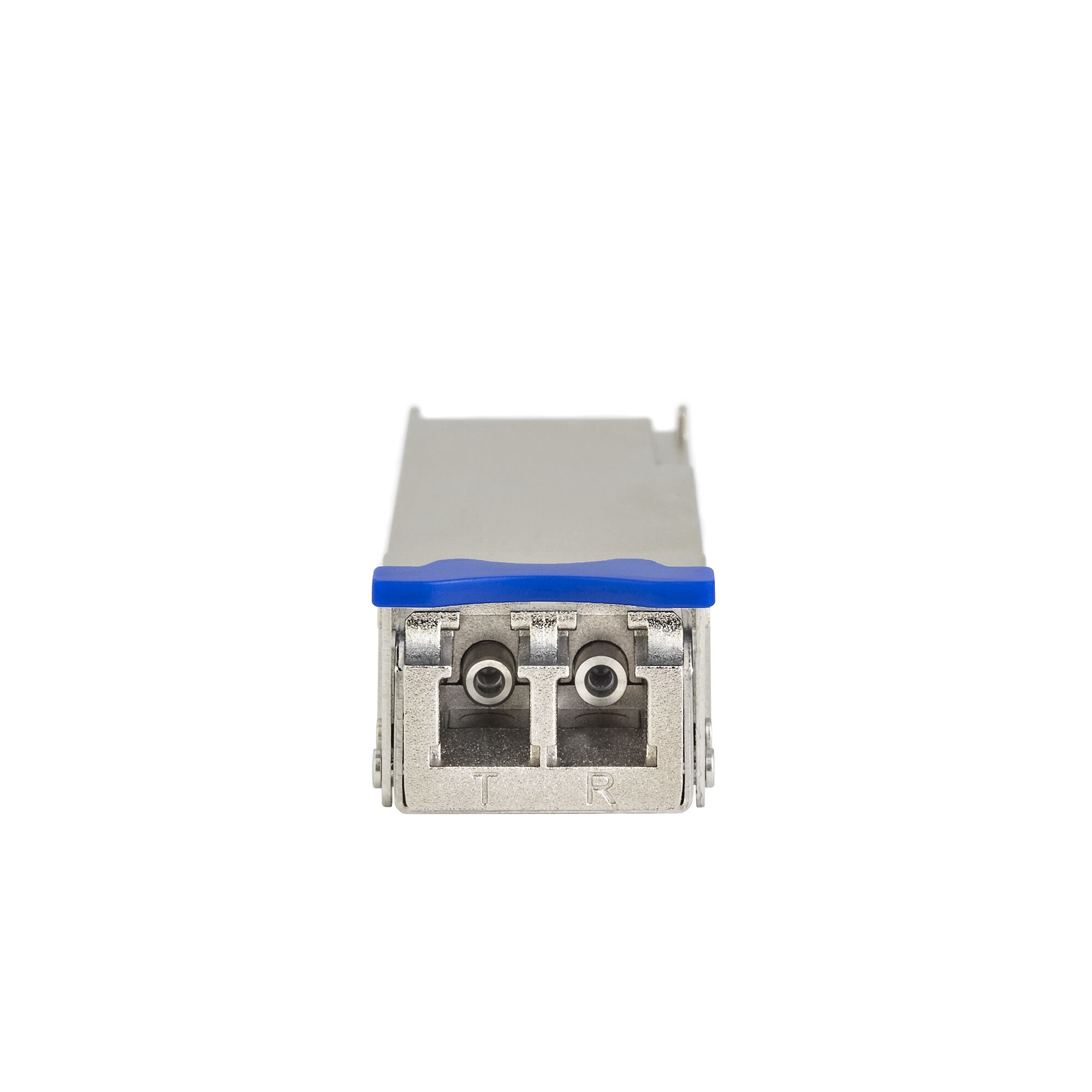

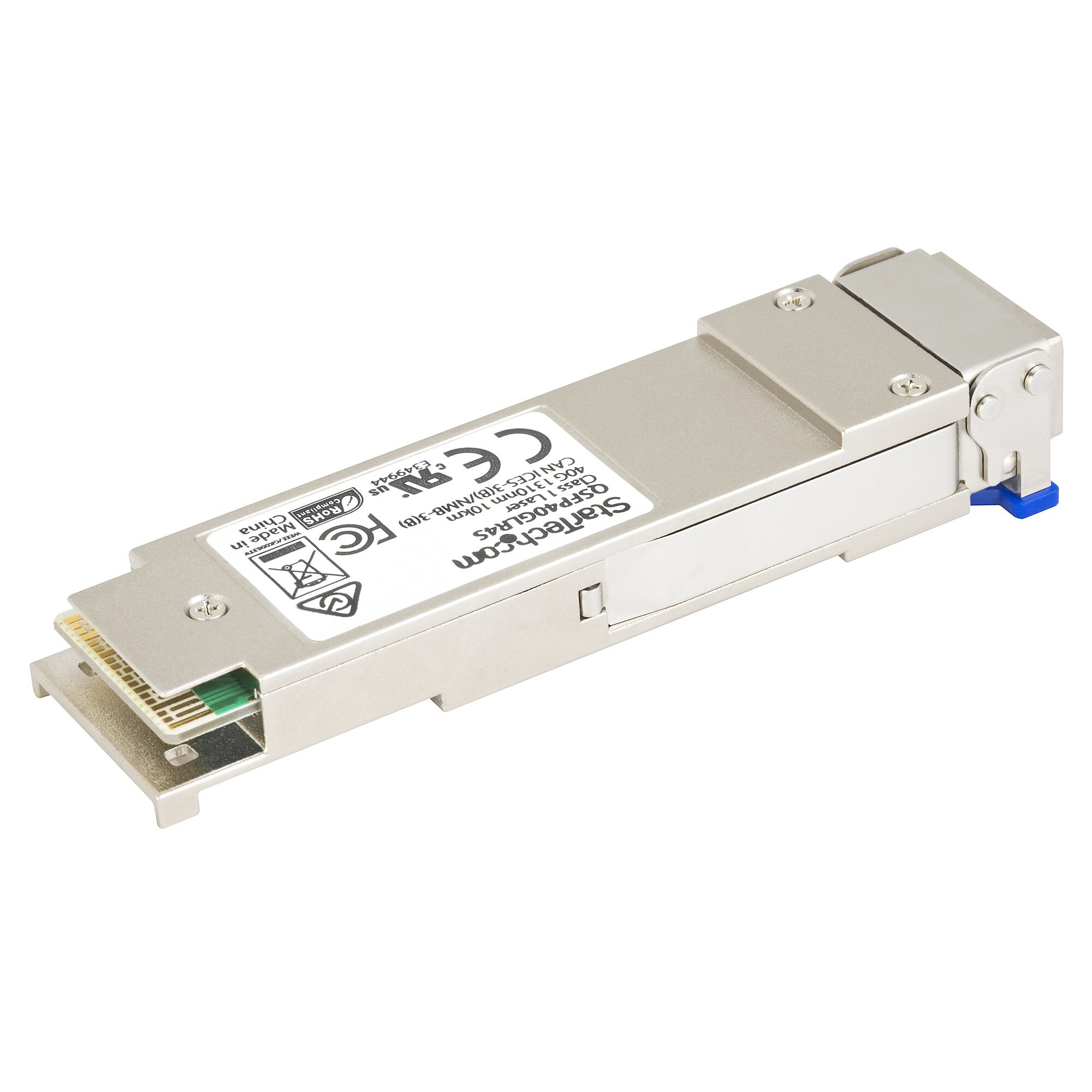

The QSFP40GLR4S is a Cisco QSFP-40G-LR4-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 40 GbE connectivity over fiber cable, for 40GBASE-LR4 compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
• Wavelength: 1270nm to 1330nm
• Maximum Data Transfer Rate: 40 Gbps
• Type: Single Mode Fiber
• Connection Type: LC Connector
• Maximum Transfer Distance: 10 km (6.2 mi)
• MTBF: 1,489,426 hours
• Power Consumption: Less than 2.5 Watts
• Digital Diagnostics Monitoring (DDM): Yes
This QSFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
| Vægt | 0,0000 kg |
|---|---|
| SFP modtagertype | Fiberoptisk |
| Brand | StarTech.com |
| State | Default |
| Maksimal dataoverførselshastighed | 40000 Mbit/s |
| Grænsefladetype | QSFP+ |
| Enkelttilstand fiber (SMF) understøttet | Ja |
| Fiber optisk strømstik | LC |
| Maksimal overførselsafstand | 10000 m |
| Tx bølgelængde (maks) | 1330 nm |
| Duplex system | Fuld |
| Digital diagnose overvågning (DDM) | Ja |
| Harmoniseret systemkode (HS) | 85369010 |
| Produktfarve | Sølv |
| Hot-swap | Ja |
| Gennemsnitstid mellem fejl (MTBF) | 1489426 t |
| Strømforbrug (typisk) | 2,5 W |
| Bredde | 18,4 mm |
| Dybde | 72 mm |
| Højde | 8,5 mm |
| Vægt | 44 g |
| Pakkebredde | 92 mm |
| Pakkedybde | 117 mm |
| Pakkehøjde | 34 mm |
| Pakkevægt | 95 g |
| Hovedkassens bredde (udvendigt) | 250 mm |
| Hovedkassens længde (udvendigt) | 300 mm |
| Hovedkassen højde (udvendigt) | 200 mm |
| Produkter pr. hovedkasse (udvendigt) | 36 stk |
| SFP transceiver standard | LR4 |
| Netværksstandarder | IEEE 802.3ba |
| Driftstemperatur (T-T) | 0 – 70 °C |
| Opbevaringstemperatur (T-T) | -40 – 85 °C |
| Relativ luftfugtighed ved drift (H-H) | 5 – 95% |
| Husmateriale | Aluminium |
| Oprindelsesland | Kina |
| Tx bølgelængde (min) | 1270 nm |
| Antal pr. pakke | 1 stk |
| Compliance certificates | CE, RoHS |
