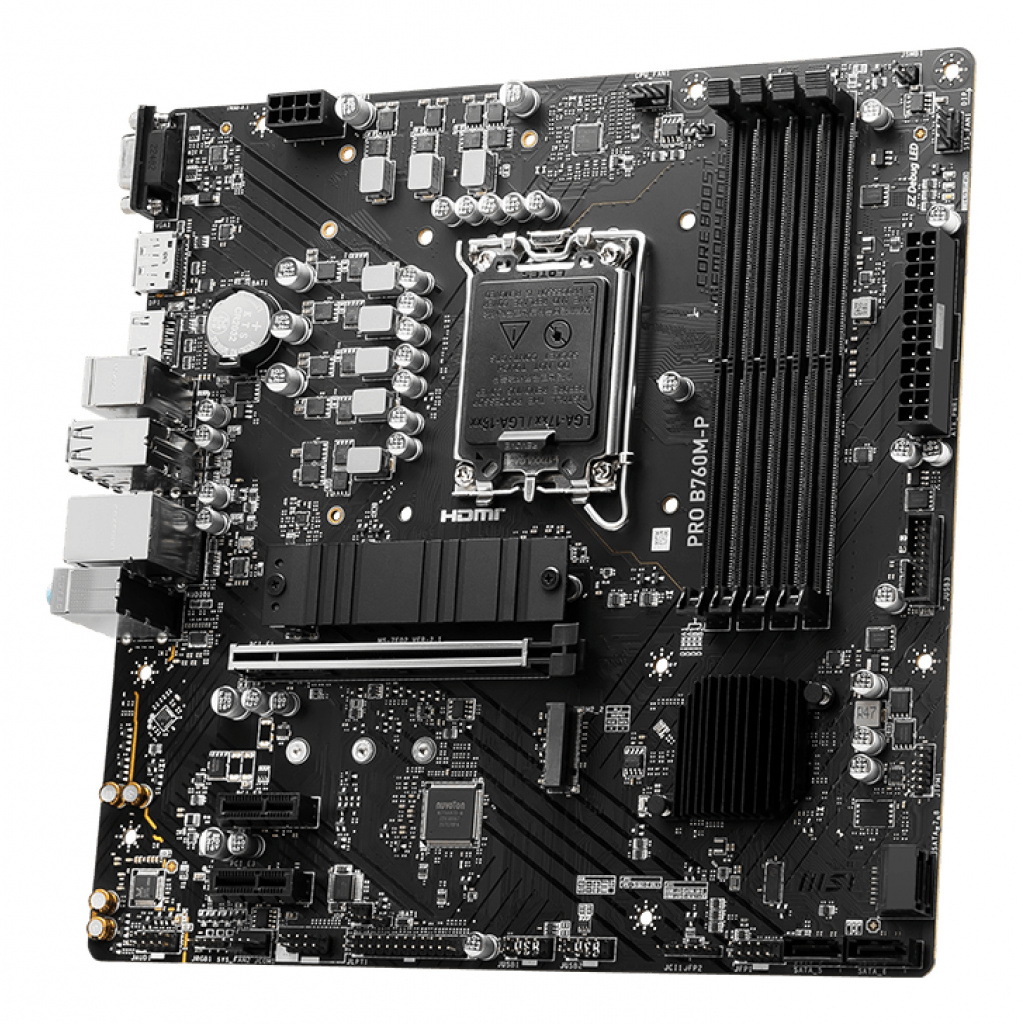

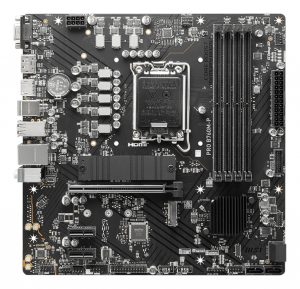

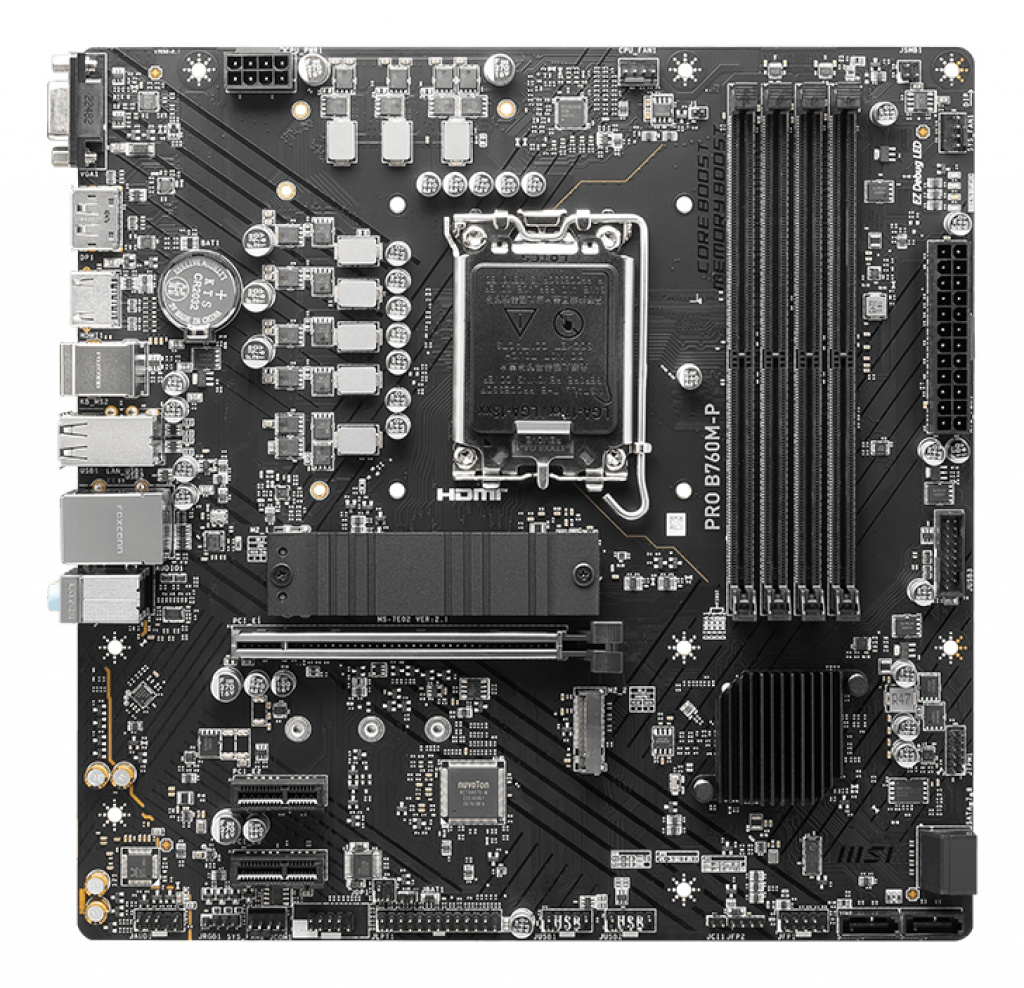

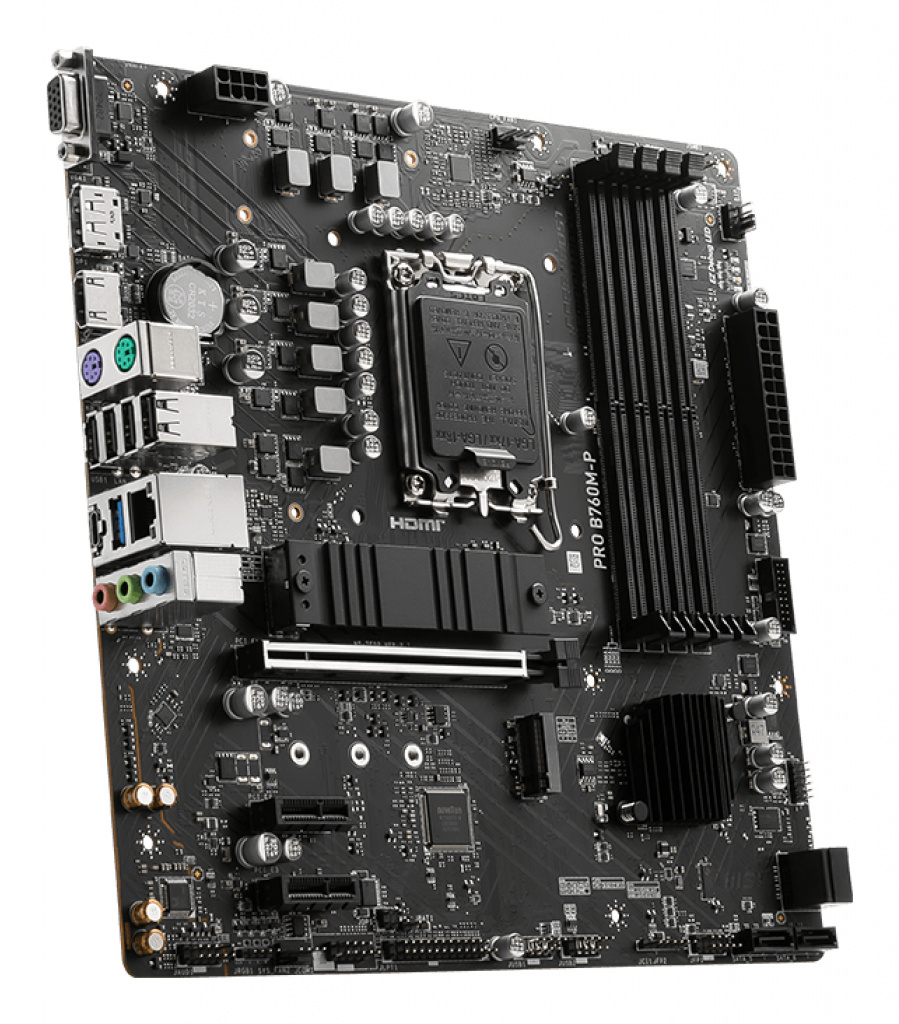

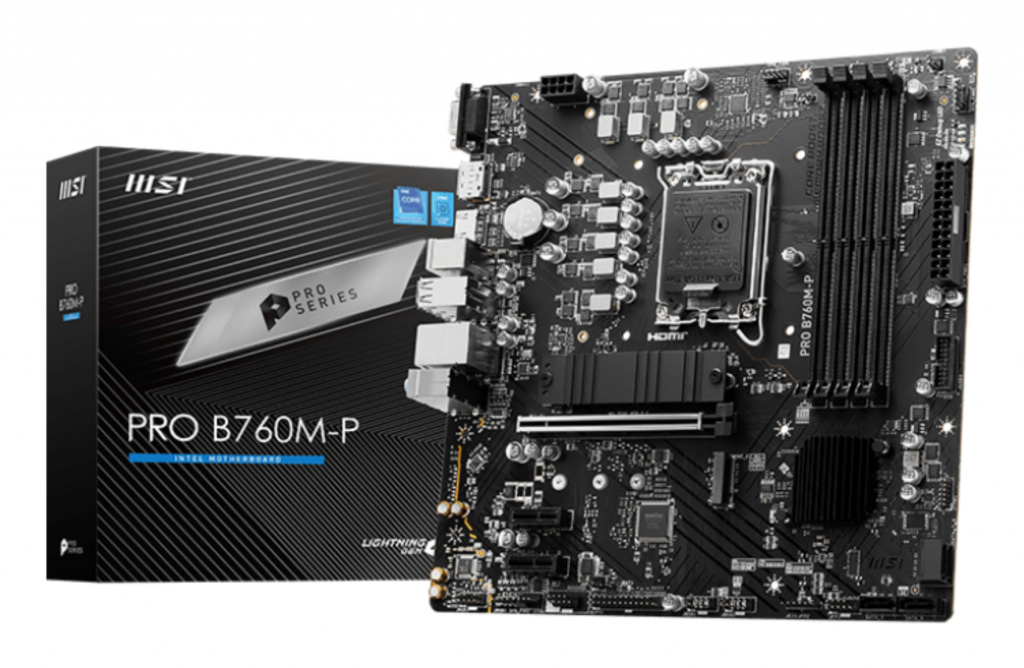

PRO B760M-P is designed with tons of flexible tools with DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
Diy Friendly
Cooling Overview
msi PRO B760M-P cooling overview mobile
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
CORE BOOST
Core Boost technology combines MSI’s premium layout and optimized power design which allows for faster and undistorted current delivery to the CPU at pin-point precision. Not only supporting multi-core CPU, also creating the perfect conditions for your CPU overclocking.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED, HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
Diy Friendly
Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks.
LATEST DDR5 MEMORY WITH SMT SLOT
A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MSI PRO Series motherboards are ready to deliver the world class memory performance.
Bios & software
MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.
| Vægt | 0,9100 kg |
|---|---|
| Processorproducent | Intel |
| Brand | MSI |
| State | Default |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Pentium® Gold |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 192 GB |
| Understøttede hukommelsesclock-hastigheder | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800 MHz |
| Ikke-bufferet hukommelse | Ja |
| USB 2.0-stik | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 2 |
| Antal SATA III-stik | 4 |
| Lydstik på frontpanel | Ja |
| Stik til frontpanel | Ja |
| ATX strømstrik (24 stikben) | Ja |
| CPU-ventilatorstik | Ja |
| Antal COM-stik | 1 |

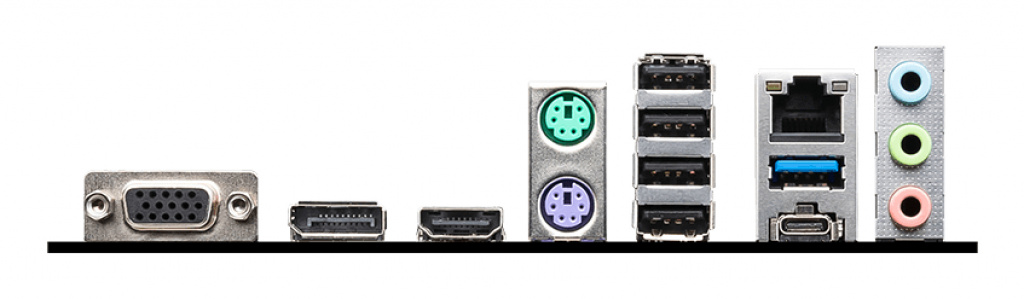

| Antal USB 2.0-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 1 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal PS/2-porte | 2 |
| HDMI-version | 1.4 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | Gigabit Ethernet |
| LAN Kontroller | Realtek RTL8111H |
| Komponent til | PC |
| Motherboard form faktor | micro ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel B760 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC897 |
| Understøttede Windows-operativsystemer | Windows 10 x64, Windows 11 x64 |
| BIOS-type | UEFI AMI |
| BIOS-hukommelsesstørrelse | 256 Mbit |
| ACPI-version | 6.4 |
| Nulstil CMOS-jumper | Ja |
| System Management BIOS (SMBIOS) version | 3.5 |
| Bredde | 243,8 mm |
| Dybde | 243,8 mm |
| Kabler inkluderet | SATA |
| Understøttede lagerdrev brugerflader | SATA III |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| Udgange til hovedtelefoner | 1 |
| Wi-Fi | Ingen |
| Understøttede procesorsokler | LGA 1700 |
| RAID-niveauer | 0, 1, 5, 10 |
| TPM-stik | Ja |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Understøttet datalagringsdrev typer | HDD & SSD |
| Antal understøttede HHD'er | 4 |
| DisplayPort-version | 1.4 |
| Mikrofonindgang | Ja |
| Strømkilde type | ATX |
| Indbrudsttik til kabinet | Ja |
| Header med RGB-LED-ben | Ja |
| Understøtter RAID | Ja |
| Antal VGA-porte (D-sub) | 1 |
| Antal understøttede lagerdiske | 6 |
| Line-in | Ja |
| PCI Express x1 (Gen 4.x) slots | 2 |
| Parallelt stik | Ja |
| ECC сompatibility | NON-ECC |
