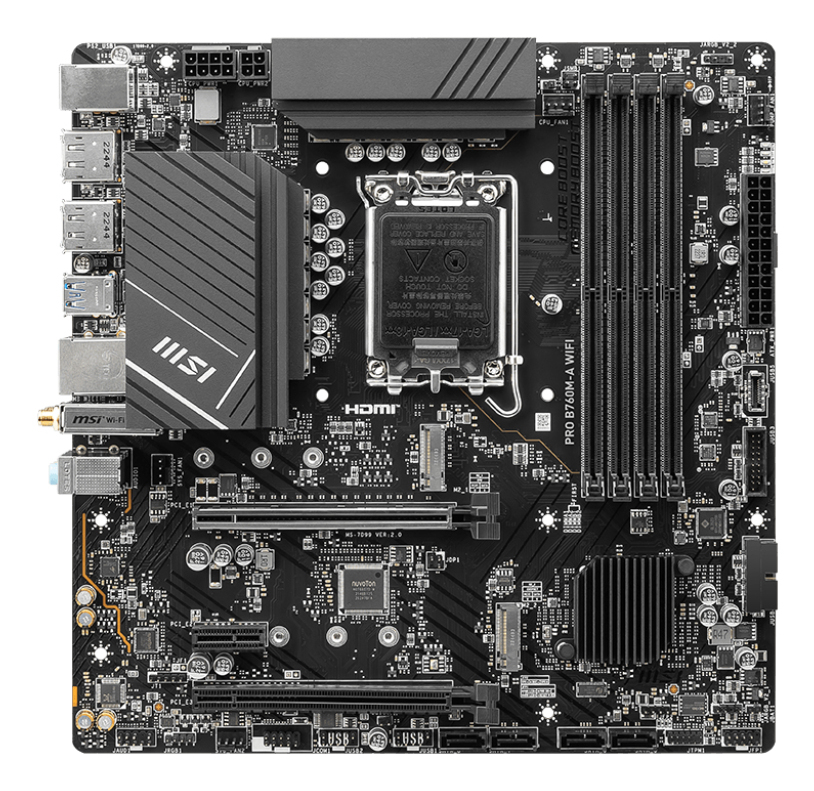

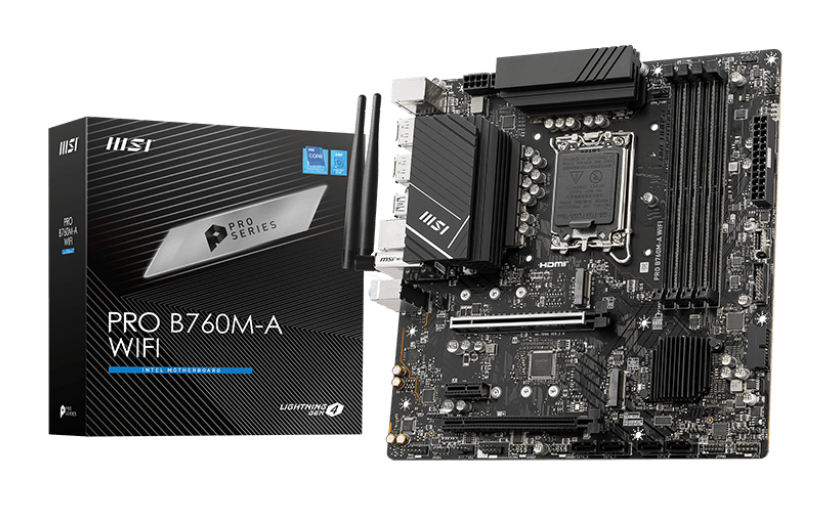

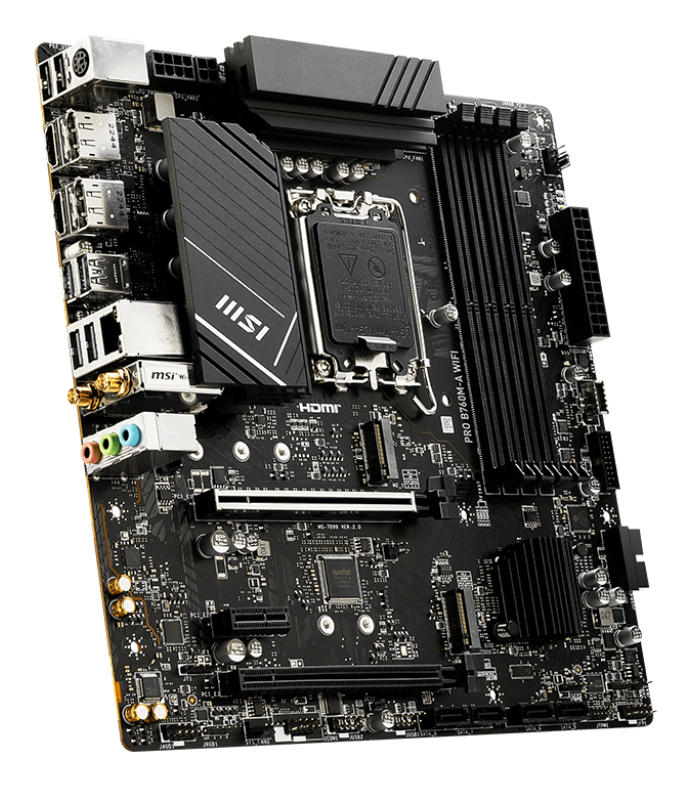

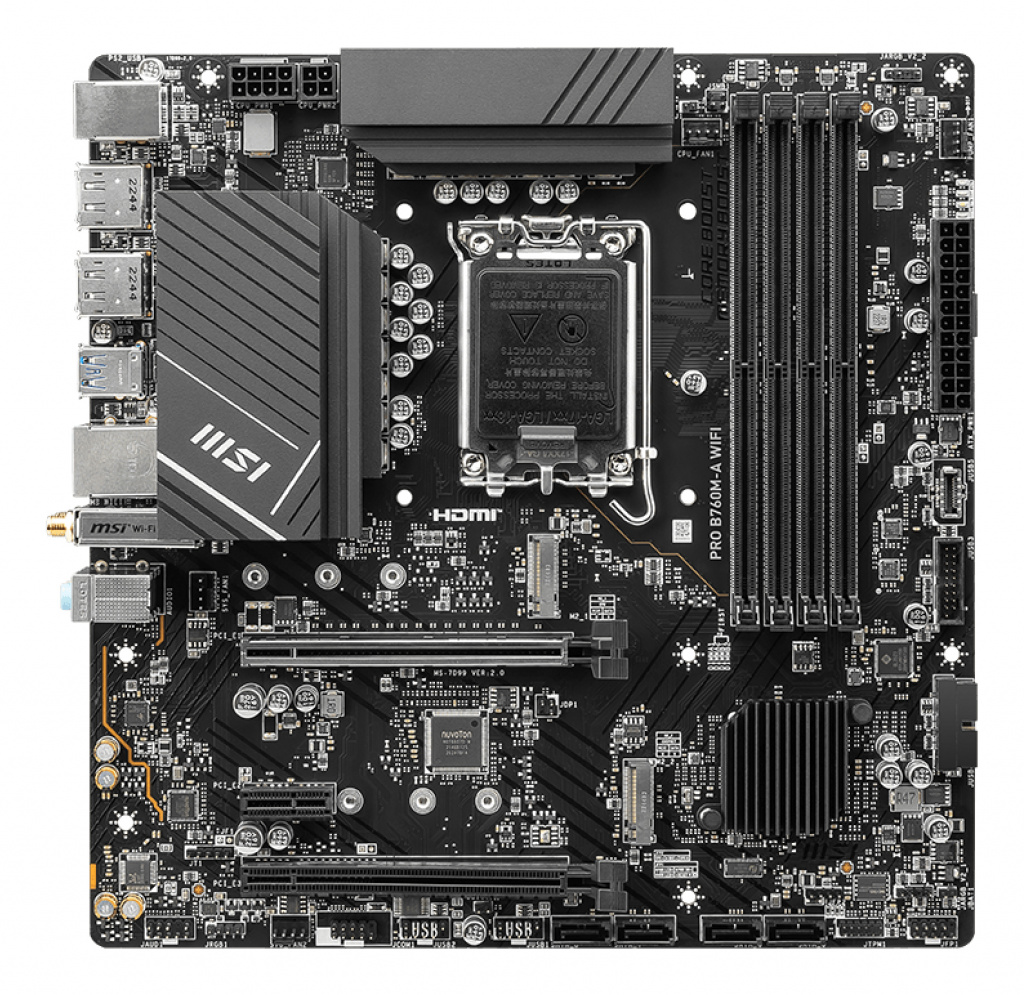

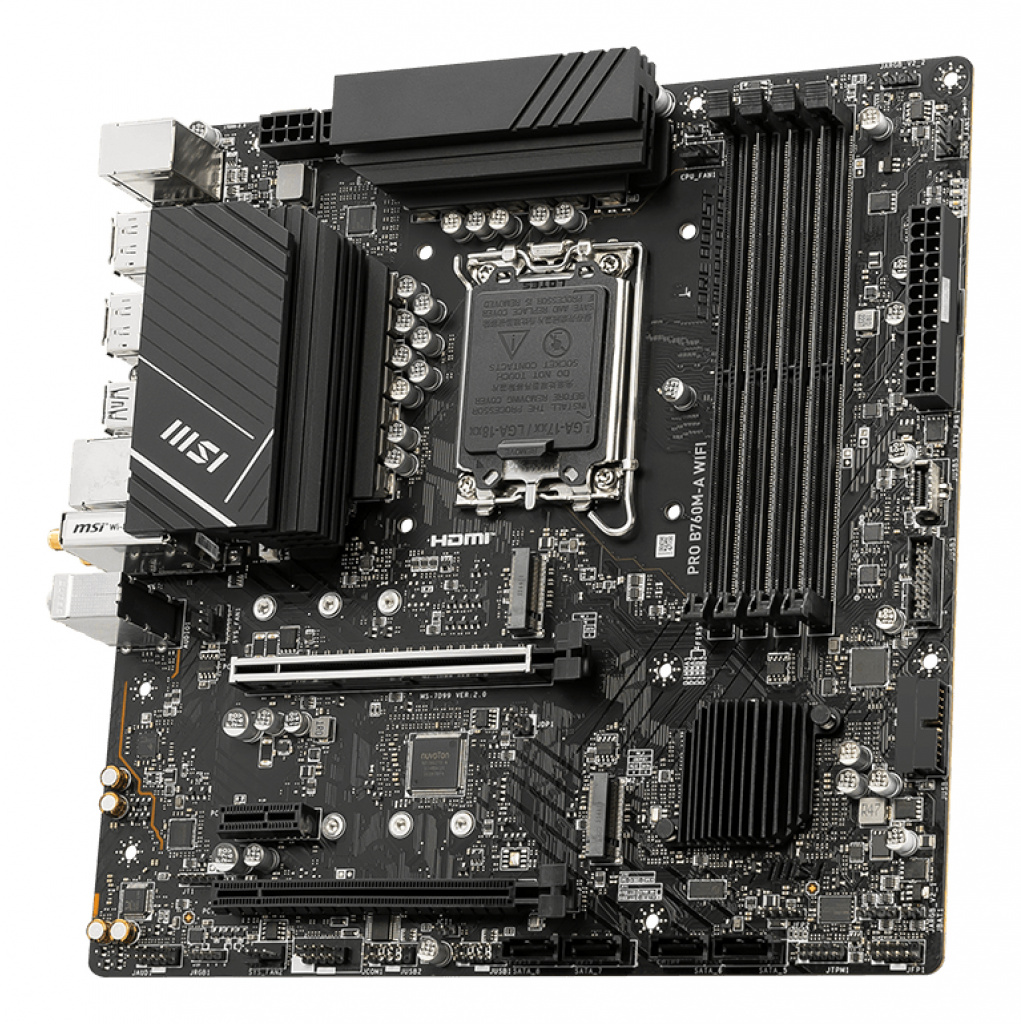

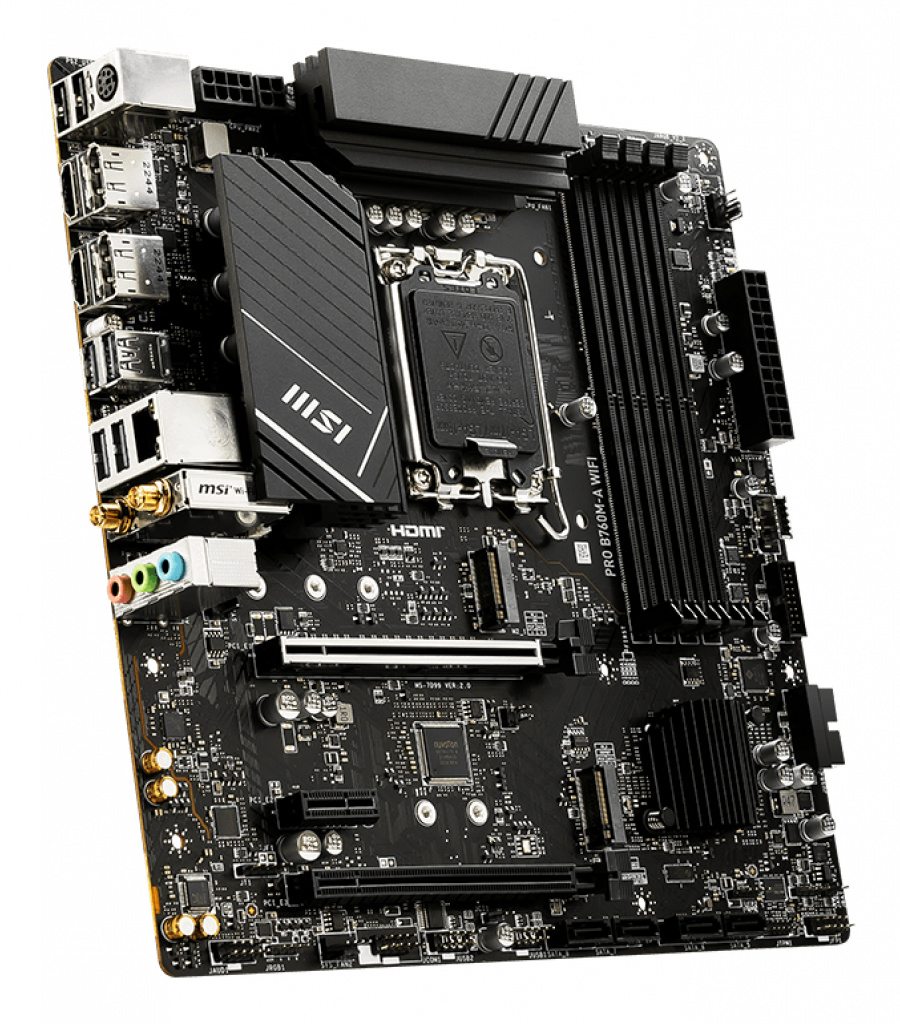

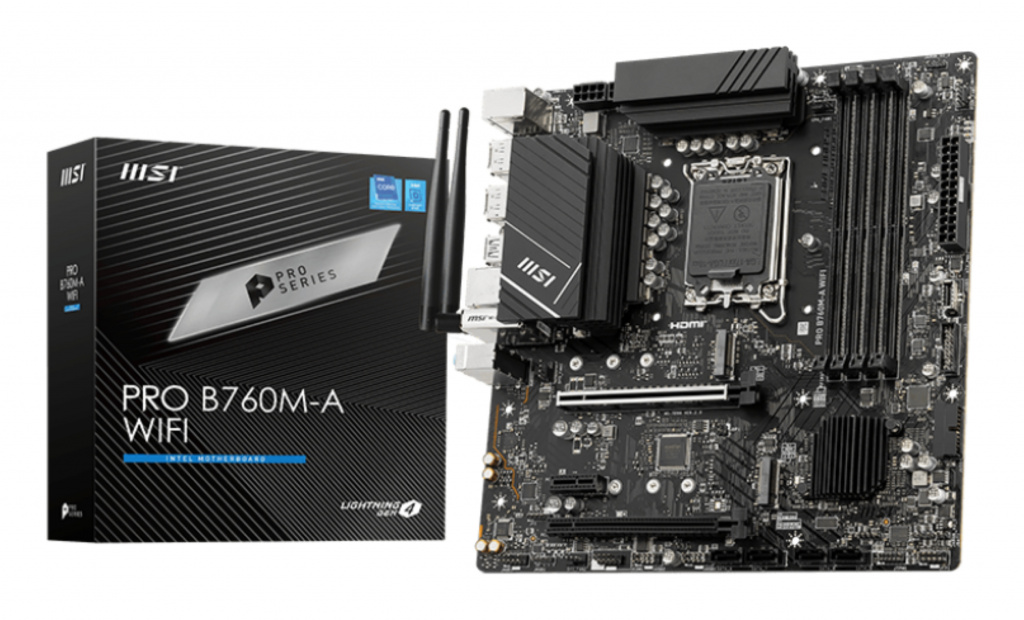

PRO B790M-A WIFI
PRO B760M-A WIFI is designed with tons of flexible tools and convenient Wi-Fi solution with DDR5 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
| Vægt | 1,0000 kg |
|---|---|
| Processorproducent | Intel |
| Brand | MSI |
| State | Default |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Pentium® Gold |
| Maksimalt antal SMP-processorer | 1 |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 192 GB |
| Hukommelses slots type | DIMM |
| Hukommelseskanaler | To-kanals |
| Understøttede hukommelsesclock-hastigheder | 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz |
| USB 2.0-stik | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 4 |
| Antal SATA III-stik | 4 |
| Lydstik på frontpanel | Ja |
| Stik til frontpanel | Ja |
| ATX strømstrik (24 stikben) | Ja |
| CPU-ventilatorstik | Ja |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet |
| Komponent til | PC |
| Motherboard form faktor | micro ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel B760 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC897 |
| Understøttede Windows-operativsystemer | Windows 10, Windows 11 |
| BIOS-type | UEFI AMI |
| BIOS-hukommelsesstørrelse | 256 Mbit |
| ACPI-version | 6.4 |
| Nulstil CMOS-jumper | Ja |
| System Management BIOS (SMBIOS) version | 3.5 |
| Bredde | 243,8 mm |
| Dybde | 243,8 mm |
| Understøttede lagerdrev brugerflader | M.2, SATA III |
| Antal HDMI-porte | 2 |
| Antal DisplayPorts | 2 |
| Wi-Fi | Ja |
| Understøttede procesorsokler | LGA 1700 |
| RAID-niveauer | 0, 1, 5, 10 |
| TPM-stik | Ja |
| PCI Ekspres x1 (Gen 3.x) slots | 2 |
| Bluetooth | Ja |
| Bluetooth-version | 5.3 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 1 |
| Strømkilde type | ATX |
| Header med RGB-LED-ben | Ja |
| Understøtter RAID | Ja |
| Bedste Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Understøttet hukommelsesur hastighed (maks.) | 6800 MHz |
| ECC сompatibility | NON-ECC |
