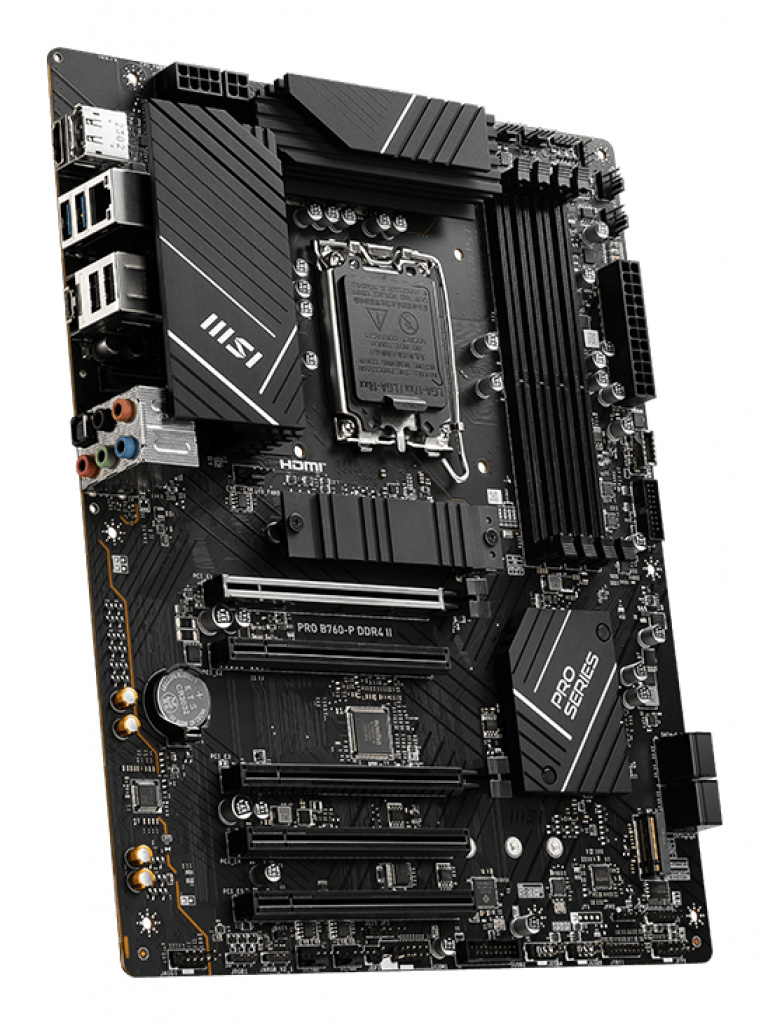

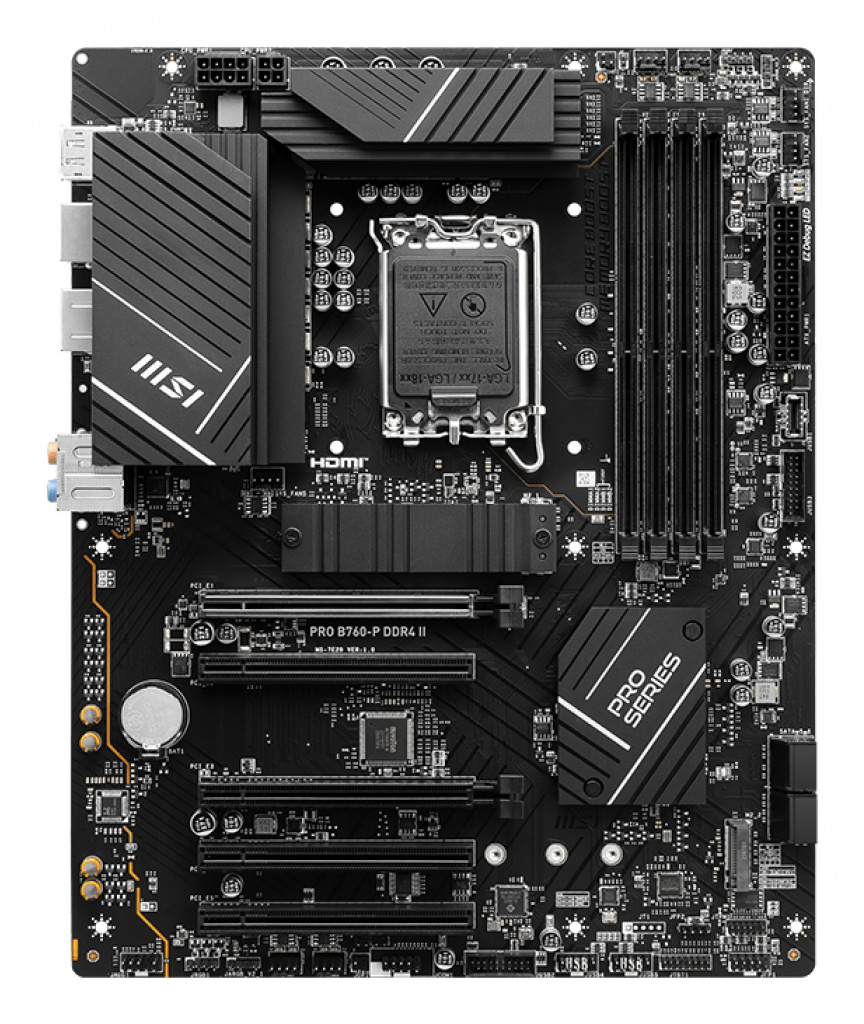

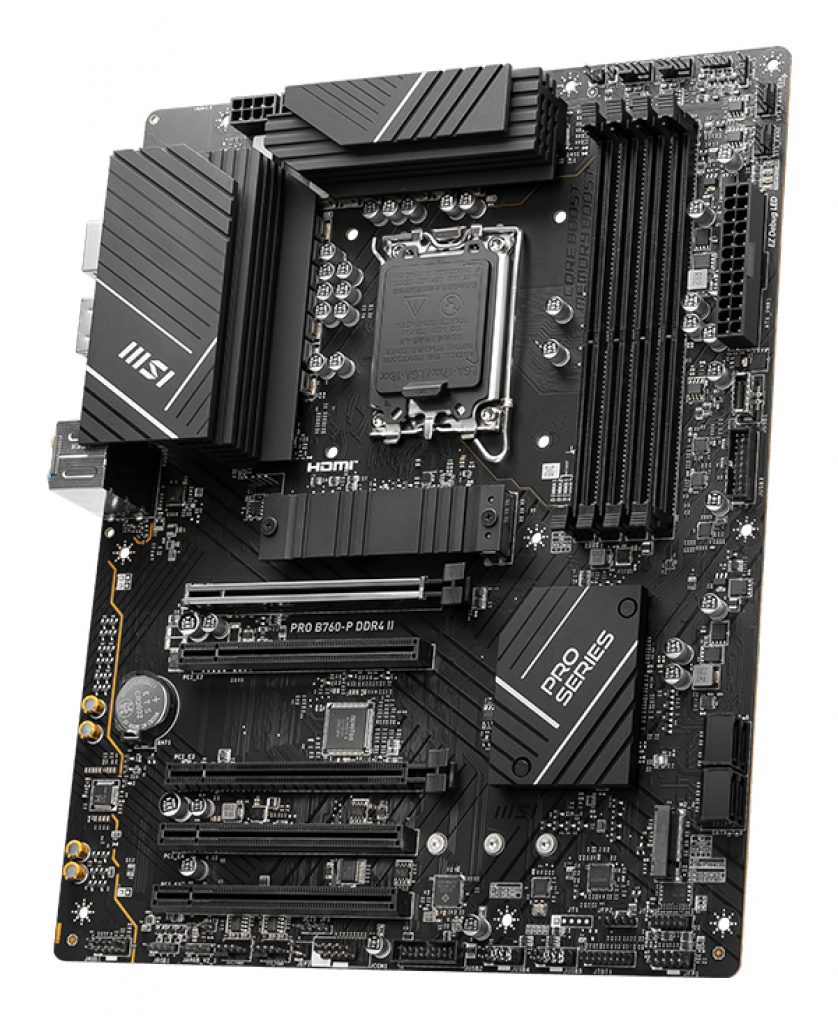

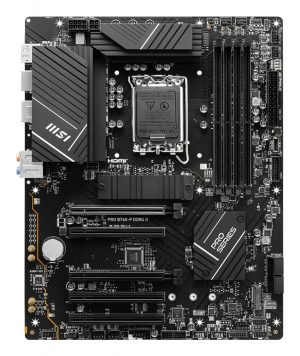

PRO B760-P DDR4 II is designed with tons of flexible tools with DDR4 memory version.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
| Vægt | 1,0000 kg |
|---|---|
| Processorproducent | Intel |
| Brand | MSI |
| State | Default |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Hukommelses slots type | DIMM |
| Hukommelseskanaler | To-kanals |
| Ikke-bufferet hukommelse | Ja |
| USB 2.0-stik | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 4 |
| Antal SATA III-stik | 4 |
| Lydstik på frontpanel | Ja |
| Stik til frontpanel | Ja |
| ATX strømstrik (24 stikben) | Ja |
| CPU-ventilatorstik | Ja |
| 12V strømstik | Ja |
| Antal USB 2.0-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Ethernet LAN-porte (RJ-45) | 1 |
| HDMI-version | 2.1 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet |
| LAN Kontroller | Realtek RTL8125-BG |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel B760 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC897 |
| Understøttede Windows-operativsystemer | Windows 10 x64, Windows 11 x64 |
| Antal M.2 (M) slots | 2 |
| Bredde | 243,8 mm |
| Dybde | 304,8 mm |
| Kabler inkluderet | SATA |
| Drivere inkluderet | Ja |
| Understøttede lagerdrev brugerflader | SATA III |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| Wi-Fi | Ingen |
| RAID-niveauer | 0, 1, 5, 10 |
| PCI Ekspres x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 1 |
| DisplayPort-version | 1.4 |
| Ikke-fejlkorrigerende kode | Ja |
| Indbrudsttik til kabinet | Ja |
| Understøtter RAID | Ja |
| S/PDIF-udgangsstik | Ja |
| PCI Express x1 (Gen 4.x) slots | 2 |
| Understøttet hukommelsesur hastighed (maks.) | 5333 MHz |
| PCI Express x4 (Gen 4.x)-stik | 1 |
| Strømstik til ventilator | Ja |
| ECC сompatibility | NON-ECC |
