Add a Power-over-Ethernet (PoE) 2.5Gbps Port to a PCI Express-enabled Computer
This 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.
Power Over Ethernet
The PCIe Ethernet card supports the IEEE 802.3af and IEEE 802.3at (Type 1 and Type 2) standards for Power Sourcing Equipment (PSE) and can deliver up to 48V DC and 25.5W of power to compliant Powered Devices (PD). This flexibility eliminates the need for a separate power supply or Power Over Ethernet injector for remote networked devices such as IP cameras, access control devices, remote kiosks, and wireless access points.
Increased Network Speed
The PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content – while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.
Enhance Existing Hardware

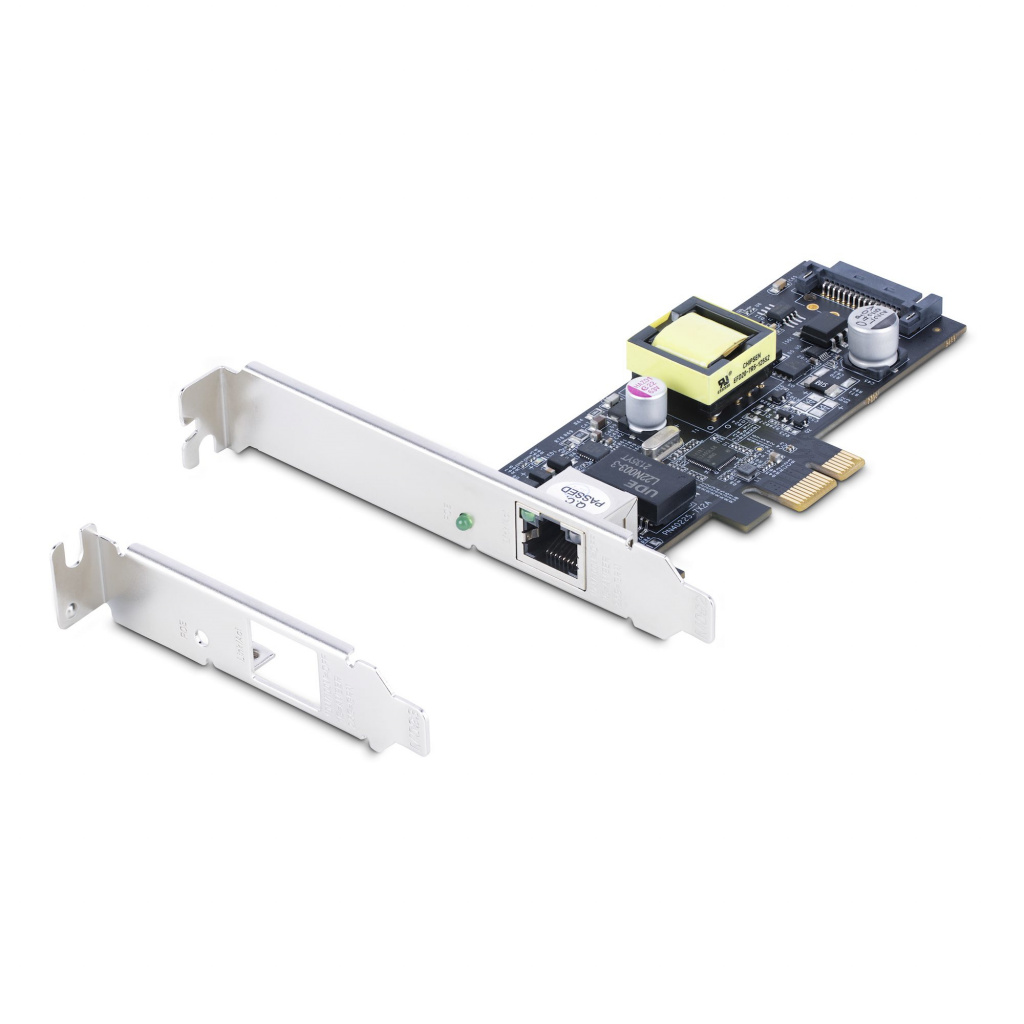

The network interface card connects via an available x1 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, and Linux.
This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.
The StarTech.com Advantage
| Vægt | 0,0000 kg |
|---|---|
| Forbindelsesteknologi | Ledningsført |
| Brand | StarTech.com |
| State | Default |
| Værtsgrænseflade | PCI Express |
| Grænseflade | Ethernet |
| Ethernet LAN-porte (RJ-45) | 1 |
| Maksimal dataoverførselshastighed | 2500 Mbit/s |
| Netværksstandarder | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Ethernet LAN-datahastigheder | 10,100,1000,2500 Mbit/s |
| Intern | Ja |
| Komponent til | PC/server |
| Produktfarve | Sort |
| LED-indikatorer | Ja |
| Driftstemperatur (T-T) | 0 – 55 °C |
| Opbevaringstemperatur (T-T) | -10 – 70 °C |
| Bredde | 54 mm |
| Dybde | 119 mm |
| Højde | 16 mm |
| Chipsæt | Intel I225-V |
| Understøttede Windows-operativsystemer | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Wind |
| Understøttede Linux-operativsystemer | Ja |
| Relativ luftfugtighed ved drift (H-H) | 5 – 90% |
| Hurtig installationsvejledning | Ja |
| PCI version | 2.0 |
| Andre understøttede operativsystemer | VMware vSphere ESXi |
| Understøttede operativsystemer til servere | Windows Server 2019, Windows Server 2022 |
| Vægt | 62 g |
| Pakkebredde | 142 mm |
| Pakkedybde | 170 mm |
| Pakkehøjde | 30 mm |
| Pakkevægt | 70 g |
| Wake-on-LAN klar | Ja |
| Servicekvalitet support (QoS) | Ja |
| Overholdelse af bæredygtighed | Ja |
| Power over Ethernet (PoE) porte, antal | 1 |
| Udgangsspænding | 48 V |
| Antal SATA strømstik | 1 |
| Compliance certificates | RoHS |
