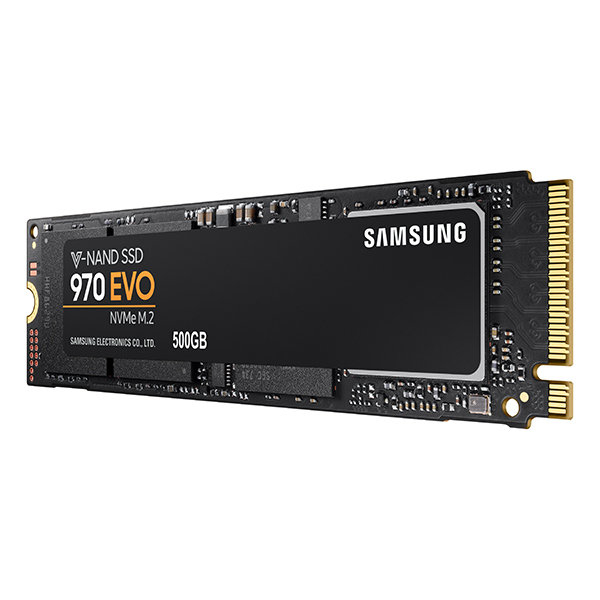

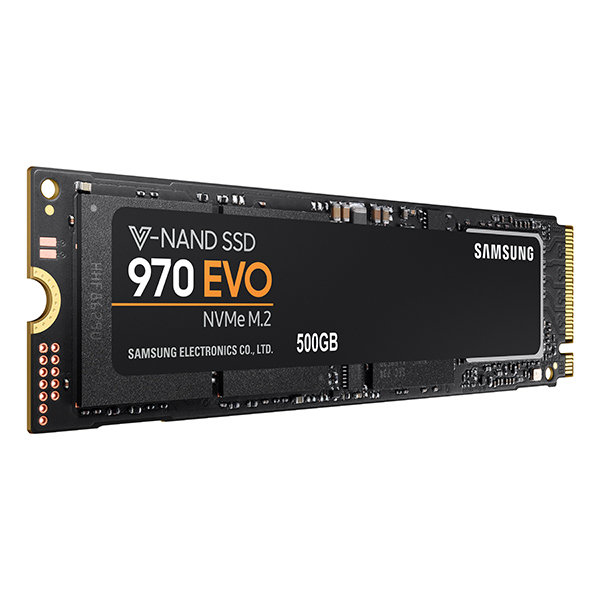

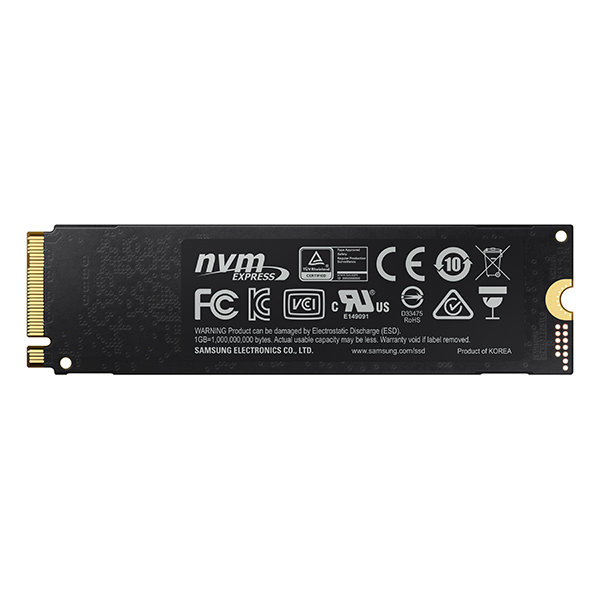

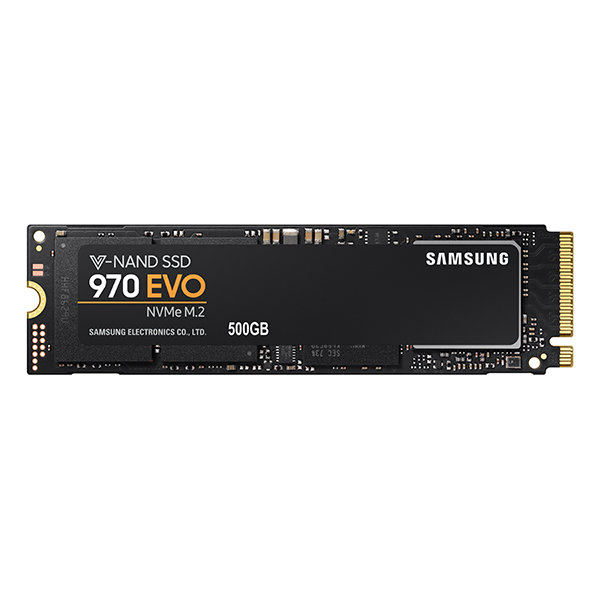

Samsung 970 EVO 500 GB M.2 PCI Express 3.0 NVMe MLC

At a Glance
Featuring our latest V-NAND technology and a newly enhanced Phoenix controller, Samsung 970 EVO Series NVMe M.2 SSDs deliver outstanding performance in Non-Volatile Memory Express (NVMe), with exceptionally fast sequential speeds outperforming our previous 960 EVO models. Plus, Samsung’s Magician software solution provides advanced functionality for you to manage, monitor and maintain your drive.

This model is packaged in a simple white box to support the needs of our solution providers.

– NVMe speeds up sequential read/write performance, while Samsung TurboWrite technology accelerates write speeds even further
– Compact M.2 form factor ready for high-end computing
– Samsung Magician software for SSD management, including automatic firmware updates
– Ideal for high-performance client PC applications (not designed for server or data center applications and warranty does not support such usage)

Non-Volatile Memory Express (NVMe)
970 EVO 500GB NVMe SSDs with a newly enhanced Phoenix controller outperform our previous 960 EVO 500GB model with exceptionally fast sequential read/write speeds up to 3,400/2,300 MB/s. They also support PCI Express® (PCIe) Gen 3 x 4 lanes to provide high bandwidth and low latency, making them perfect for business professionals who need cutting edge-performance for high-end computing.

TurboWrite Technology
Samsung’s intelligent TurboWrite technology helps to maximize your computing ability, accelerating write speeds above and beyond the already exceptionally fast speeds of NVMe.

Dynamic Thermal Guard
This feature constantly monitors and works to maintain ideal temperatures to protect the integrity of your data and safeguard from overheating. When temperatures rise above an optimal threshold, the Dynamic Thermal Guard automatically throttles them down to protect data while maintaining responsiveness.

5-Year Limited Warranty
Secure your investment with a 5-year limited warranty up to 300TBW. The 970 EVO Series also minimizes performance degradation over time, in order to provide sustained performance for high-end business use.

Professional-Quality Drive Management
With the Samsung Magician software solution, you get advanced functionality to manage, monitor and maintain your 970 EVO SSDs. Magician provides personalized firmware checking and additional functions tailored for individual drives. It even updates the firmware automatically to make sure that the drive’s performance stays up to date.

V-NAND Technology
Samsung’s proprietary V-NAND flash memory helps to overcome the limitations of conventional planar NAND architecture. It stacks 64 cell layers vertically over one another rather than trying to fit itself onto a fixed horizontal space, in order to provide high density and performance with a small footprint.

SSD Data Security
This Drive includes an AES-256-bit hardware based, full disk encryption engine that secures your data without sacrificing performance and is compliant with TCG/OPAL V2.0 and IEEE1667.

Highly-Efficient Power Management
Thanks to exceptionally low active power consumption, you can work efficiently for long periods of time. Device Sleep Mode is also supported for ultra-thin laptop PCs and high-end desktop main boards.

Samsung SSD Components
Samsung’s solid state drives are built entirely from Samsung components, leveraging our extensive OEM expertise to allow complete, optimized integration.
