BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

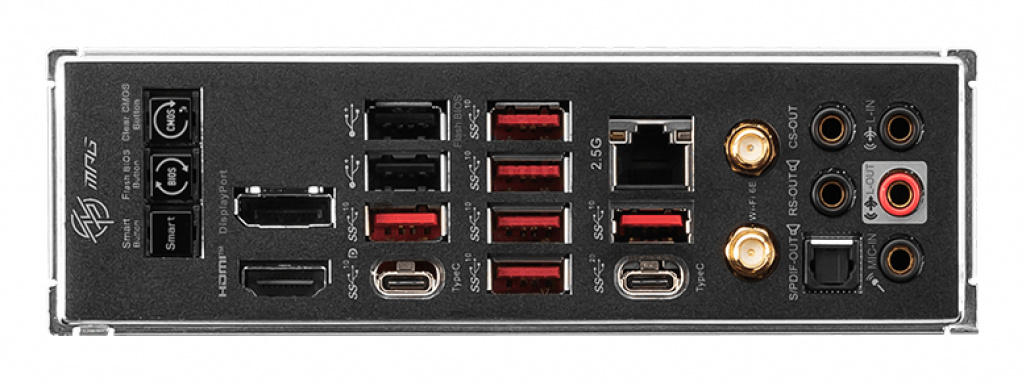

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
GLOW YOUR PC
Splash on some color and vibrant RGB lighting effects using MSI Mystic Light with 16.8 million colors and fancy LED effects. MSI Mystic Light provides you complete control of RGB lighting of your PC in one software.
HIGH-BANDWIDTH AND LOW-LATENCY NETWORK
MSI’s premium network solution provides incredible data transfer speed for demanding users.
| Vægt | 2,5000 kg |
|---|---|
| Processorproducent | AMD |
| Brand | MSI |
| State | Default |
| Processor sokkel | Sokkel AM5 |
| Kompatibel processor serie | AMD Ryzen™ 7 |
| Maksimalt antal SMP-processorer | 1 |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Hukommelses slots type | DIMM |
| Hukommelseskanaler | To-kanals |
| USB 2.0-stik | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 4 |
| Antal SATA III-stik | 6 |
| Stik til frontpanel | Ja |
| CPU-ventilatorstik | Ja |
| Antal USB 2.0-porte | 6 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 6 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal DVI-D-porte | 0 |
| HDMI-version | 2.1 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet |
| LAN Kontroller | Realtek RTL8125-BG |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | AMD |
| Bundkort chipsæt | AMD X670 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC4080 |
| Understøttede Windows-operativsystemer | Windows 10 Home x64, Windows 11 x64 |
| Bredde | 304,8 mm |
| Dybde | 243,8 mm |
| Kabler inkluderet | SATA |
| Drivere inkluderet | Ja |
| Understøttede lagerdrev brugerflader | M.2, SATA II |
| Antal SATA stik | 0 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 2 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| S/PDIF-udgang | Ja |
| Wi-Fi | Ja |
| RAID-niveauer | 0, 1, 10 |
| Bluetooth | Ja |
| Bluetooth-version | 5.2 |
| Understøttet datalagringsdrev typer | HDD & SSD |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 4 |
| DisplayPort-version | 1.4 |
| Indbrudsttik til kabinet | Ja |
| Header med RGB-LED-ben | Ja |
| Antal VGA-porte (D-sub) | 0 |
| Bedste Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Produktfarve | Sort |
| Lydstik | Ja |
| On-board grafikkort | Ingen |
| Antal USB 3.2 Gen 2x2 type-C-porte | 1 |
| Antal SATA II stik | 0 |
| PCI Express x16 slots | 3 |
| ECC сompatibility | NON-ECC |
| Antal mSATA-porte | 0 |
