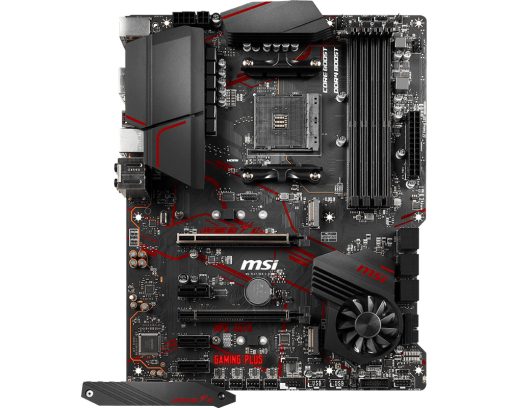

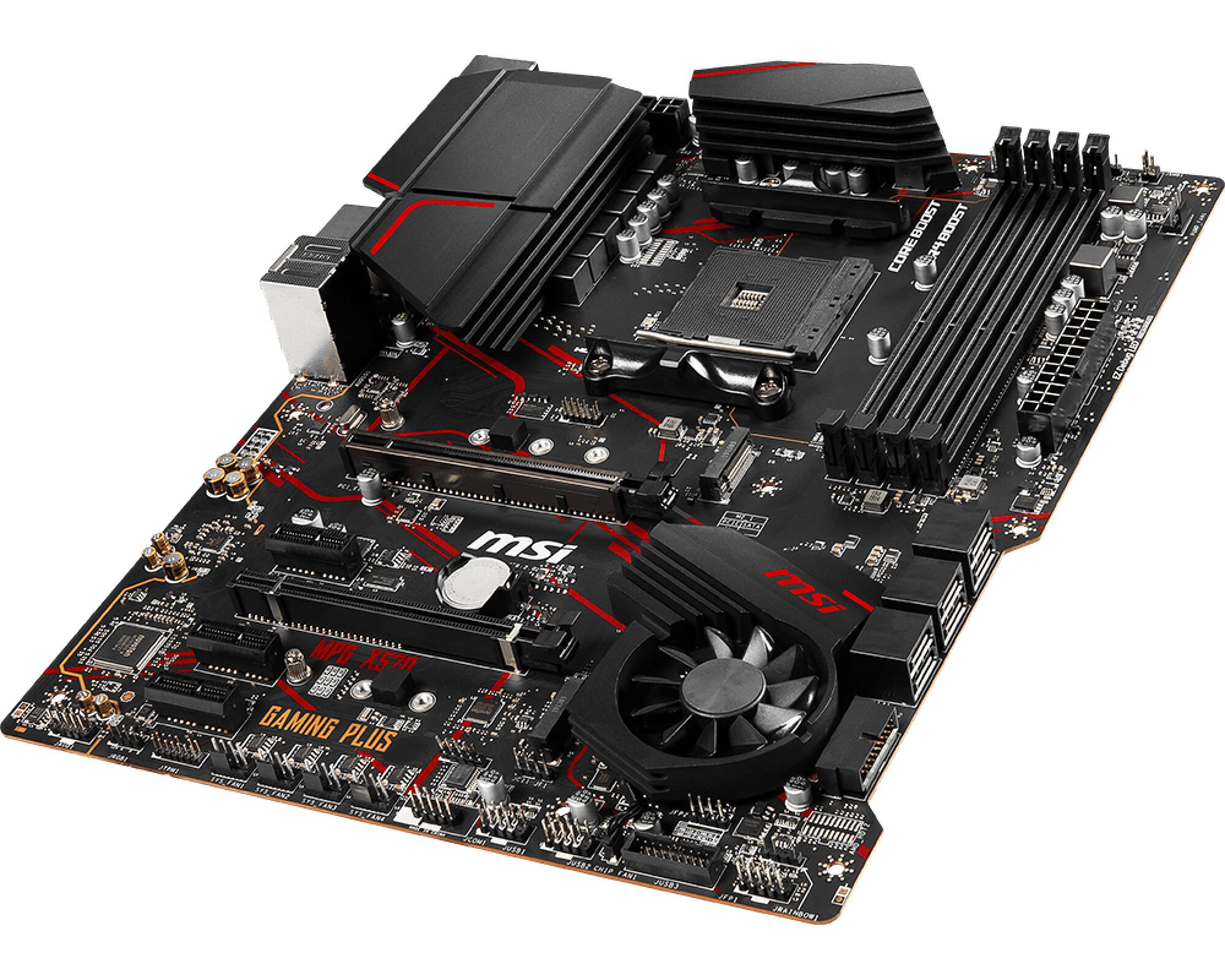

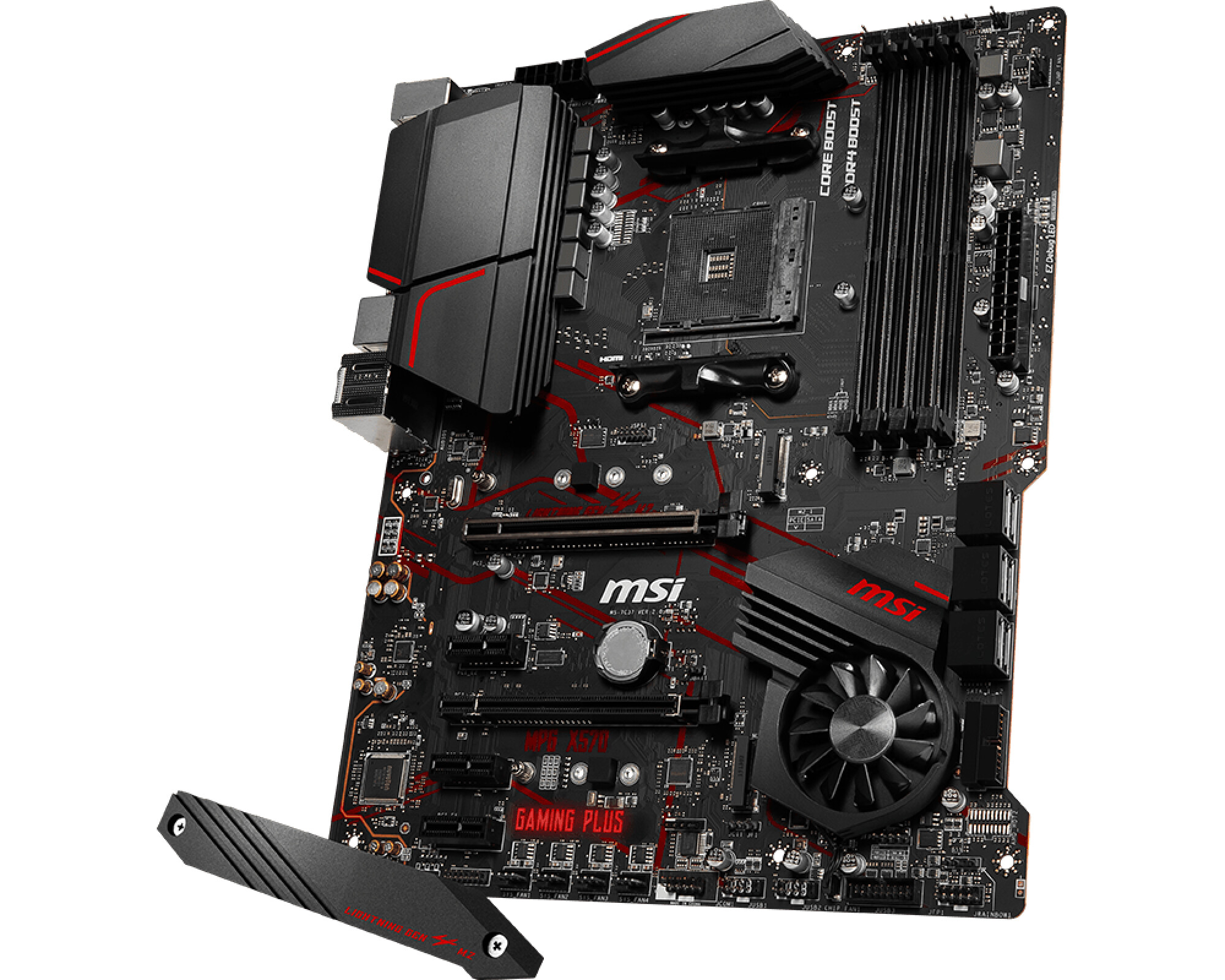

Satisfying gamers with what they really need, MPG X570 GAMING PLUS is equipped with Extended Heatsink Design, Frozr Heatsink Design, Core boost, Lightning Gen4 M.2, M.2 Shield Frozr accessory, Turbo USB and MSI latest Dragon Center
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
Extended Heatsink Design
MSI extended PWM and enhanced circuit design ensures even high-end processors to run in full speed.
Lightning Gen4 solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.

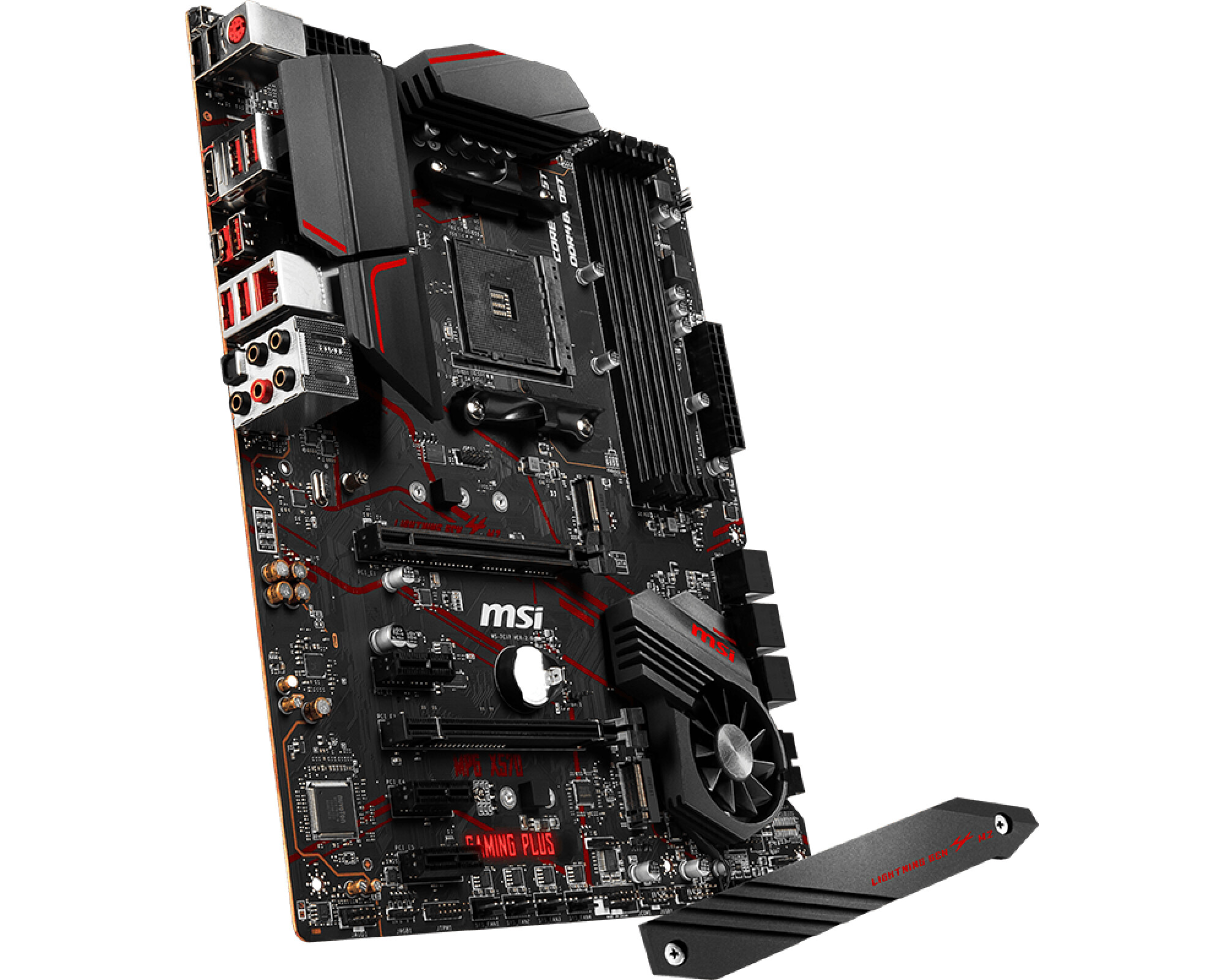

M.2 Shield FROZR
M.2 thermal accessory. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
DDR4 Boost
Advanced technology to deliver pure data signals for the best gaming performance and stability.
Audio Boost 4
Isolated audio with a high quality audio processor for the most immersive gaming experience.
Flash BIOS Button
Simply use a USB key to flash any BIOS within seconds, without installing a CPU, memory or graphics card.
| Vægt | 1,0000 kg |
|---|---|
| Processorproducent | AMD |
| Brand | MSI |
| State | Default |
| Processor sokkel | Stik AM4 |
| Kompatibel processor serie | AMD Ryzen 2000 Series, AMD Ryzen 3000 Series |
| Maksimalt antal SMP-processorer | 1 |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Hukommelses slots type | DIMM |
| Hukommelseskanaler | To-kanals |
| Understøttede hukommelsesclock-hastigheder | 1866,2133,2400,2666 MHz |
| Ikke-bufferet hukommelse | Ja |
| Understøttelse af parallel behandlingsteknologi | 2-Way CrossFireX |
| Maksimal opløsning | 4096 x 2160 pixel |
| USB 2.0-stik | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 2 |
| Antal SATA III-stik | 6 |
| Lydstik på frontpanel | Ja |
| Stik til frontpanel | Ja |
| ATX strømstrik (24 stikben) | Ja |
| CPU-ventilatorstik | Ja |
| Antal kabinetventilatorstik | 4 |
| 12V strømstik | Ja |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 2 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 3 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Antal PS/2-porte | 1 |
| HDMI-version | 1.4 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | Gigabit Ethernet |
| LAN Kontroller | Realtek RTL8111H |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | AMD |
| Bundkort chipsæt | AMD X570 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC1220 |
| Understøttede Windows-operativsystemer | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64 |
| Antal M.2 (M) slots | 2 |
| Nulstil CMOS-jumper | Ja |
| Harmoniseret systemkode (HS) | 84733020 |
| Bredde | 304 mm |
| Dybde | 243 mm |
| Kabler inkluderet | SATA |
| Drivere inkluderet | Ja |
| Understøttede lagerdrev brugerflader | SATA III |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Antal HDMI-porte | 1 |
| S/PDIF-udgang | Ja |
| Wi-Fi | Ingen |
| RAID-niveauer | 0, 1, 10 |
| TPM-stik | Ja |
| PCI Ekspres x1 (Gen 3.x) slots | 3 |
| Indbrudsttik til kabinet | Ja |
| Header med RGB-LED-ben | Ja |
| Antal monteringshuller | 9 |
| Seriel port overskrifter | 1 |
| Digital akustisk og optisk udgang | 1 |
| Hurtig installationsvejledning | Ja |
| ECC сompatibility | ECC & ikke-ECC |
