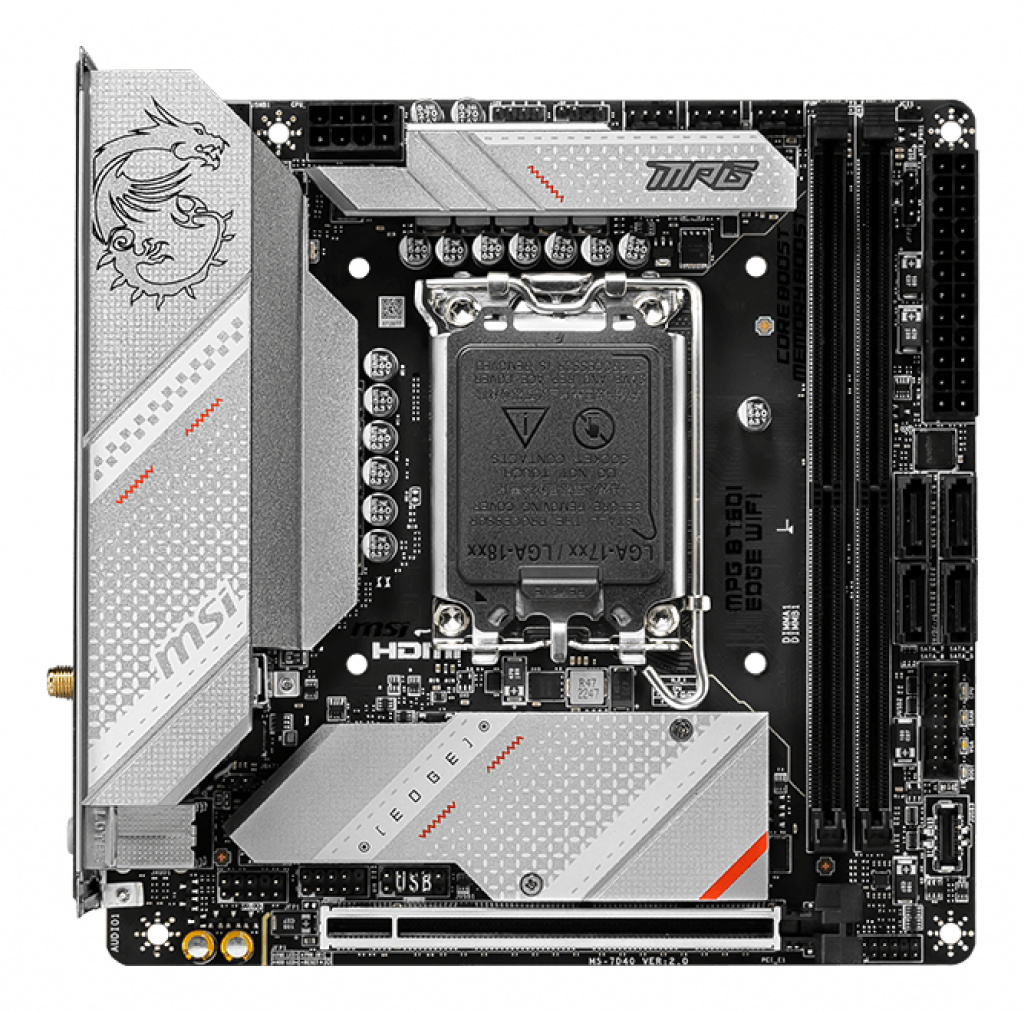

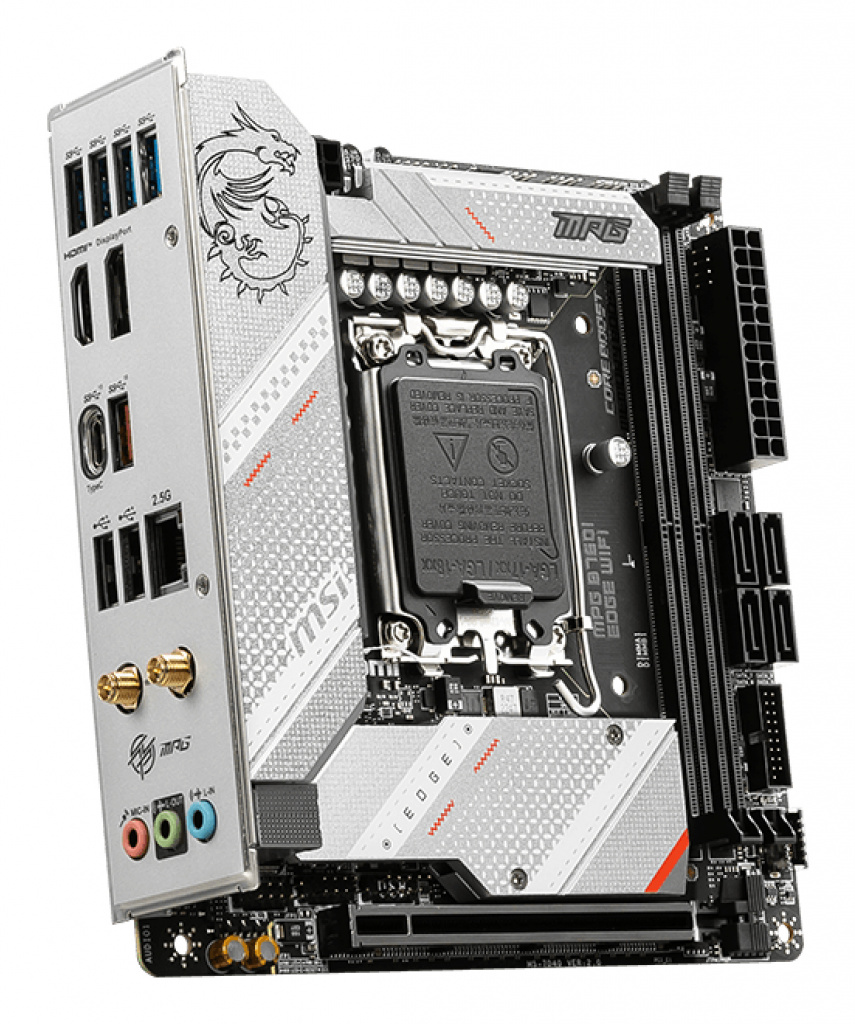

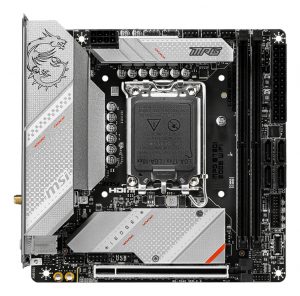

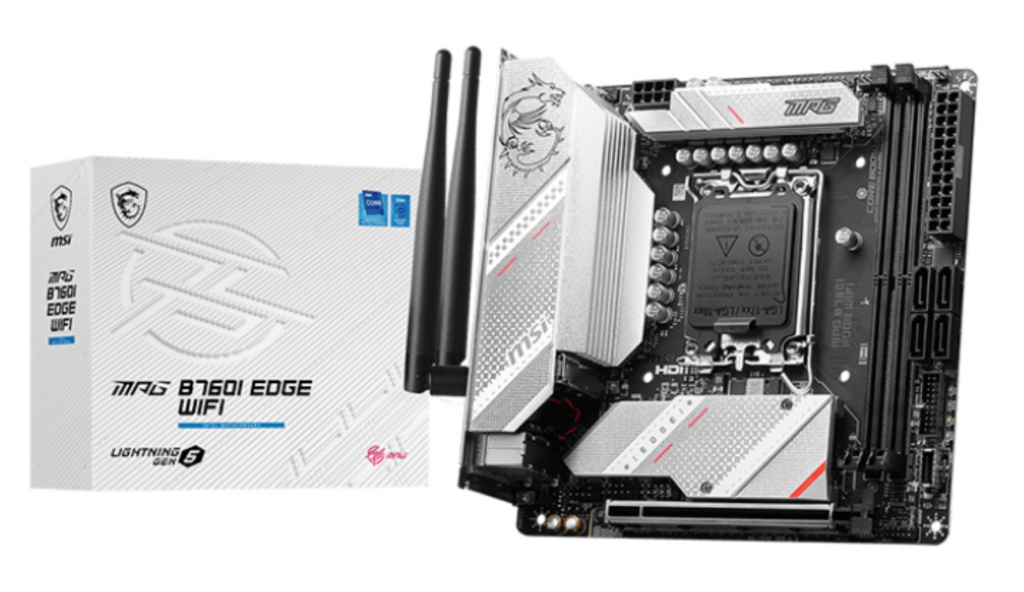

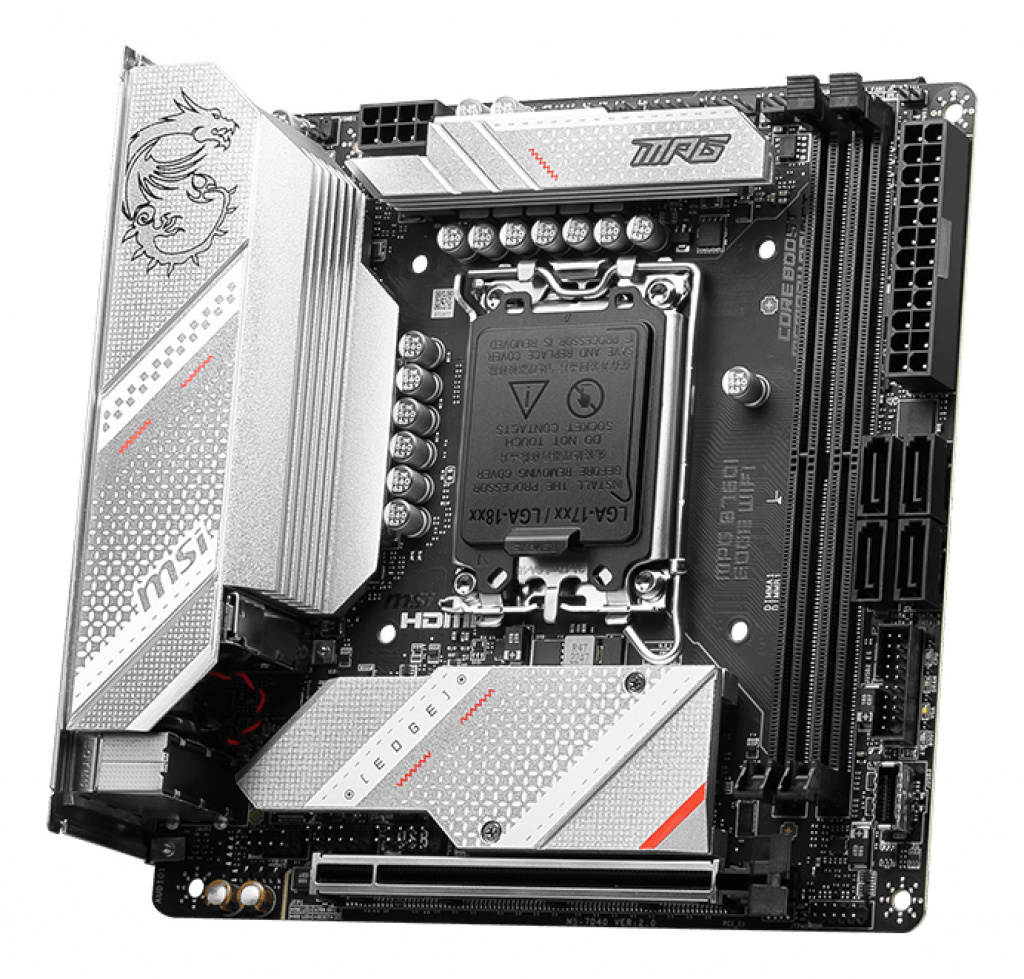

MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.
BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.
Pump Fan Support
Control watercooling pump speeds for best flow and noise control.
7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.
M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.
8-Layer Server Grade PCB
8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
| Vægt | 1,0000 kg |
|---|---|
| Processorproducent | Intel |
| Brand | MSI |
| State | Default |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Pentium® Gold |
| Maksimalt antal SMP-processorer | 1 |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 2 |
| Maksimal intern hukommelse | 96 GB |
| Hukommelses slots type | DIMM |
| Hukommelseskanaler | To-kanals |
| Understøttede hukommelsesclock-hastigheder | 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400,5200, 5000, 4800 MHz |
| USB 2.0-stik | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 2 |
| Antal SATA III-stik | 4 |
| Lydstik på frontpanel | Ja |
| Stik til frontpanel | Ja |
| ATX strømstrik (24 stikben) | Ja |
| CPU-ventilatorstik | Ja |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 1 |
| Ethernet LAN-porte (RJ-45) | 1 |
| HDMI-version | 2.1 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet |
| Komponent til | PC |
| Motherboard form faktor | mini ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel B760 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC897 |
| Understøttede Windows-operativsystemer | Windows 10, Windows 11 |
| Antal M.2 (M) slots | 2 |
| BIOS-type | UEFI AMI |
| BIOS-hukommelsesstørrelse | 256 Mbit |
| System Management BIOS (SMBIOS) version | 3.5 |
| Bredde | 170 mm |
| Dybde | 170 mm |
| Understøttede lagerdrev brugerflader | M.2, SATA III |
| Antal HDMI-porte | 2 |
| Antal DisplayPorts | 1 |
| Wi-Fi | Ja |
| Understøttede procesorsokler | LGA 1700 |
| RAID-niveauer | 0, 1, 5, 10 |
| TPM-stik | Ja |
| PCI Ekspres x1 (Gen 3.x) slots | 2 |
| Bluetooth | Ja |
| Bluetooth-version | 5.3 |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 1 |
| DisplayPort-version | 1.4 |
| Strømkilde type | ATX |
| Header med RGB-LED-ben | Ja |
| Understøtter RAID | Ja |
| Bedste Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Produktfarve | Sort, Sølv |
| On-board grafikkort | Ingen |
| Understøttet hukommelsesur hastighed (maks.) | 7200 MHz |
| ECC сompatibility | NON-ECC |
