The MAG series fights alongside gamers in pursuit of honor.
With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
MSI motherboards let you manage speeds and temperatures for all your system and CPU fans in BIOS and software with a simplified graphical interface. You can also set up to 4 temperature targets, which will adjust the fan speeds automatically.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
DIY 2.0 – INTEGRATING WITH THE SYSTEM ENVIRONMENT
Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.
Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a proper value by adopting MSI AI ENGINE.
MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.
LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.
SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

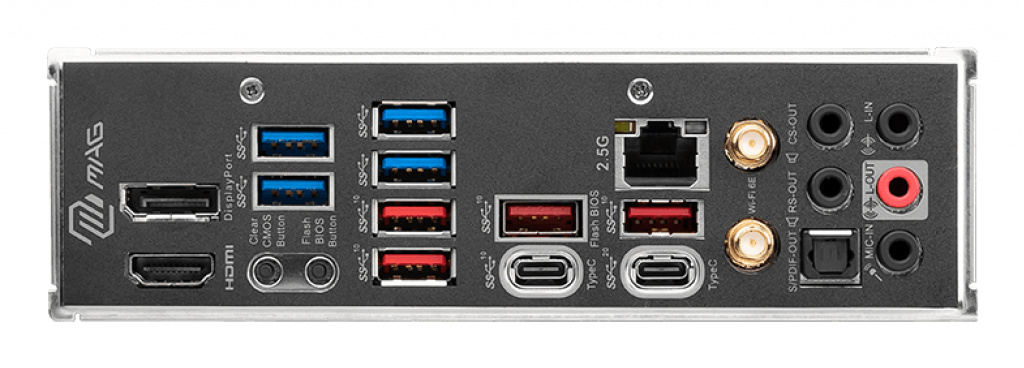

DOUBLE BANDWIDTH WITH LIGHTNING USB 3.2 GEN 2X2 20G
Using USB 3.2 devices has never been faster! MPG X670 series motherboards offer a wide variety of options to connect and boost your USB devices, offering never before seen USB speeds up to 20Gb/s when connecting the Rear USB Type-C.
| Vægt | 1,0000 kg |
|---|---|
| Processorproducent | Intel |
| Brand | MSI |
| State | Default |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Pentium® Gold |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 192 GB |
| Hukommelseskanaler | To-kanals |
| Understøttede hukommelsesclock-hastigheder | 4800,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz |
| Ikke-bufferet hukommelse | Ja |
| Understøttelse af parallel behandlingsteknologi | Ikke understøttet |
| USB 2.0-stik | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 2 |
| Antal SATA III-stik | 7 |
| Lydstik på frontpanel | Ja |
| Stik til frontpanel | Ja |
| CPU-ventilatorstik | Ja |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 4 |
| Ethernet LAN-porte (RJ-45) | 1 |
| HDMI-version | 2.1 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel Z790 |
| Lyd-output kanaler | 7.1 kanaler |
| Understøttede Windows-operativsystemer | Windows 10 x64, Windows 11 x64 |
| Antal M.2 (M) slots | 4 |
| BIOS-type | UEFI AMI |
| BIOS-hukommelsesstørrelse | 256 Mbit |
| ACPI-version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Bredde | 243,8 mm |
| Dybde | 304,8 mm |
| Kabler inkluderet | SATA |
| Understøttede lagerdrev brugerflader | M.2, PCI Express |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| S/PDIF-udgang | Ja |
| Wi-Fi | Ja |
| Understøttede procesorsokler | LGA 1700 |
| RAID-niveauer | 0, 5, 10 |
| TPM-stik | Ja |
| Bluetooth | Ja |
| Bluetooth-version | 5.3 |
| Understøttet datalagringsdrev typer | HDD & SSD |
| USB 3.2 Gen 2 (3.1 Gen 2) -stik | 1 |
| DisplayPort-version | 1.4 |
| Indbrudsttik til kabinet | Ja |
| Header med RGB-LED-ben | Ja |
| Understøtter RAID | Ja |
| Bedste Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Produktfarve | Sort |
| Antal USB 3.2 Gen 2x2 type-C-porte | 1 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Understøttet hukommelsesur hastighed (maks.) | 7200 MHz |
| Maksimal intern hukommelse understøttet af processor | 192 GB |
| ECC сompatibility | NON-ECC |
