The MAG series fights alongside gamers in pursuit of honor. With added military-inspired elements in these gaming products, they were reborn as the symbol of sturdiness and durability.
ATX 3.0 COMPATIBLE
It has an output port that is compliant with PCIe 5.0 and Intel PSDG(Power Supply Design Guide) ATX 3.0, also the MAG A750GL PCIE5 power supply can handle up to 2x total power excursion and 3x GPU power excursion.
80 PLUS GOLD CERTIFIED
The efficiency of your power supply directly influences your system’s performance and your power consumption. The 80 PLUS Gold certification promises lower energy consumption and higher efficiency.
COMPACT SIZING
Smaller than typical PSUs on the market, this power supply unit that can save space and make it easier to organize cables in the computer case by freeing up more room inside.
ONLY WHAT YOU NEED
The connectors that required by the build need to be used, significantly reducing cable clutter and simplifying the system’s overall build. Additionally, the included cable pack provides a storage solution for any unused cables.
ALL THE MORE ORGANIZED
Organizing cables is often the most bothersome part of building a PC. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized and has more room for unobstructed airflow.

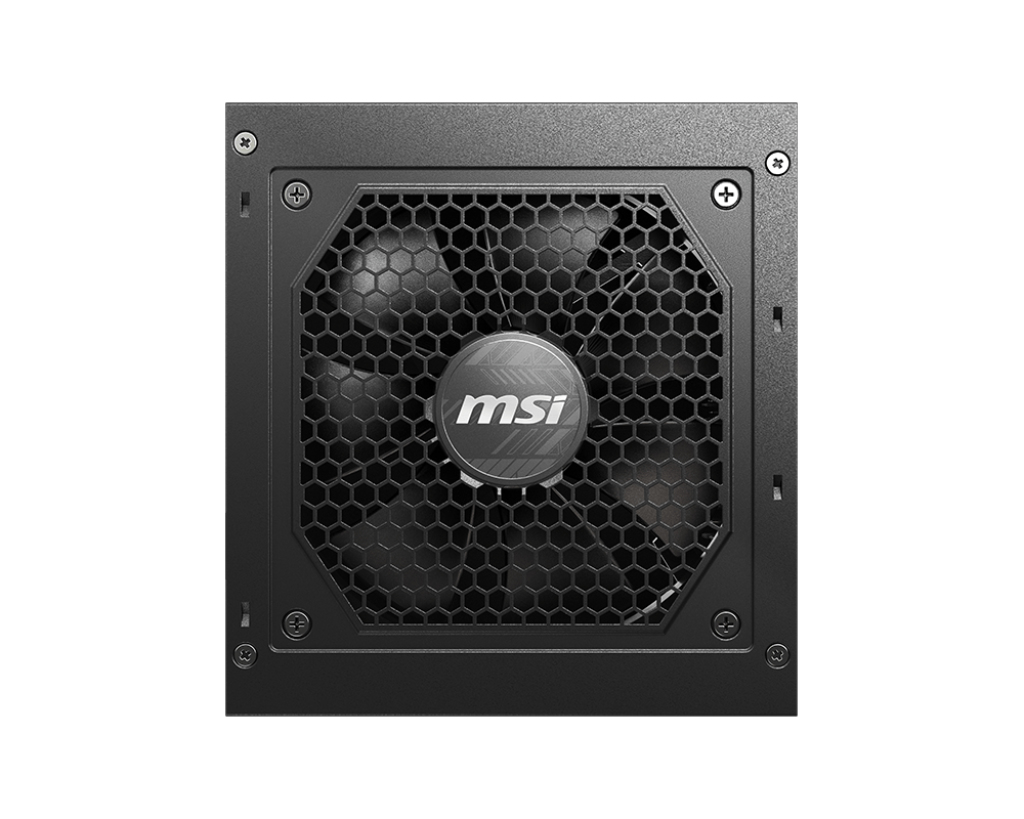

FLUID DYNAMIC BEARING
The power supply’s fan sports a fluid dynamic bearing that perfectly balances cooling performance and noise level.
DC TO DC & FULL BRIDGE
DC to DC and Full bridge be combined to achieve higher conversion efficiency, stable output voltage, and quick voltage adjustment for different usage scenarios, thus providing a stable power supply design.
THE POWER YOU HAVE
The single rail supply of power can properly deliver the power you need. For high-performance graphics cards and CPUs, this power supply’s 5 CPU & PCI-E slots are more than plenty.
PROTECTION MECHANISMS
To make sure the entire system can operate safely and stably at all times, the power supply comes with a number of protection mechanisms to give you the best peace of mind.
| Vægt | 2,7800 kg |
|---|---|
| Total effekt | 750 W |
| Brand | MSI |
| State | Default |
| Vekselstrømsindgangsspænding | 100 – 240 V |
| Vekselstrømsindgangsfrekvens | 47 – 63 Hz |
| Formål | PC |
| Produktfarve | Sort |
| Antal blæsere | 1 blæser(e) |
| Bredde | 150 mm |
| Dybde | 140 mm |
| Højde | 86 mm |
| Harmoniseret systemkode (HS) | 84733020 |
| Strømforsyningenhed (PSU) formfaktor | ATX |
| Kølingstype | Aktiv |
| 80 PLUS certificering | 80 PLUS Gold |
| Strømkorrektionsfaktor (PFC) | Aktiv |
| Kombineret effekt (+3,3 V) | 110 W |
| Kombineret effekt (+12 V) | 744 W |
| Kombineret effekt (+5 V) | 110 W |
| Kombineret effekt (-12V) | 3,6 W |
| Kombineret effekt (+5 VSB) | 12,5 W |
| Maks. udgangsstrøm (+3,3 V) | 20 A |
| Maks. udgangsstrøm (+5 V) | 20 A |
| Maks. udgangsstrøm (-12V) | 0,3 A |
| Maks. udgangsstrøm (+5 VSB) | 2,5 A |
| Effektivitet | 90% |
| Strømbeskyttelsesfunktioner | Overstrøm, Overstrøm, Højspænding, Overophedning, Kortslutning |
| Motherboard, strømstik | 20+4 pin ATX |
| Længde på strømkabel på bundkort | 45 cm |
| Antal SATA strømstik | 8 |
| PCI ekspres strømforbindelser (6+2 pin) | 3 |
| CPU strømstik (4+4 pin) | Ja |
| Kabeltype | Fuldt modulær |
| Ventilator diameter | 12 cm |
| Belysning | Ingen |
| Tænd-/slukkontakt | Ja |
| Pakketype | Kasse |
| Maks. udgangsstrøm (+12 V) | 62 A |
| Perifere (Molex) strømstik (4-pin) | 4 |
| ATX strømstrik (24 stikben) | Ingen |
| EPS-strømstik (4 + 4-benet) | Ja |
| EPS strømstik (8-pin) | Ingen |
| Maksimal indgangsstrøm (@ 110V) | 8 A |
| Maksimal indgangsstrøm (@ 220V) | 4 A |
| ATX strømstik (20+4 pin) | Ingen |
| PCI ekspres strømstik (8-pin) | 0 |
| PCI ekspres strømforbindelser (6-pin) | 0 |
| 4 | 0 |
| PCI Express strømstik (12+4-bens) | 0 |
