Designed with input from industry professionals, this switch is engineered for 1G AV over IP. Enjoy rear-facing ports that ensure a clean integration in AV racks, and pre-configuration for out-of-the-box functionality.
POWERFUL AV SWITCHES MADE SIMPLE
Pre-configured to get you up and running faster
Groundbreaking AV GUI
A simplified user interface makes it easy to assign configuration profiles to each port.
Multicast in an Instant
NETGEAR IGMP Plus™ provides multicast functionality right out of the box for most AV over IP applications.
Sleek, Quiet Design
Less fan noise, and mounting ears included for under-table or wall mounting.
Automatic Configuration
Auto-trunk and auto-LAG functionality auto connects with other M4250 (and M4300) switches.

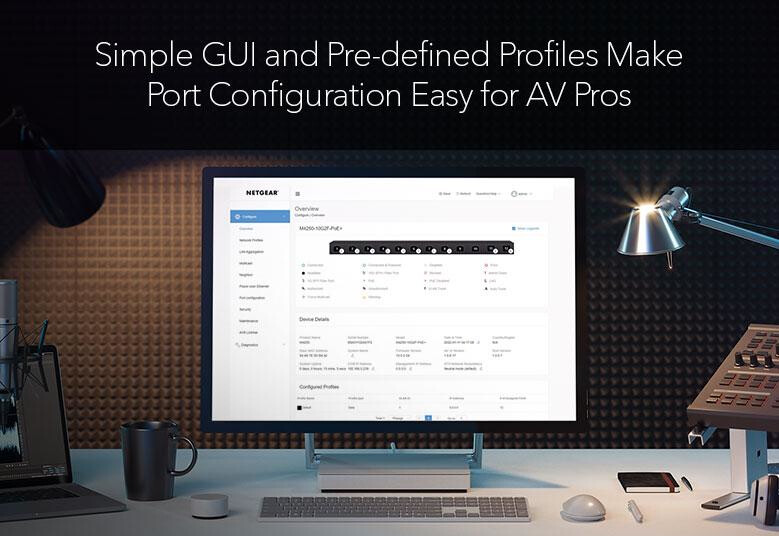

FAST, EASY CONFIGURATION FOR AV PROS
A streamlined interface enables factory default AV settings or user-specified AV profiles to be assigned to individual ports with just a few clicks.
FOCUS ON THE EVENT NOT FAN NOISE
Most models have quiet mode which greatly reduces fan noise, and some models are even fanless.
DESIGNED FOR AV OVER IP RIGHT OUT OF THE BOX
With built-in NETGEAR IGMP Plus™, there’s little-to-no setup required for flawless Video over IP delivery. Enable multicasting right out of the box.

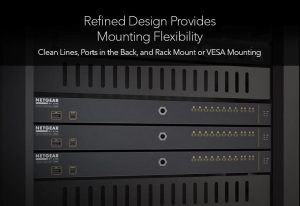

REFINED DESIGN PROVIDES MOUNTING FLEXIBILITY
Clean lines and port activity status is featured in the front of the switch, while cabling is neatly in the back. Universal mounting options allow VESA mounting or in standard racks.
| Vægt | 2,0000 kg |
|---|---|
| Switch-type | Administreret |
| Brand | Netgear |
| State | Default |
| Servicekvalitet support (QoS) | Ja |
| Basis omskiftning RJ-45 Ethernet porte, antal | 10 |
| Basis omskiftning RJ-45 Ethernet porttype | Gigabit Ethernet (10/100/1000) |
| Netværksstandarder | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3x |
| Fuld duplex | Ja |
| Link aggregering | Ja |
| Broadcast stormkontrol | Ja |
| MAC adresselabel | 16000 entries |
| Switch kapacitet | 24 Gbit/sek. |
| Opbevar-og-frem | Ja |
| DHCP funktioner | DHCP Option 82, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 relay, DHCPv6 server, DHCPv6 snooping |
| IGMP snooping | Ja |
| Loop beskyttelse | Ja |
| Stativ-montering | Ja |
| Produktfarve | Sort |
| Strøm over Ethernet (PoE) | Ja |
| Power over Ethernet plus (PoE+) porte, antal | 8 |
| Total Power over Ethernet (PoE) | 150 W |
| Driftstemperatur (T-T) | 0 – 50 °C |
| Opbevaringstemperatur (T-T) | -20 – 70 °C |
| Relativ luftfugtighed ved drift (H-H) | 0 – 90% |
| Relativ luftfugtighed ved opbevaring (H-H) | 0 – 95% |
| Bredde | 440 mm |
| Dybde | 200 mm |
| Højde | 43,2 mm |
| Vægt | 2,85 kg |
| Switch lag | L2/L3 |
| 10G understøttelse | Ingen |
| VLAN understøttelse | Ja |
| Vituelle LAN funktioner | MAC address-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Antal VLAN'er | 4093 |
| Formfaktor | 1U |
| LED-indikatorer | PoE, Strøm, Status |
| Gennemsnitstid mellem fejl (MTBF) | 778769 t |
| Varmeafgivelse | 559,555 BUT/t |
| Adgangskontrolliste (ACL) | Ja |
| SSH/SSL support | Ja |
| BPDU filtrering/beskyttelse | Ja |
| Multicast-understøttelse | Ja |
| Intern hukommelse | 2048 MB |
| Støjniveau | 30,06 dB |
| Driftshøjde | 0 – 3000 m |
| Indbygget processer | Ja |
| Processorfrekvens | 1250 MHz |
| Antal SFP modulslots | 2 |
| Begrænsning af hastighed | Ja |
| Spanning tree protokol | Ja |
| Gennnemløb | 17,86 Mpps |
| Godkendelse | MAC-baseret godkendelse |
| Power over Ethernet (PoE) effekt pr. port | 30 W |
| Latens (1 Gbps) | 2,27 µs |
| Ikke-drift højde | 0 – 3000 m |
| Brugervejledning | Ja |
| Godkendelsestype | RADIUS |
| Processormodel | ARM Cortex-A9 |
| IPv4 multicast indtastninger | 2000 |
| IPv6 multicast indtastninger | 2000 |
