Gaming Unbound

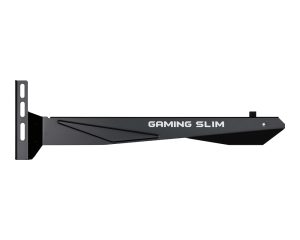

GAMING SLIM series is a thinner variant of GAMING series while maintaining high performance capabilities and aggressive looks.
Elevate performance with TRI FROZR 3 cooling and its key features – TORX FAN 5.0, Core Pipe, and Airflow Control.
TRI FROZR 3 THERMAL DESIGN
Stay cool and quiet. MSI’s TRI FROZR 3 thermal design enhances heat dissipation all around the graphics card.

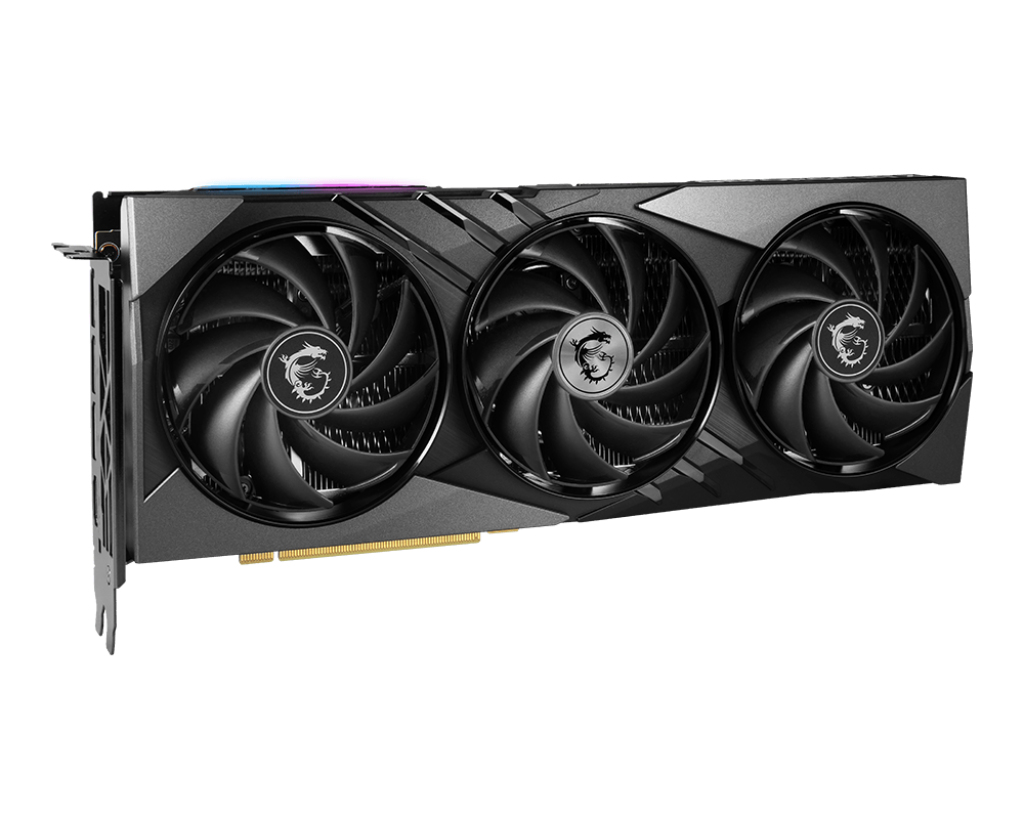

TORX FAN 5.0
TORX FAN 5.0 is a culmination of fan design improvements to increase the air pressure and flow into the heatsink. Ring arcs link three sets of fan blades that tilt 22 degrees together to maintain high-pressure airflow even at slower rotational speeds. The resulting increased airflow is +23% compared to an axial fan.
AIRFLOW CONTROL
Airflow Control improves airflow dynamics through the Wave Curved 2.0 and updated deflectors design for optimizing the balance between cooling and quieter acoustics.
ELEVATED DETAILS
Take a closer look at the other thermal solution features that help to control temperatures and the noise level.
UNRESTRICTED COOLING

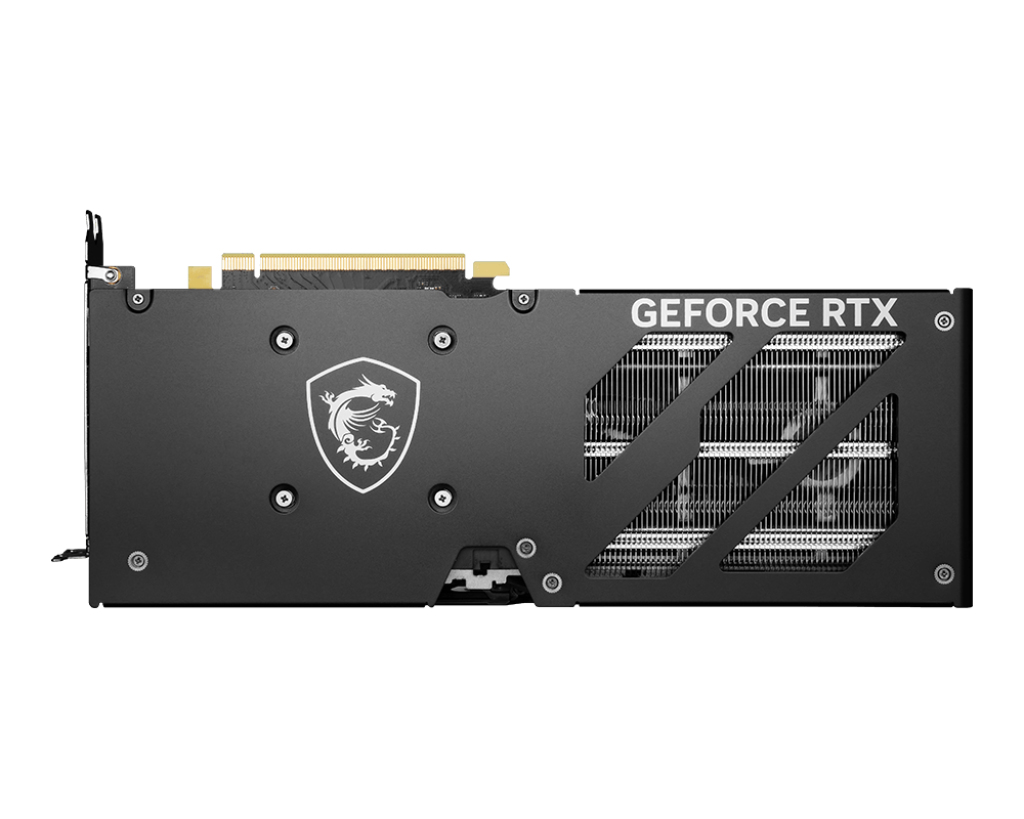

A large airflow vent on the backplate allows exhaust air to pass through directly.
ZERO FROZR
The fans completely stop when temperatures are relatively low, eliminating all noise.
| Vægt | 1,6200 kg |
|---|---|
| Grafikprocessor familie | NVIDIA |
| Brand | MSI |
| State | Default |
| Grafikprocessor | GeForce RTX 4060 Ti |
| Maksimal opløsning | 7680 x 4320 pixel |
| CUDA | Ja |
| Processorfrekvens | 2685 MHz |
| CUDA-kerner | 4352 |
| Processor øger urets hastighed | 2670 MHz |
| Maksimalt antal skærme pr. grafikkort | 4 |
| Diskret grafikadapterhukommelse | 16 GB |
| Hukommelsestype for grafikadapter | GDDR6 |
| Hukommelsesbus | 128 Bit |
| Grænsefladetype | PCI Express x8 4.0 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 3 |
| HDMI-version | 2.1a |
| DisplayPort-version | 1.4a |
| DirectX-version | 12 Ultimate |
| OpenGL-version | 4.6 |
| HDCP | Ja |
| Kølingstype | Aktiv |
| Antal blæsere | 3 blæser(e) |
| Produktfarve | Sort, Grå |
| Minimum system strømføring | 550 W |
| Supplerende strømkontakter | 1x 8-pin |
| Dybde | 46 mm |
| Højde | 125 mm |
| Product family | GAMING |
| TV-tuner, integreret | Ingen |
| DVI dobbelt link | Ingen |
| NVIDIA G-SYNC | Ja |
| Formfaktor | Full-Height/Full-Length (FH/FL) |
| Pakketype | Kasse |
| Strømforbrug (typisk) | 165 W |
| Dataoverførselshastighed | 18 Gbit/sek. |
| Pakkevægt | 1,64 kg |
| Vægt | 919 g |
| Køleteknologi | MSI TORX FAN 5.0 |
| Belysning | Ja |
| Længde | 307 mm |
