Facilitate a longer 8K connection without requiring an external power source

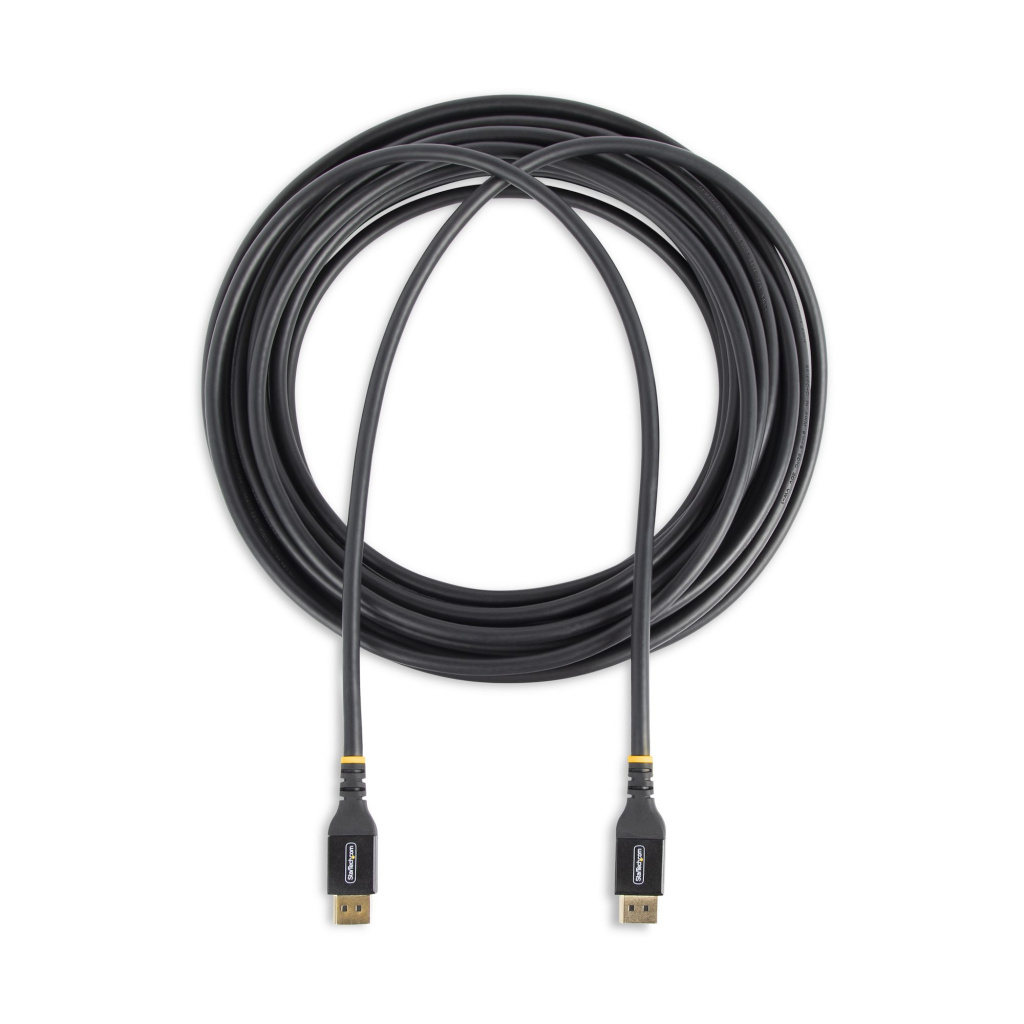

Connect a 4K/8K DisplayPort 1.4-enabled monitor to a source or MST-enabled hub, using this VESA-Certified Active DisplayPort 1.4 Cable. The active signal booster ensures reliable audio and 8K video output at up to 50ft (15.2m) without a DisplayPort repeater and external power source. This active DP 1.4 cable is unidirectional with conveniently labeled connectors for source and display to simplify setup.
VESA-Certified DP8K
For seamless performance and compatibility between DisplayPort-enabled devices, the Active DisplayPort Cable is VESA Certified, for guaranteed DP 1.4 support and backward compatibility with DP 1.3/1.2
Durable Design

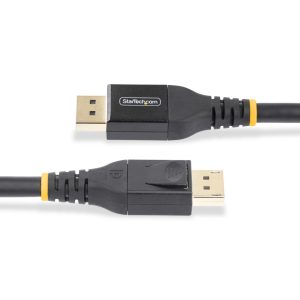

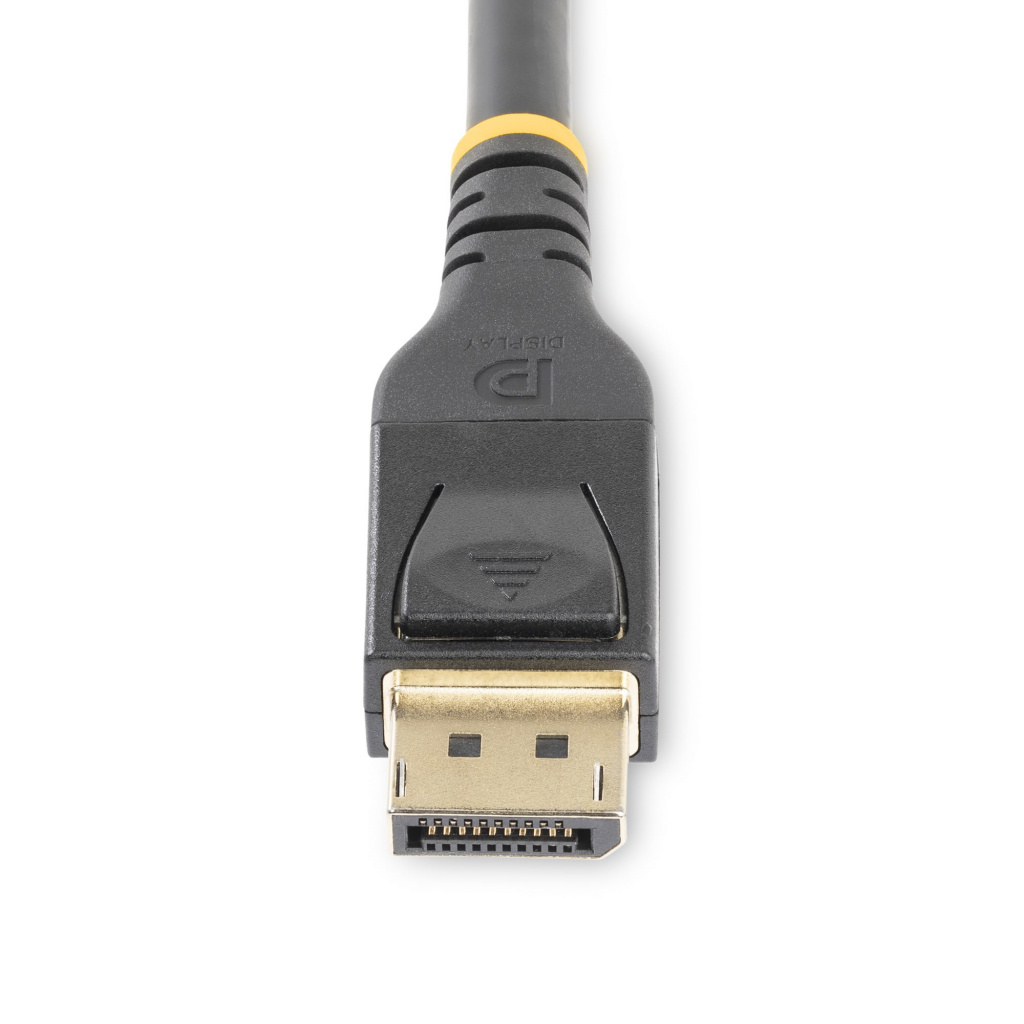

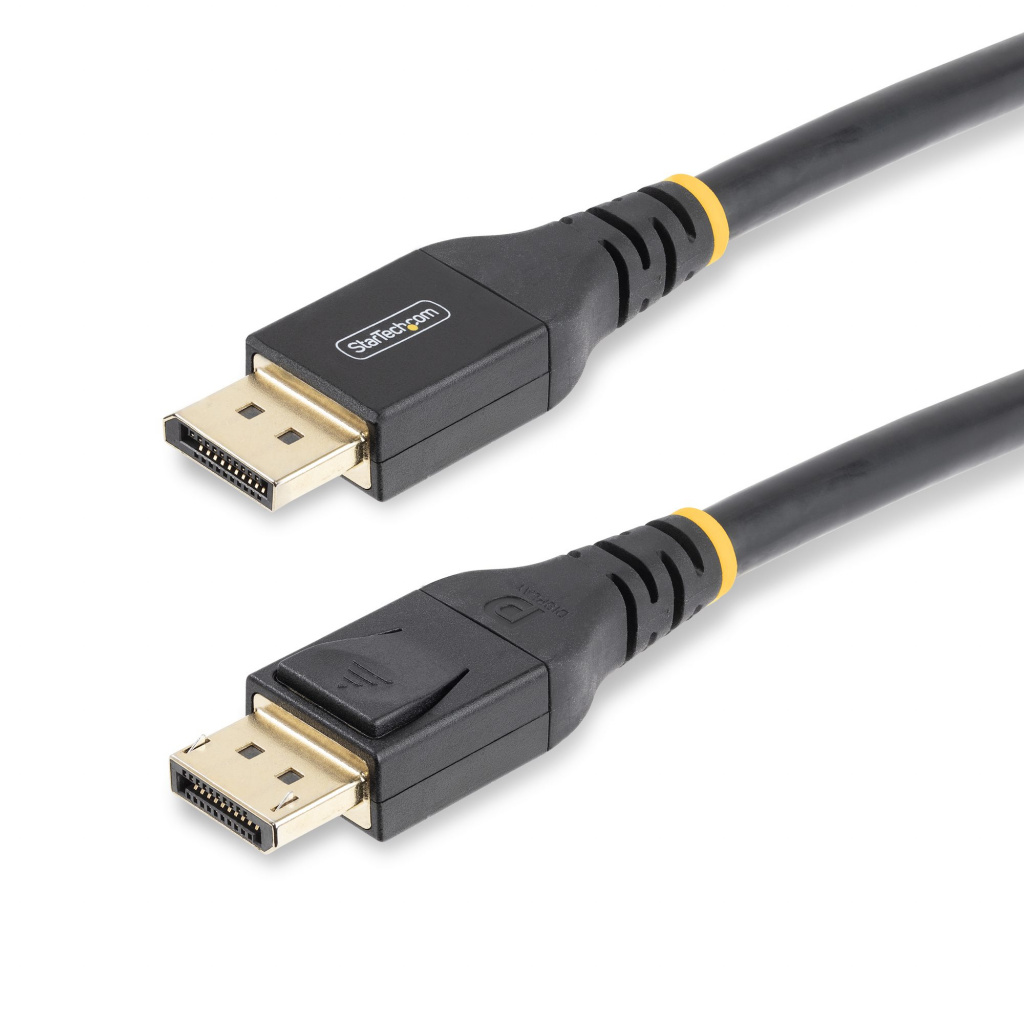

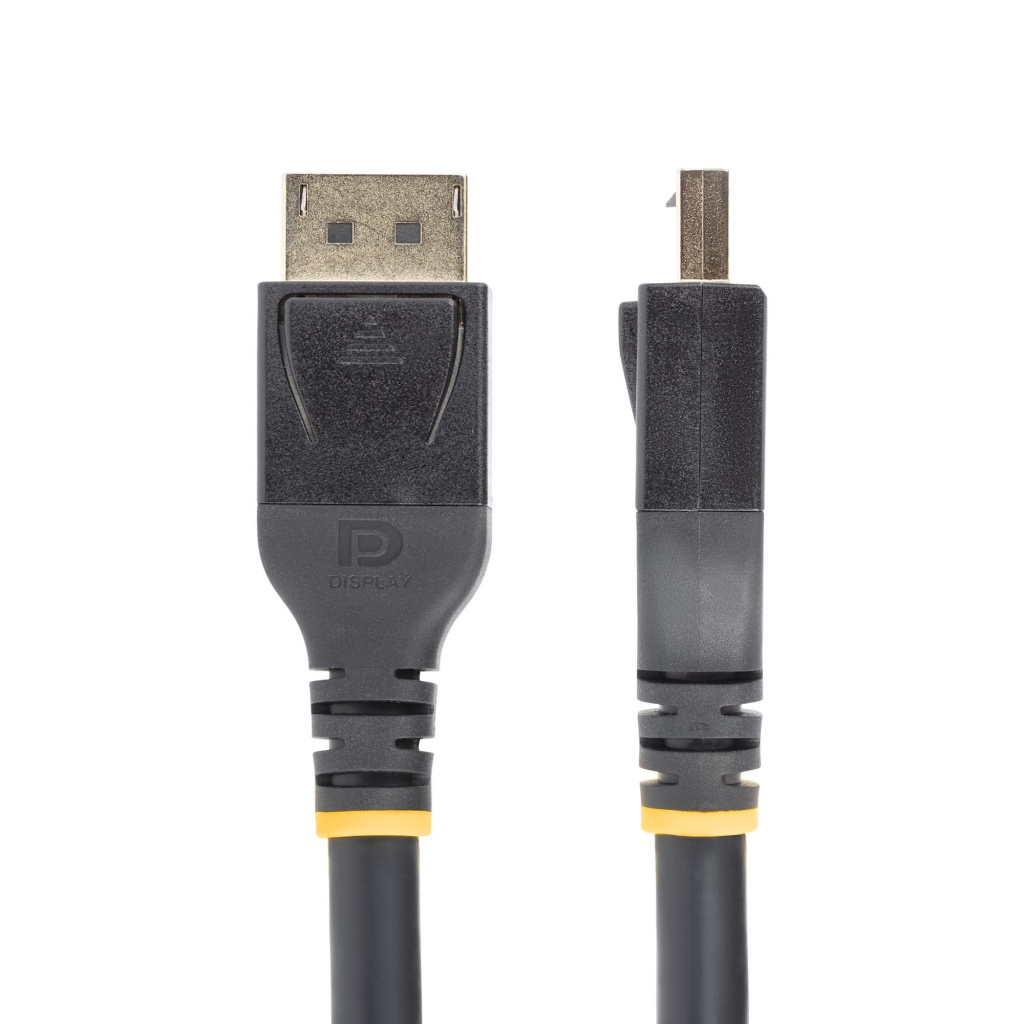

This long DisplayPort cable features a flexible TPE outer jacket to reduce wear from corner bends and long cable runs. Robust strain reliefs enable soft and flexible bends, for convenient positioning of the cable. The latching DP connectors are gold plated for improved conductivity and anti-tarnish properties, and attaches securely to the device to prevent accidental disconnection.
Supported DisplayPort 1.4 Features:
This 8K DisplayPort cable supports all DP 1.4 features:
• Resolutions up to 8K 60Hz, 4K 120Hz, 1440p 240Hz with a compatible DP source and display
• HDCP 2.2 support
• High Bit Rate 3 (HBR3) bandwidth of 32.4Gbps
• High Dynamic Range 10 (HDR10)
• Display Stream Compression 1.2 (DSC 1.2)

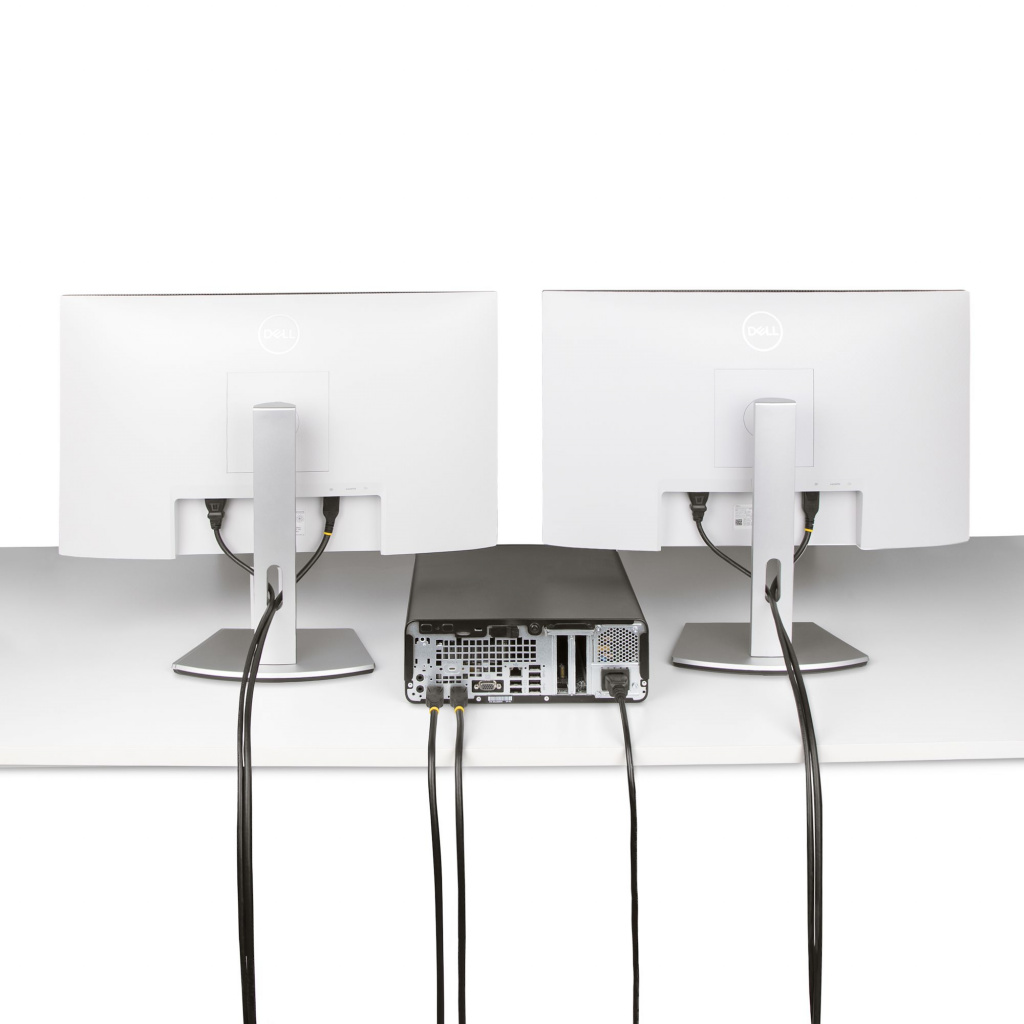

• Multi-Stream Transport (MST) for daisy-chaining multiple monitors
• 32 Uncompressed Digital Audio Channels
• Backward compatible with 5K 60Hz, 4K 120Hz and previous DP versions

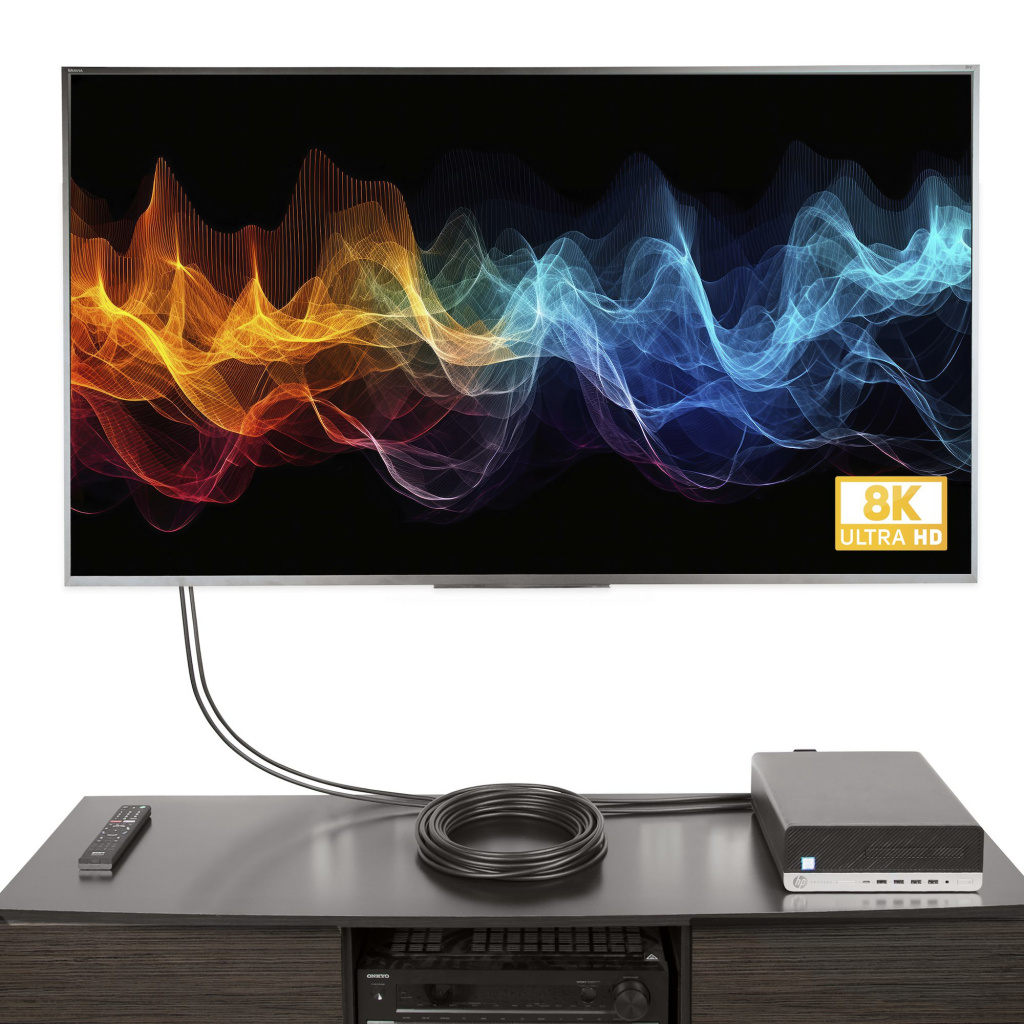

The Active DP Cable is constructed with aluminum-mylar shielding to minimize EMI interference for clear and reliable audio/video output. This VESA-certified DP cable is designed for long-term reliability, and is the ideal solution for setting up boardrooms, video walls, and TV signage.
The StarTech.com Advantage
| Vægt | 0,9700 kg |
|---|---|
| Kabellængde | 15,3 m |
| Brand | StarTech.com |
| State | Default |
| Stik 1 | DisplayPort |
| Stik 2 | DisplayPort |
| Stik 1 køn | Hanstik |
| Stik 2 køn | Hanstik |
| Maksimal opløsning | 7680 x 4320 pixel |
| Produktfarve | Sort |
| Stik 1 formfaktor | Lige |
| Stik 2 formfaktor | Lige |
| Stikforbindelse kontakter plettering | Guld |
| DisplayPort-version | 1.4 |
| Dataoverførselshastighed | 25,92 Gbit/sek. |
| Maksimal opdateringshastighed | 144 Hz |
| HDCP | Ja |
| HDCP-version | 2.2 |
| Driftstemperatur (T-T) | 0 – 50 °C |
| Produkter pr. hovedkasse (udvendigt) | 8 stk |
| Understøttede grafikopløsninger | 3840 x 2160, 7680 x 4320 |
| Kabelafskærmning | Aluminium mylar folie |
| Materiale for kapper | Termoplastisk elastomer (TPE) |
| AWG-ledningsstørrelse | 24/28 |
| Båndbredde | 32400 MB/s |
| Multi-Stream Transport (MST) | Ja |
| Opbevaringstemperatur (T-T) | -20 – 60 °C |
| Pakkebredde | 460 mm |
| Pakkedybde | 350 mm |
| Pakkehøjde | 150 mm |
| Pakkevægt | 1 kg |
| Hovedkassens bredde (udvendigt) | 400 mm |
| Hovedkassens længde (udvendigt) | 330 mm |
| Hovedkassen højde (udvendigt) | 270 mm |
| Kabeldiameter | 7,5 mm |
| Relativ luftfugtighed ved drift (H-H) | 0 – 85% |
| HBR3-support | Ja |
| Vurdering af brandmodstandsevne | VW-1 |
| Display Stream Compression (DSC) | Ja |
| Display Stream Compression (DSC) version | 1.2 |
| Kabelmateriale | Kobber |
| Overholdelse af bæredygtighed | Ja |
| Compliance certificates | RoHS |
