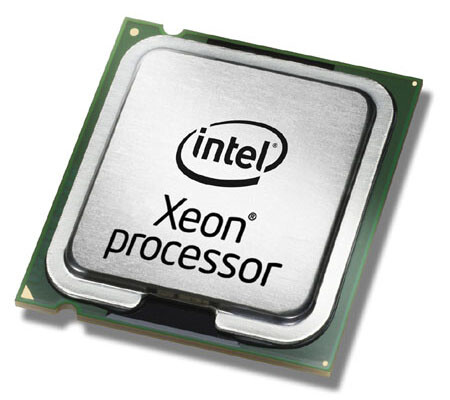

The powerful new Intel® Xeon® processor E5-2600 v4 product family offers versatility across diverse workloads. These processors are designed for architecting next-generation data centers running on, software defined infrastructure supercharged for efficiency, performance, and agile services delivery across cloud-native and traditional applications. They support workloads for cloud, high-performance computing, networking, and storage.
Performance
Built on 14 nm process technology, the Intel® Xeon® processor E5 v4 family offers up to 22 cores/44 threads per socket and 55 MB last-level cache (LLC) per socket for increased performance, as well as Intel® Transactional Synchronization Extensions (Intel® TSX) for increased parallel workload performance.
Optimized for Orchestration
Dynamically manage shared resources efficiently and increase resource utilization with Intel® Resource Director Technology (Intel® RDT) offering cache monitoring and allocation technology, code and data prioritization, and memory bandwidth monitoring.
Enhanced Security
Accelerated cryptographic performance enables encrypted data to move fast over secure connections, plus improved security keys help safeguard network access and deepen platform protection.
| Vægt | 0,0000 kg |
|---|---|
| Processorserie | Intel® Xeon® E5 v4 |
| Brand | Intel |
| State | Default |
| Processorkerner | 16 |
| Processor sokkel | LGA 2011-v3 |
| Processor litografi | 14 nm |
| Processormodel | E5-2697AV4 |
| Processorens basisfrekvens | 2,6 GHz |
| Processor driftstilstande | 64-bit |
| Komponent til | Server/arbejdsplads |
| Processortråde | 32 |
| Processor boost frekvens | 3,6 GHz |
| Processor cache type | Smart cache |
| Thermal Design Power (TDP) | 145 W |
| Processor kodenavn | Broadwell |
| Hukommelseskanaler | Fire-kanals |
| Maksimal intern hukommelse understøttet af processor | 1,54 TB |
| Hukommelsestyper understøttet af processor | DDR4-SDRAM |
| Hukommelsesurhastigheder understøttet af processor | 1600,1866,2133,2400 MHz |
| Fejlkorrigerende kode | Ja |
| On-board grafikkort | Ingen |
| Markedssegment | Server |
| Maksimalt antal PCI Express-kanaler | 40 |
| PCI Express slots version | 3.0 |
| Skalerbarhed | 2S |
| Indlejret tilgængelige muligheder | Ingen |
| Harmoniseret systemkode (HS) | 8542310001 |
| Intel® Hyper Threading Teknologi (Intel® HT Technology) | Ja |
| Intel® Turbo Boost Teknologi | 2.0 |
| Intel® AES Nye Instruktioner (Intel® AES-NI) | Ja |
| Intel® Trusted Execution Teknologi | Ja |
| Intel® TSX-NI | Ja |
| Intel® 64 | Ja |
| Intel® Virtualization Technology (VT-x) | Ja |
| Konfliktfri processor | Ja |
| Berettigelse til Intel® vPro™ platform | Ja |
| Tcase | 78 °C |
| Processor-pakke størrelse | 45mm x 52.5mm |
| Kapabilitet | Intel Server System R1208WT2GSRIntel Server System R1208WTTGSRIntel Server System R1304WT2GSRIntel Server System R1304WTTGSRIntel Server System R2208WTTYSRIntel Server System R2208WT2YSRIntel Server System R2208WTTYC1RIntel Server System R2308WTTYSRIntel Server System R2312WTTYSRIntel Server System R2224WTTYSRIntel Server Board S2600CW2RIntel Server Board S2600CW2SRIntel Server Board S2600CWTRIntel Server Board S2600CWTSRIntel Server Board S2600KPRIntel Server Board S2600KPFRIntel Server Board S2600KPTRIntel Server Board S2600TPRIntel Server Board S2600TPFRIntel Server Board S2600WTTRIntel Server Board S2600WT2RIntel Server Board S2600WTTS1RIntel Compute Module HNS2600KPFRIntel Compute Module HNS2600KPRIntel Compute Module HNS2600TP24RIntel Compute Module HNS2600TPFRIntel Compute Module HNS2600TPRIntel Compute Module HNS2600TP24SR |
| Processorproducent | Intel |
| Understøttede instruktionssæt | AVX 2.0 |
| Køler inkluderet | Ingen |
| Stepping | B0 |
| Udfør deaktivering af bit | Ja |
| Enhanced Intel SpeedStep Teknologi | Ja |
| Processorserie | Intel Xeon E5-2600 v4 |
| Bus type | QPI |
| Intel® VT-x with Extended Page Tables (EPT) | Ja |
| Intel® Virtualization Technology for Directed I/O (VT-d) | Ja |
| Processor ARK ID | 91768 |
| Lanceringsdato | Q1'16 |
| Status | Launched |
| Kasse | Ingen |
| Processor kode | SR2K1 |
| PCI Express CEM-revision | 3.0 |
| Eksportkontrolklassisfikationsnummer (ECCN) | 5A992C |
| Automatiseret sporingssystem til vareklassificering (CCATS) | G077159 |
| Intel®-udvidelser til transaktionssynkronisering | Ja |
| Intel® TSX-NI-version | 1,00 |
| Processor cache | 40960 KB |
| Produkttype | Processor |
| Understøttede hukommelsestyper | DDR4-SDRAM |
| Processor brand navn | Intel Xeon |
| Sidste ændring | 63903513 |
| Produktfamilie | Intel Xeon Processor E5 v4 Family |
| Maksimal intern hukommelse | 1572864 MB |
| Product family | Xeon |
| Antal QPI-lins | 2 |
| Systembus-hastighed | 9,6 GT/s |
| VID spændingsområde | 0 – 0 V |
| Hukommelsesbåndbredde understøttet af processor (maks.) | 76,8 GB/sek. |
| Idle status | Ja |
| Termiske overvågningsteknologier | Ja |
| CPU-konfiguration (maks.) | 2 |
| Intel® Turbo Boost Technology 2.0-frekvens | 3,6 GHz |
| Intel® Enhanced Halt State | Ja |
| Intel® Sikker Nøgle | Ja |
| Intel® OS Guard | Ja |
| Intel® Secure Key Technology version | 1,00 |
| Bus båndbredde | 9,6 |
| Bustype enheder | GT/s |
| Bushastighed | 9.6 GT/s |
| Intel® Identity Protection Teknologi (Intel® IPT) | Ingen |
| Intel® Flex Memory Access | Ingen |
| Intel® Demand Based Switching | Ja |
| Fysisk adresseudvidelse (PAE) | Ja |
| Fysisk adresse udvidelse (PAE) | 46 Bit |
| Intel® Identity Protection Technology version | 0,00 |
| Servicing status | End of Servicing Updates |
| End of servicing updates date | Thursday, June 30, 2022 |
