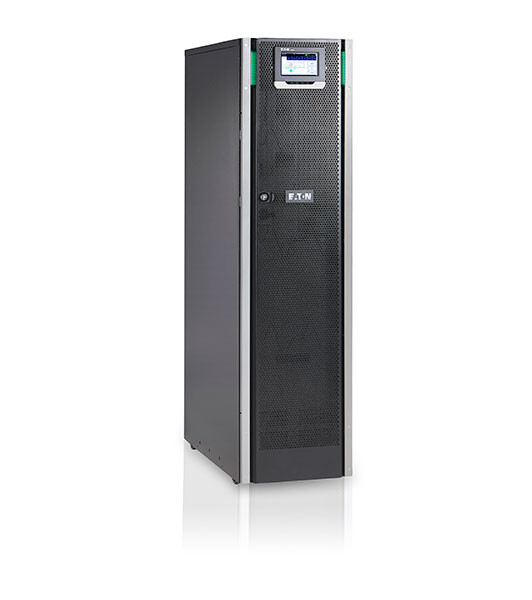

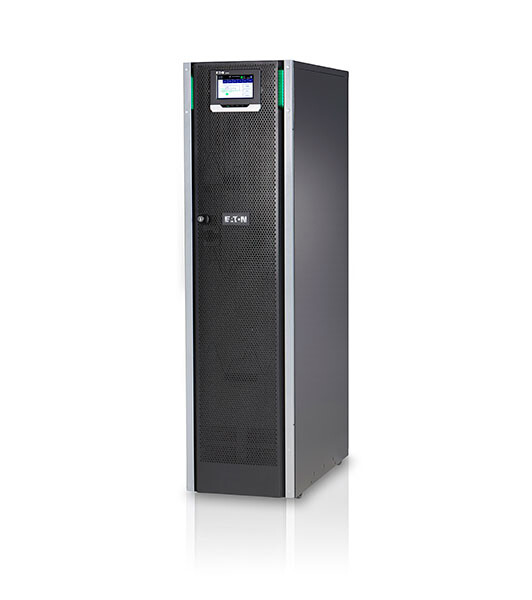

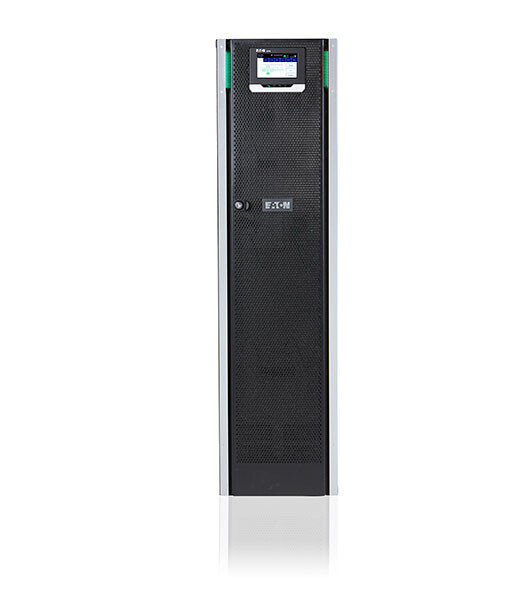

Eaton 93PS UPS-enhed Dobbeltkonvertering (online) 20 kVA 20000 W

Efficiency

– Above 96% efficiency in double conversion mode
– Up to 99% efficiency with Energy Saver System

Scalability

– Scalable architecture and ‘Pay as you grow’ capability to minimise Capital Expenditure
– Paralleling of up to 4 units

Inherent redundancy

– Modular design allows internal redundancy (separate battery configuration also available)

Smallest footprint in the market

The 93PS provides significantly more in a smaller package, with a footprint of only 0.25 m² for the smaller frame (8-20 kW) and 0.36 m² for the large frame (8-40 kW)

Unity power factor (1.0)

Hot Swap and Hot Scalable

– A module can be replaced while the other continues protecting the load (concurrent maintenance)
– A module can be added while the other continues protecting the load (hot scalable)
– Individual battery strings can be serviced while other strings are supporting the load

Super-sized static switch

Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation

Safety

– Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
– Equipped with a backfeed contactor – no need for additional installments

Cloud & Virtualisation ready

– The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
– IT and electrical infrastructure management from a “Single pane of glass”
– Load shedding – 50% drop in load equates to 250% more runtime!
