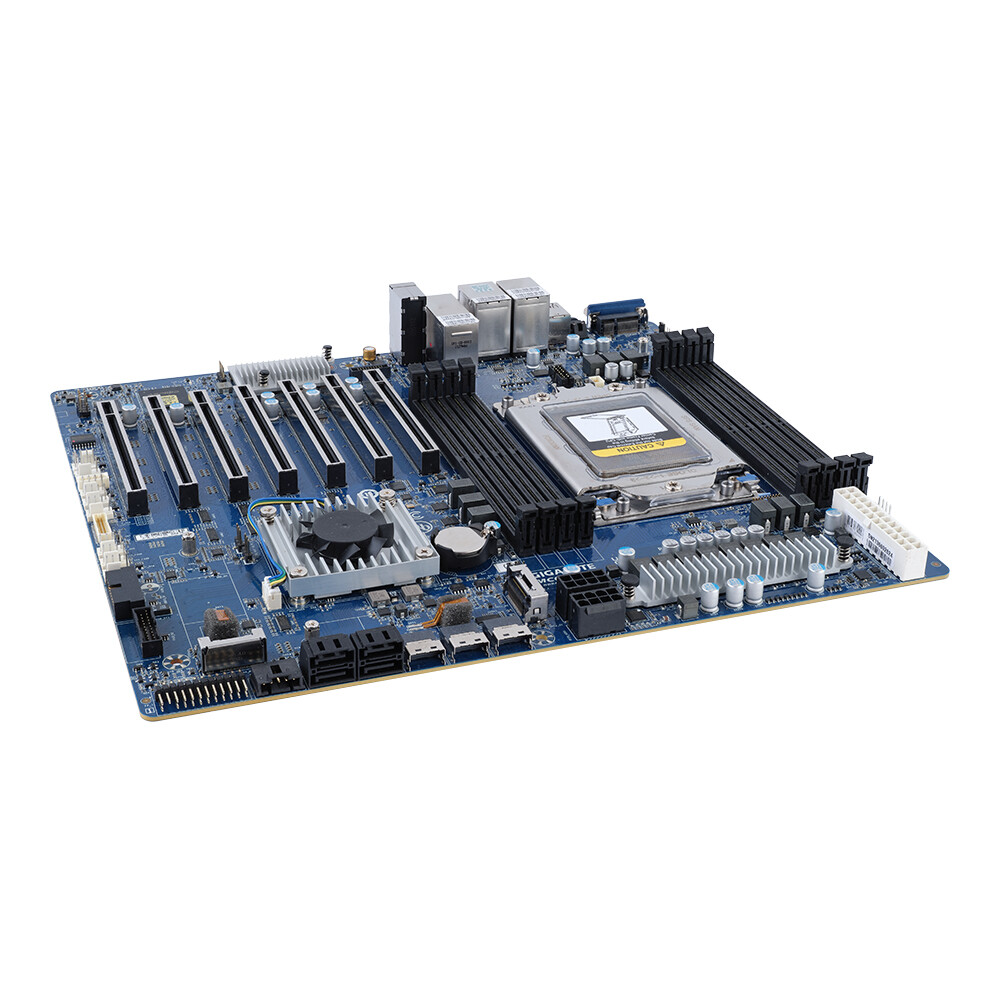

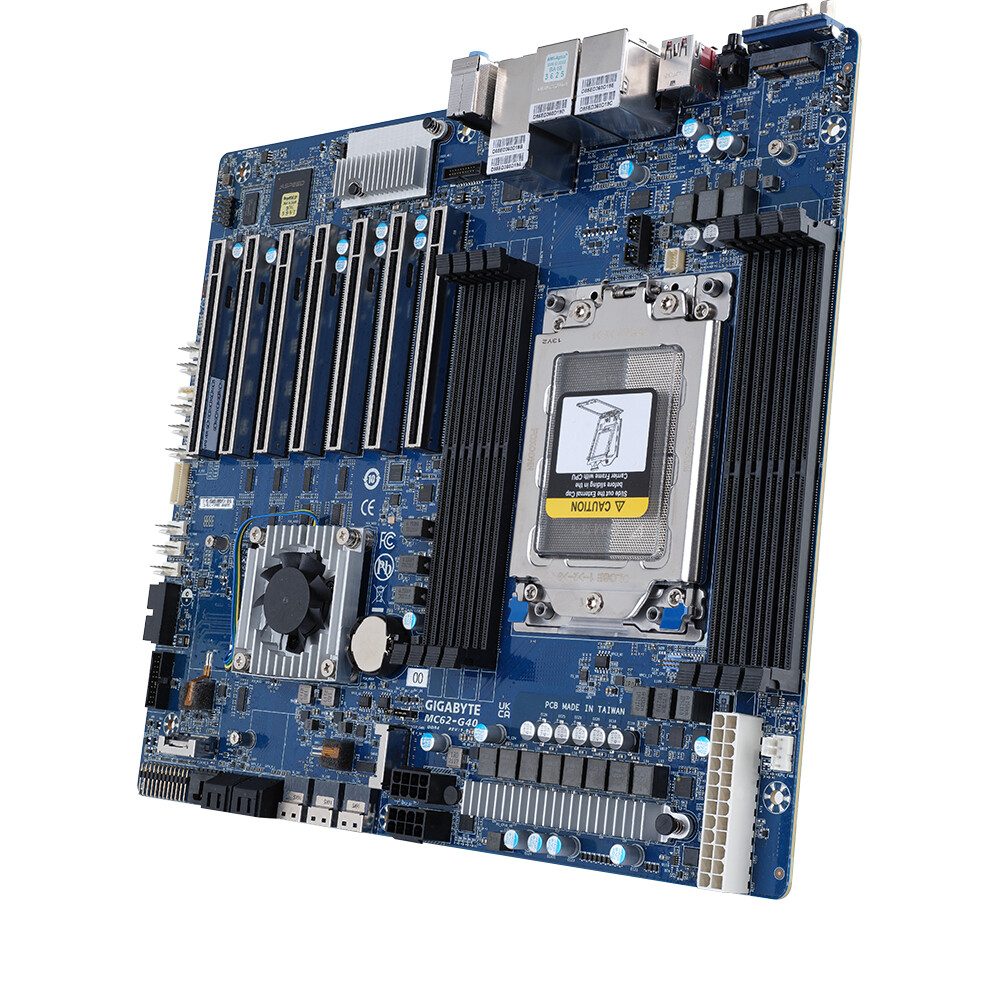

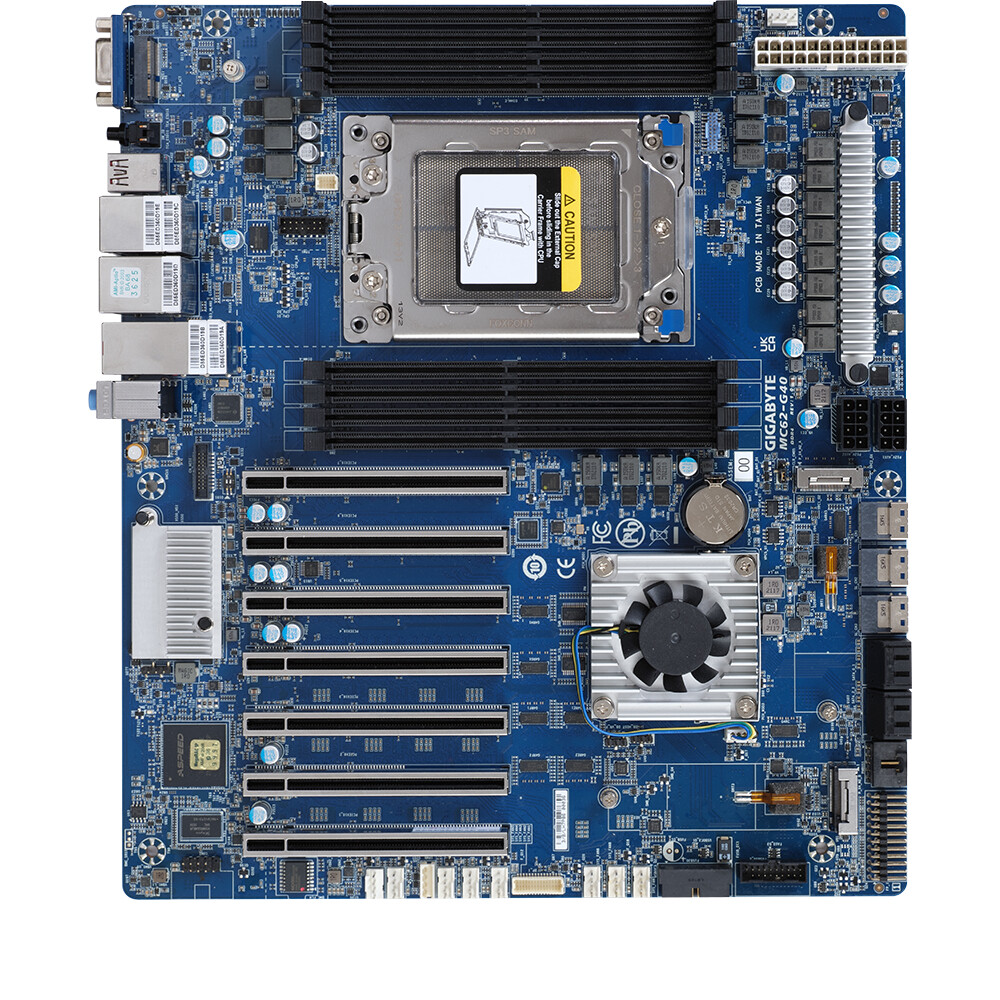

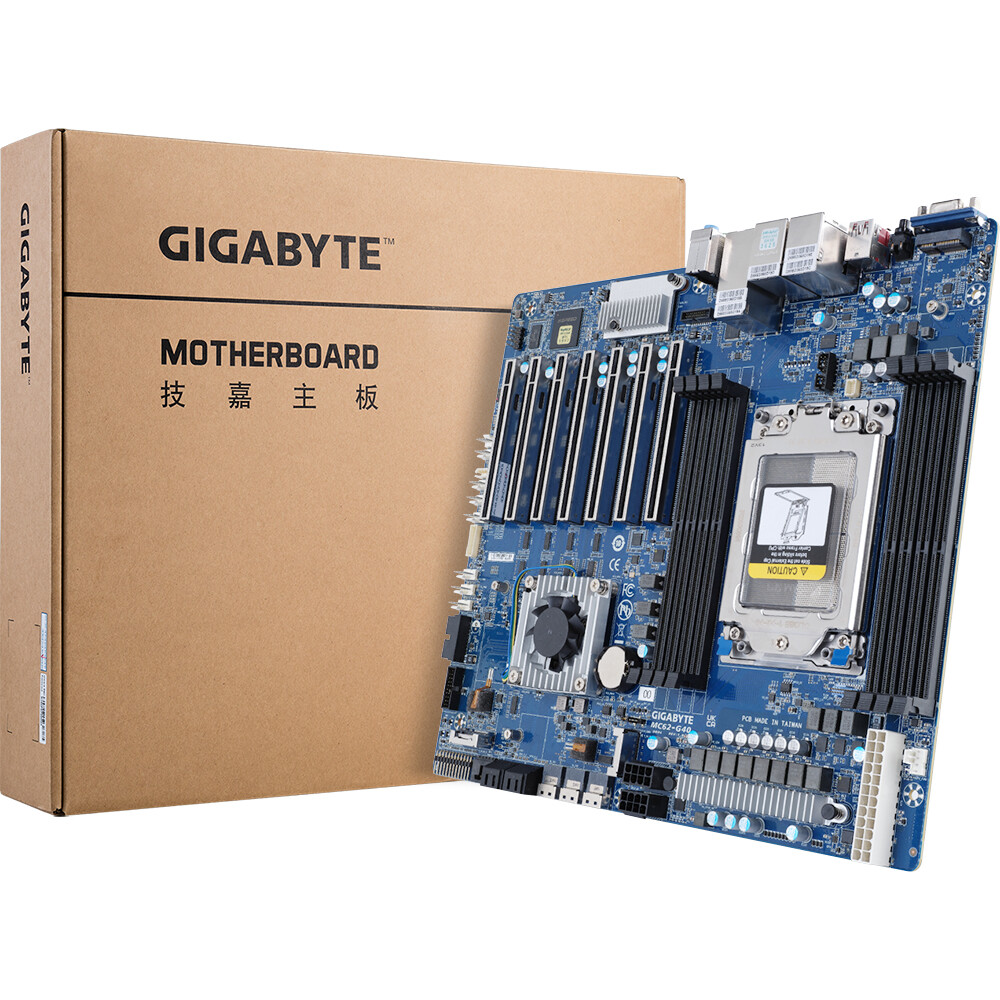

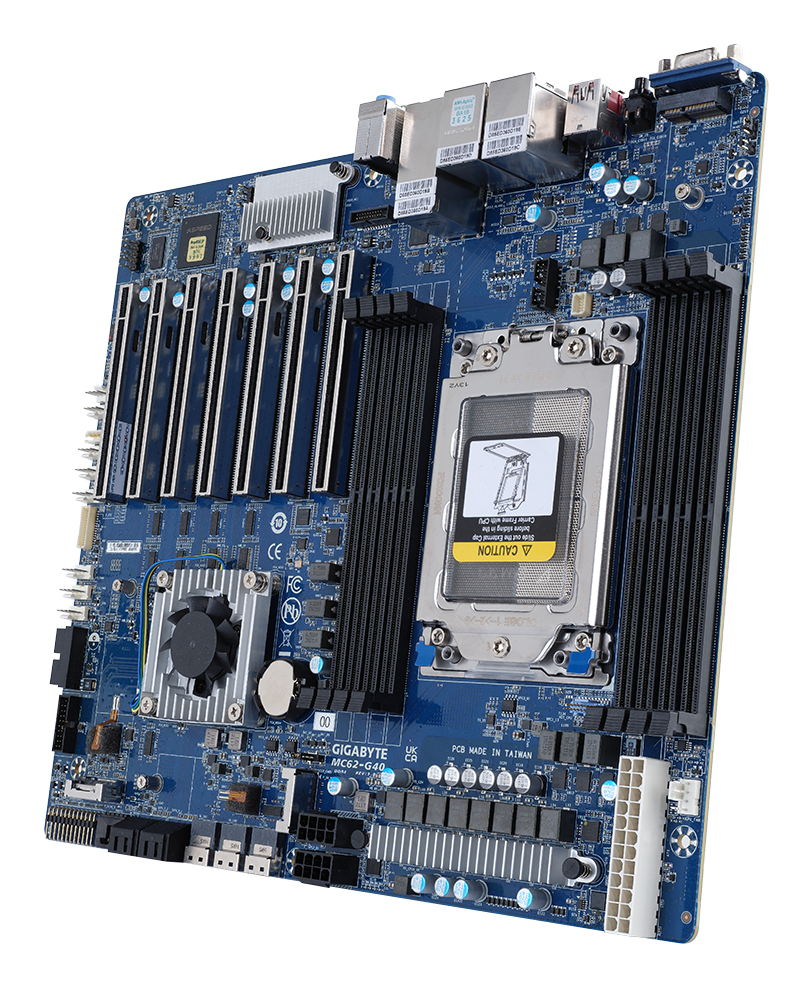

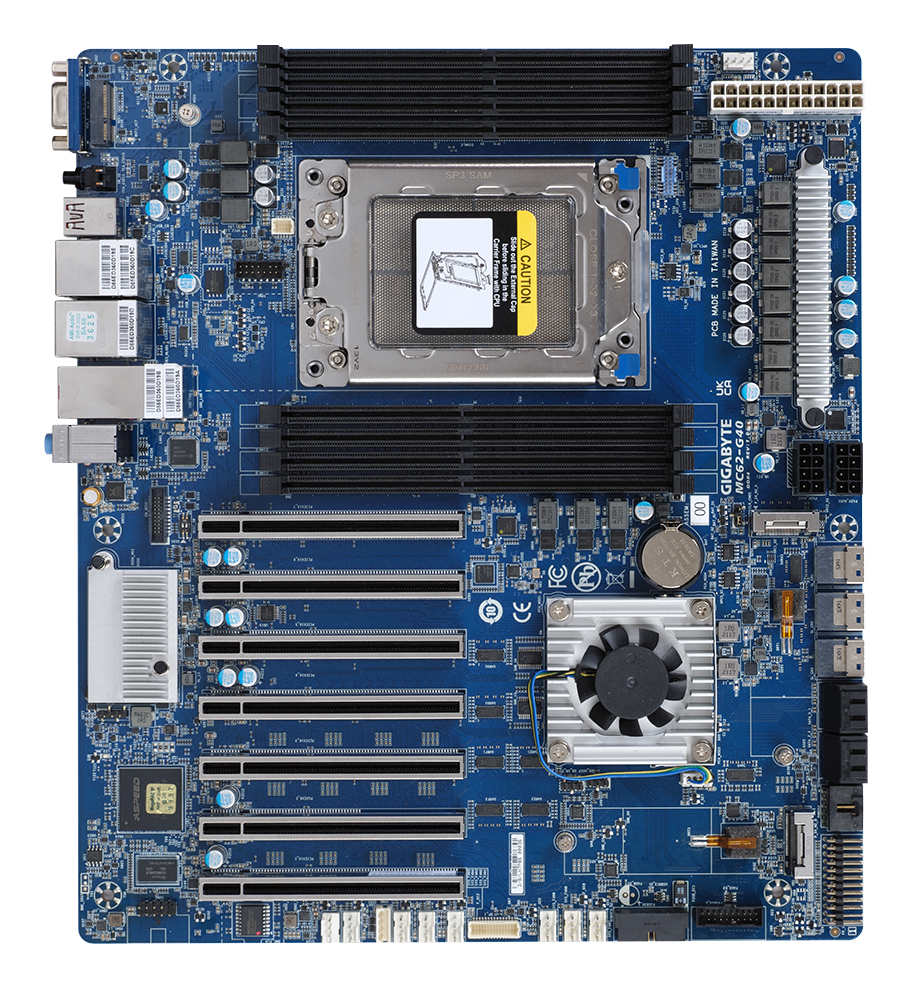

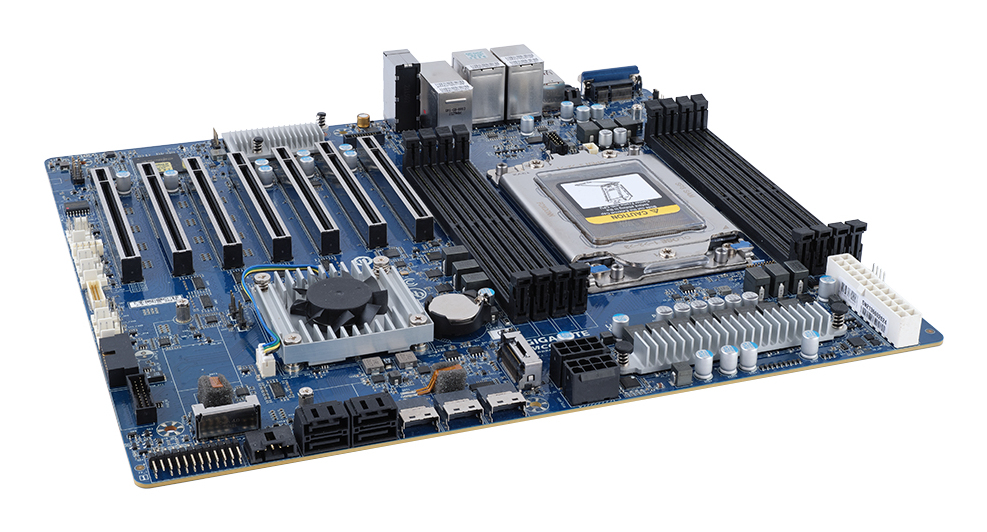

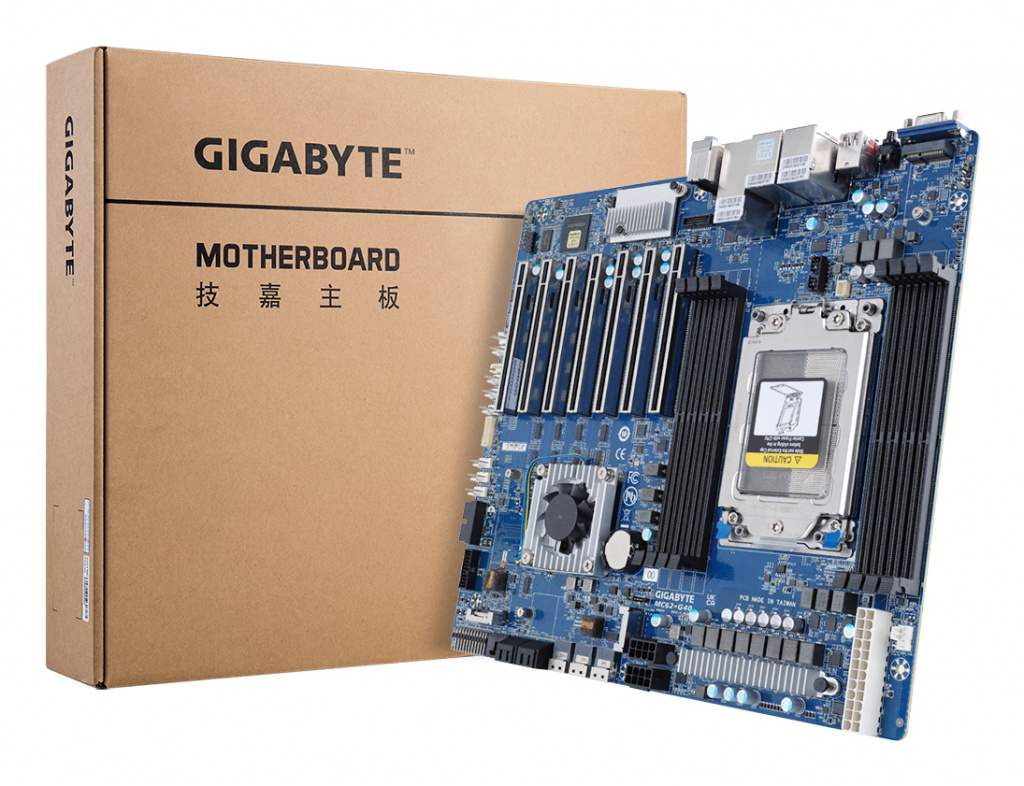

GIGABYTE MC62-G40 AMD WRX80 Sokkel sWRX8 SSI CEB

Workstation on Another Level
AMD Ryzen Threadripper PRO Processors
For the professional workstation users that rely on workloads for visual effects design or rendering, there is the AMD Ryzen Threadripper PRO. Engineering, data science, and oil & gas exploration are among the fields that need the highest possible CPU platform to handle the large amounts of data in an efficient manner.

Leading single and multi-threaded performance
Top performance throughput with PCIe 4.0
AMD Secure Processor: hardware root-of-trust
Support for administrative and remote management

Multiple Memory Type and High Capacity
8 x DIMM slots for 8-channel DDR4-3200 memory
AMD Ryzen Threadrippper PRO platform has support for multiple memory types: UDIMM(ECC) / RDIMM / LRDIMM, while supporting up to 2TB of total system memory. It can offer a flexible options for workstations.

High Performance
Supports 4 x Double Wide Accelerators
AMD Ryzen Threadrippper PRO utilizes leadership architecture allotting the MC62-G40 with 128 PCIe 4.0 lanes from 6 x PCIe 4.0 x16 and 1 x PCIe 4.0 x8 slots. This makes the MC62-G40 versatile to handle content creation, deep learning, and virtual machine applications.

Storage Support
Mix Drives
Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.
2 x M.2 2280 SSD slots (PCIe 4.0 x4 / SATAIII) from CPU for hot data
4 x SATAIII ports for cold data from WRX80 chipset
3 x SlimSAS ports (PCIe 4.0 x4 / 4x SATAIII) from WRX80 chipset

Connectivity

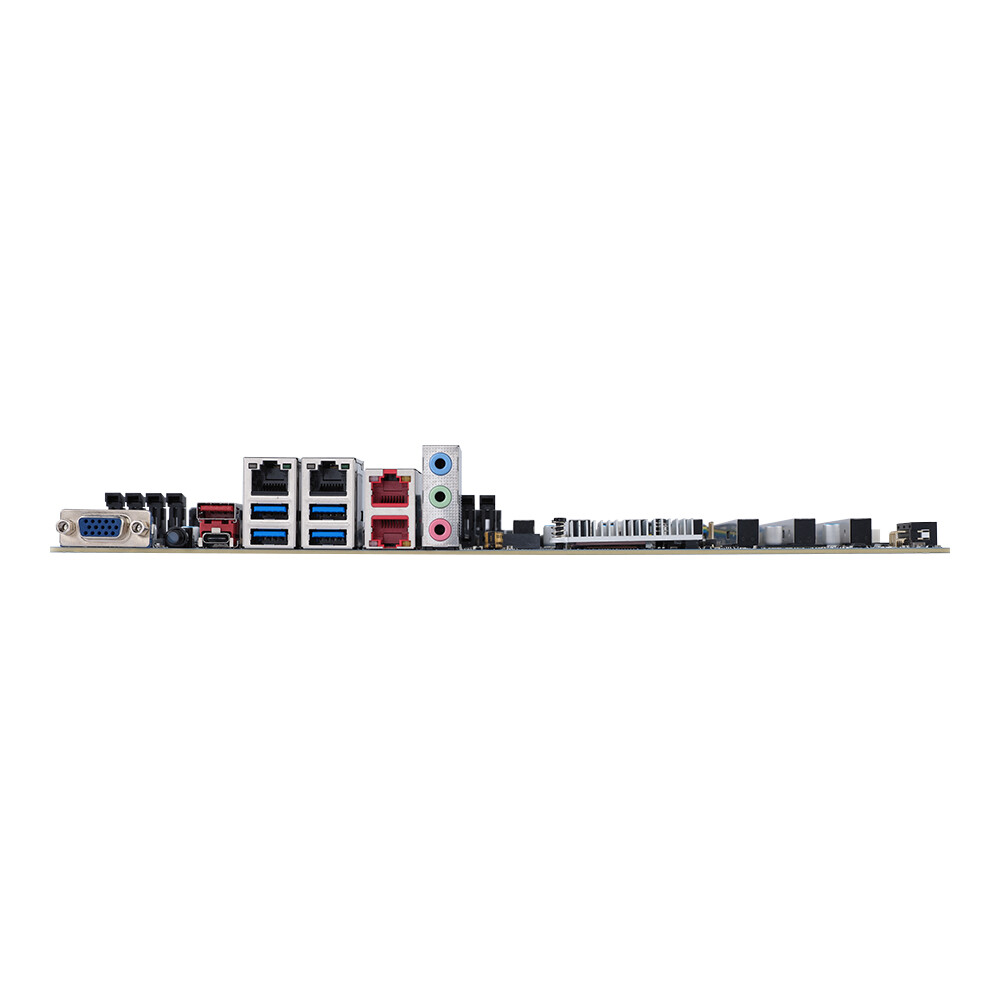

Dual Intel 10GbE and 1GbE connections
The Intel X550-AT2 adapter provides 2 ports of 10 GbE network connectivity as well as SR-IOV features. It is perfectly designed for demanding high bandwidth applications in virtualization, media centers, content creation, and data centers.

The Intel Ethernet Controller i210-AT supports Windows Server OS with adapter fault tolerance, link aggregation, adaptive load balancing and more.

Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.

Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom MegaRAID adapters.

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:

GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
GSM CLI: A command-line interface for monitoring and managing remotely.
GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
