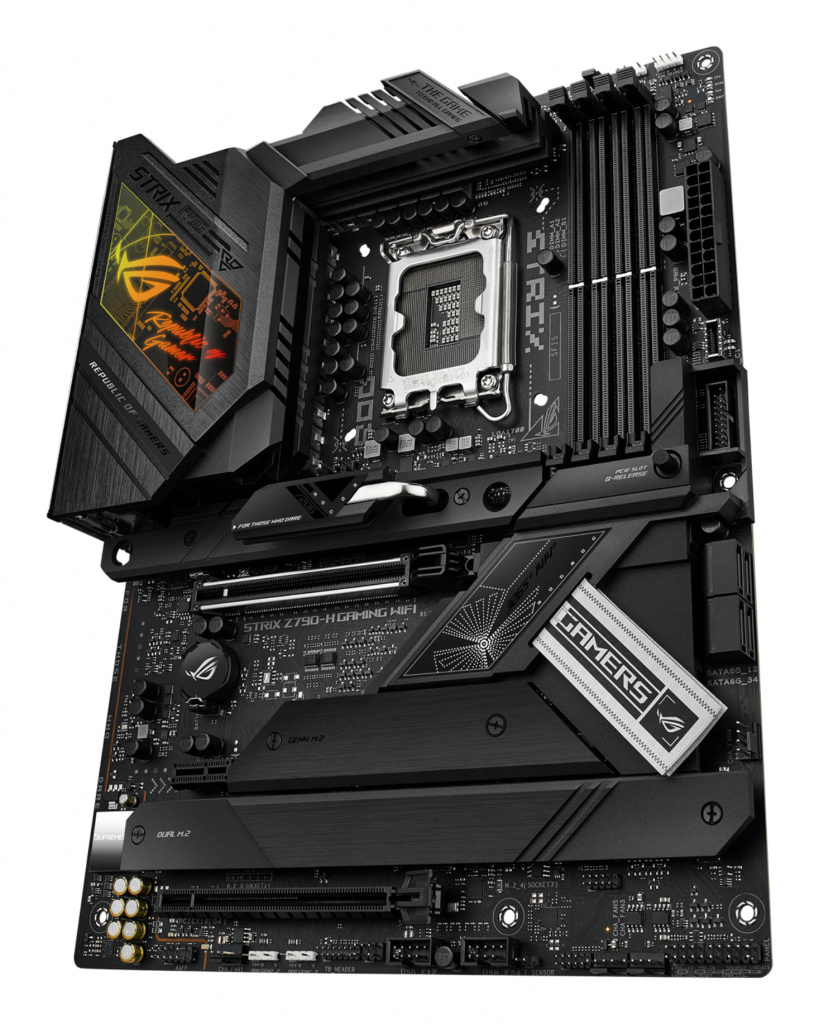

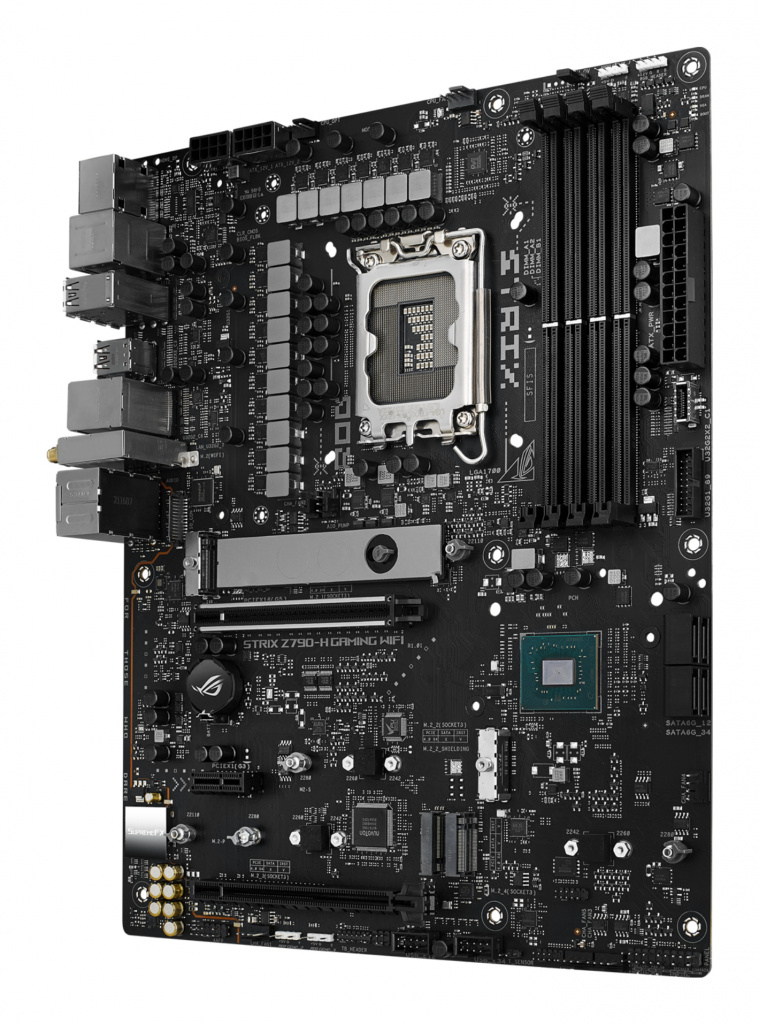

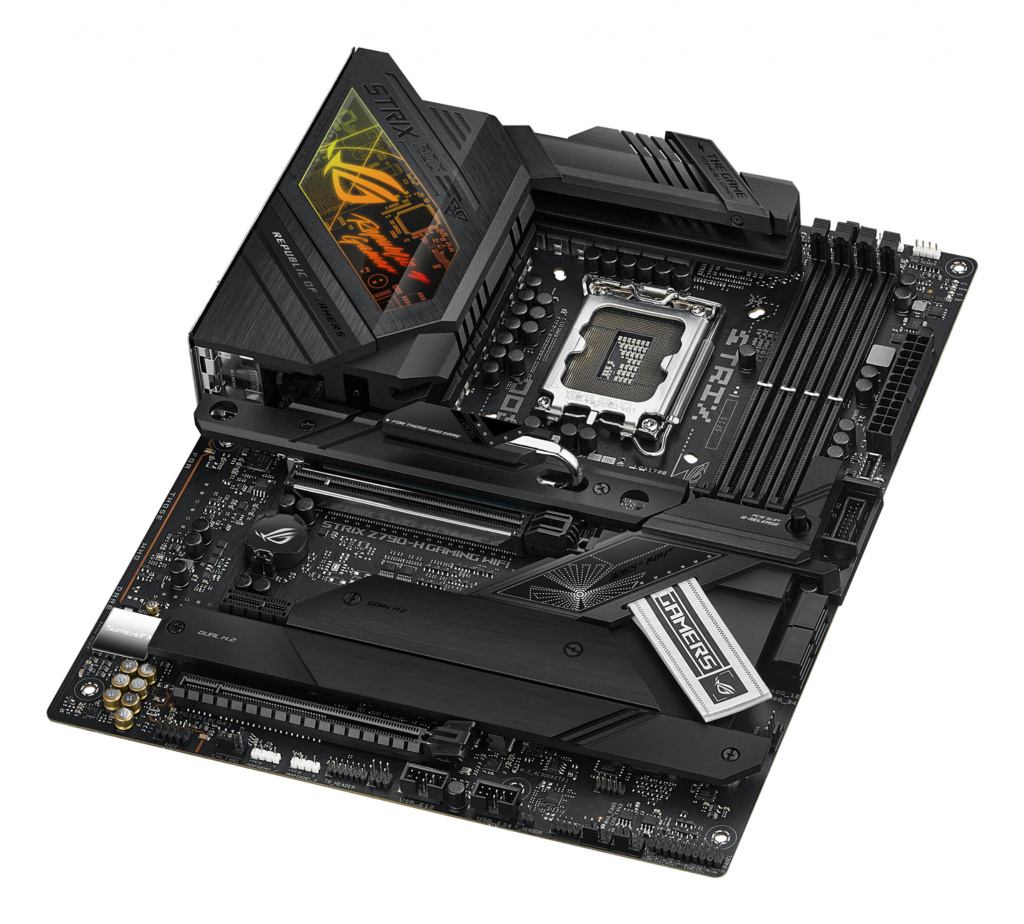

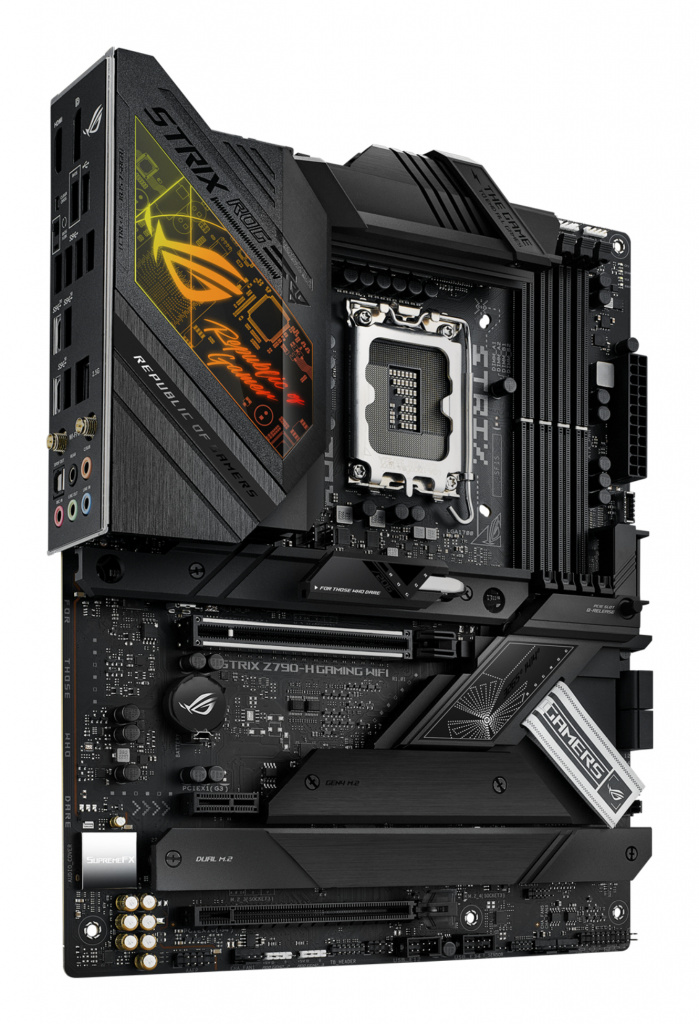

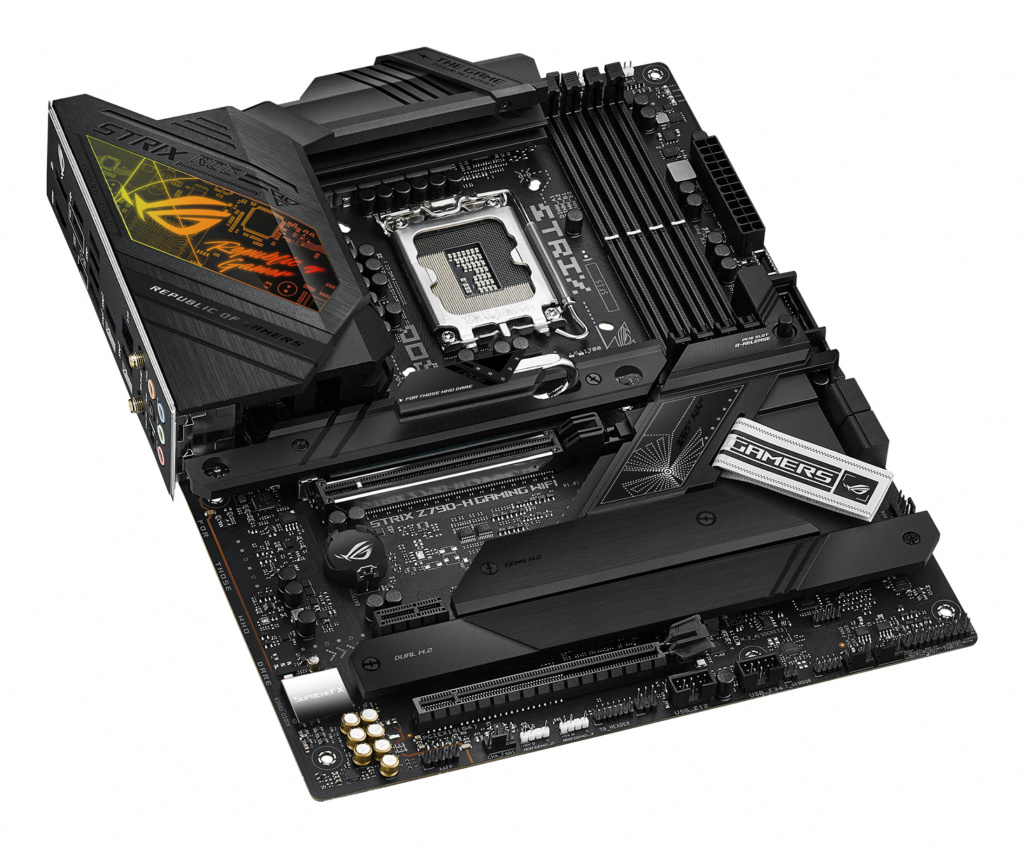

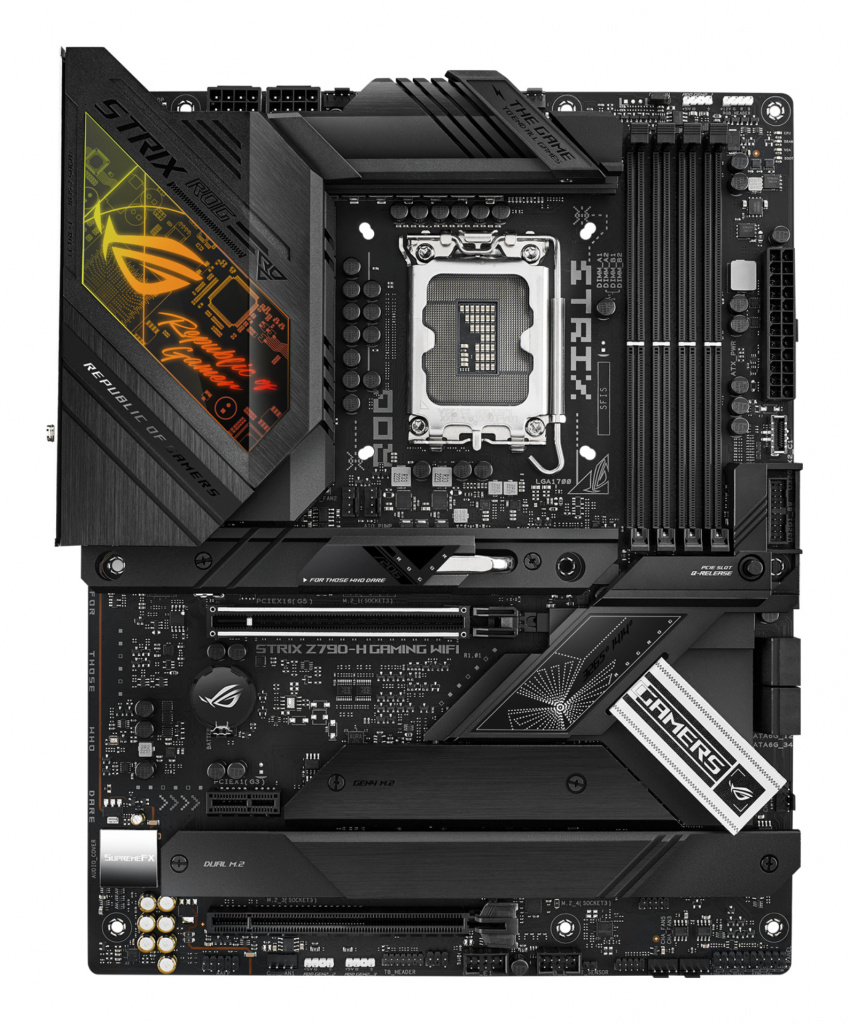

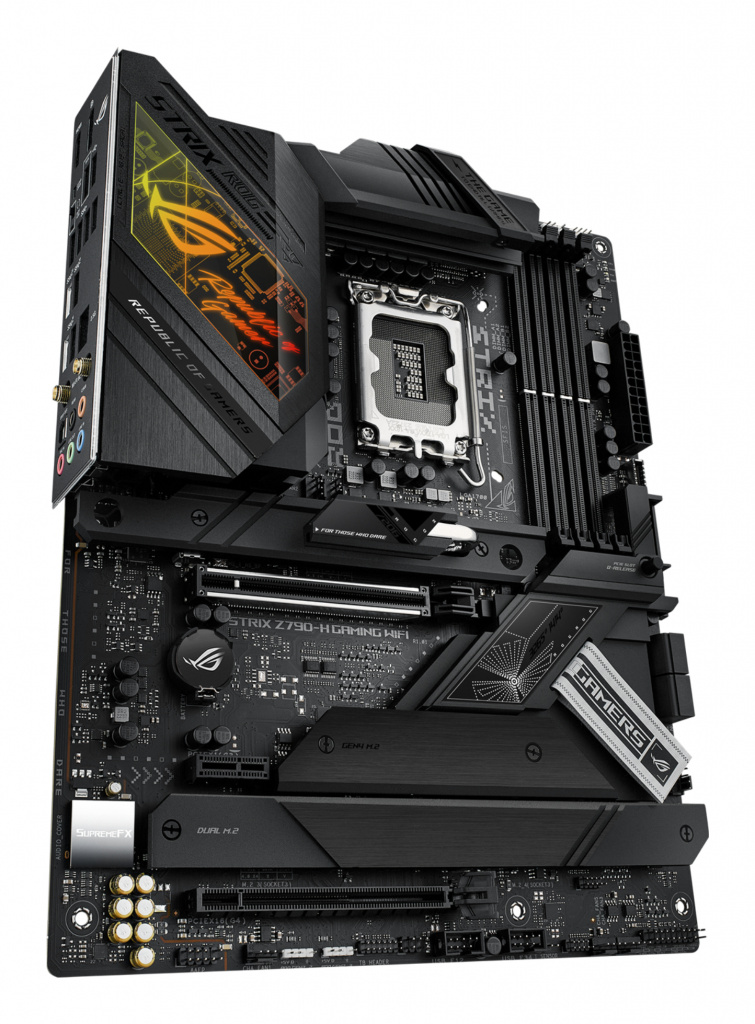

ROG STRIX Z790-H GAMING WIFI
Strike stealthily with the powerfully potent ROG Strix Z790-H. Thick black heatsinks keep VRM temperatures under wraps, allowing Intel® 13th Gen processors room for higher boosts. Four M.2 slots are similarly outfitted, and the top slot comes with a combo sink to sneak in extra cooling. PCIe 5.0 support lies in wait for next-gen graphics cards, and cutting-edge WiFi 6E and USB 3.2 Gen 2×2 fully flesh out connectivity.
ALL-ROUND PERFORMANCE
Every aspect of the Strix Z790-H is intelligently optimized so the processor, memory, and connected devices can run in lockstep in order to achieve breakneck speeds.
AI OVERCLOCKING
Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation.
LEADING CONNECTIVITY
Lightning-fast networking keeps the Strix Z790-H in sync with the outside world for uninterrupted gaming and creation. Furthering immersion is SupremeFX audio, which delivers crystal clear sound.
WIFI 6E
Onboard WiFi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments.
Intel 2.5G Ethernet
Low-latency gaming, speedy file transfers, and high-resolution video streaming are among the many perks of onboard Intel® 2.5 Gbps Ethernet
PLAY IN STYLE
Black PCB and heatsinks compliment most hardware, and customizable RGB lighting furthers the flexibility. Pair the Strix Z790-H with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.
UNDENIABLY ROG STRIX
Diagonal slats, brushed aluminum, and bold RGB accents have become hallmarks of the ROG aesthetic, and the Strix Z790-H bears all of them with pride.
SOFTWARE UTILITIES
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
AI COOLING II
Balance the thermals and acoustics of any build with a single click. A proprietary ASUS algorithm slashes unnecessary noise while running a quick stress test, and then monitors CPU temperatures to dynamically adjust fans to optimal speeds.
| Vægt | 1,7000 kg |
|---|---|
| Processorproducent | Intel |
| Brand | ASUS |
| State | Default |
| Processor sokkel | LGA 1700 |
| Kompatibel processor serie | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Maksimalt antal SMP-processorer | 1 |
| Understøttede hukommelsestyper | DDR5-SDRAM |
| Antal hukommelsesstik | 4 |
| Maksimal intern hukommelse | 128 GB |
| Hukommelses slots type | DIMM |
| Hukommelseskanaler | To-kanals |
| Understøttede hukommelsesclock-hastigheder | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz |
| Ikke-bufferet hukommelse | Ja |
| USB 2.0-stik | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) stik | 1 |
| Lydstik på frontpanel | Ja |
| ATX strømstrik (24 stikben) | Ja |
| CPU-ventilatorstik | Ja |
| Antal kabinetventilatorstik | 5 |
| 12V strømstik | Ja |
| Antal USB 2.0-porte | 2 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 2 |
| Ethernet LAN-porte (RJ-45) | 1 |
| HDMI-version | 2.0 |
| Ethernet LAN | Ja |
| Ethernet-grænsefladetype | 2.5 Gigabit Ethernet |
| Komponent til | PC |
| Motherboard form faktor | ATX |
| Bundkort chipset familie | Intel |
| Bundkort chipsæt | Intel Z790 |
| Lyd-output kanaler | 7.1 kanaler |
| Lydchip | Realtek ALC S1220A |
| Understøttede Windows-operativsystemer | Windows 10, Windows 11 |
| Antal M.2 (M) slots | 4 |
| BIOS-type | UEFI AMI |
| BIOS-hukommelsesstørrelse | 256 Mbit |
| Bredde | 305 mm |
| Dybde | 244 mm |
| Kabler inkluderet | SATA |
| Understøttede lagerdrev brugerflader | M.2, SATA |
| Antal SATA stik | 4 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 1 |
| Antal HDMI-porte | 1 |
| Antal DisplayPorts | 1 |
| S/PDIF-udgang | Ja |
| Wi-Fi | Ja |
| RAID-niveauer | 0, 1, 5, 10 |
| EPS strømstik (8-pin) | Ja |
| PCI Ekspres x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| Bluetooth | Ja |
| Bluetooth-version | 5.3 |
| Understøttet datalagringsdrev typer | HDD & SSD |
| Antal understøttede HHD'er | 4 |
| Thunderbolt-headere | 1 |
| DisplayPort-version | 1.4 |
| Strømkilde type | ATX |
| Ikke-fejlkorrigerende kode | Ja |
| Header med RGB-LED-ben | Ja |
| Understøtter RAID | Ja |
| WiFi-AP antenne stik | 1 |
| Bedste Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi-standarder | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Digital akustisk og optisk udgang | 5 |
| Antal understøttede lagerdiske | 4 |
| USB-stik type | USB Type-A |
| Lydstik | Ja |
| Antal COM-porte | 1 |
| On-board grafikkort | Ingen |
| Antal USB 3.2 Gen 2x2 type-C-porte | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Strømstik til ventilator | Ja |
| Kompatible operativsystemer | Windows® 11, Windows® 10 64-bit |
| ECC сompatibility | NON-ECC |
