Compact Power, Intelligent Performance
Smaller, Faster, Better, AI Ready
The ASUS NUC brand represents a commitment to technological excellence, prioritizing innovative product design, to push the boundaries of performance and user experience.
Developed through a partnership between ASUS and Intel, the ASUS NUC product lines anchor on delivering uncompromised performance in the smallest form factors, backed by industry best quality and reliability, innovative modular designs, extended lifes pan options, smart cooling solutions, and advanced AI capabilities. The versatility of the products shines through an array of configurations catering to diverse user needs, from developers, to power users, to casual home use. Positioned as the preferred choice for a variety of business applications, vertical industries, and everyday users, the ASUS NUC combines exceptional performance with essential features, aiming to shape the next generation of PC experiences.
With a focus on supporting diverse businesses and enhancing PC applications, the ASUS NUC aspires to deliver on the brand promise of delivering the Next Unit of Compute (NUC) and make a lasting impact in the ever-evolving tech landscape.

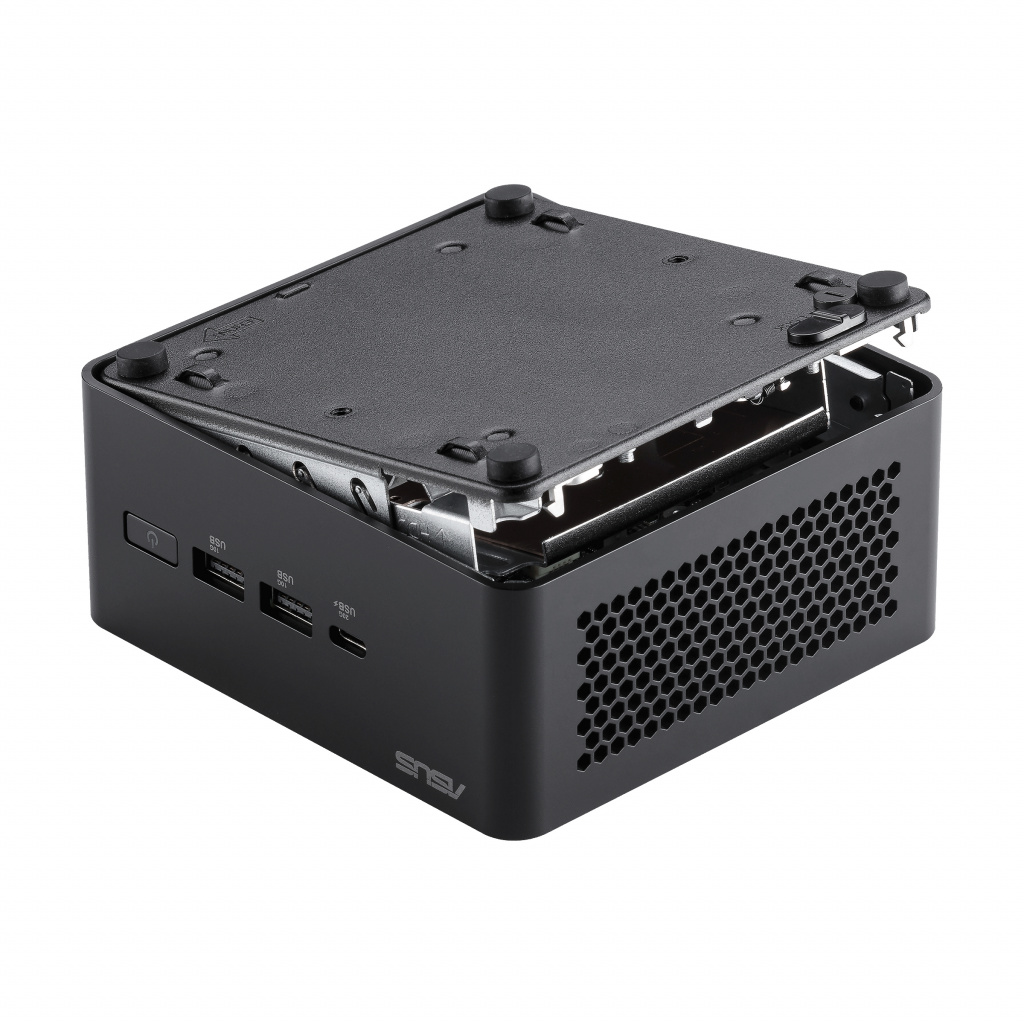

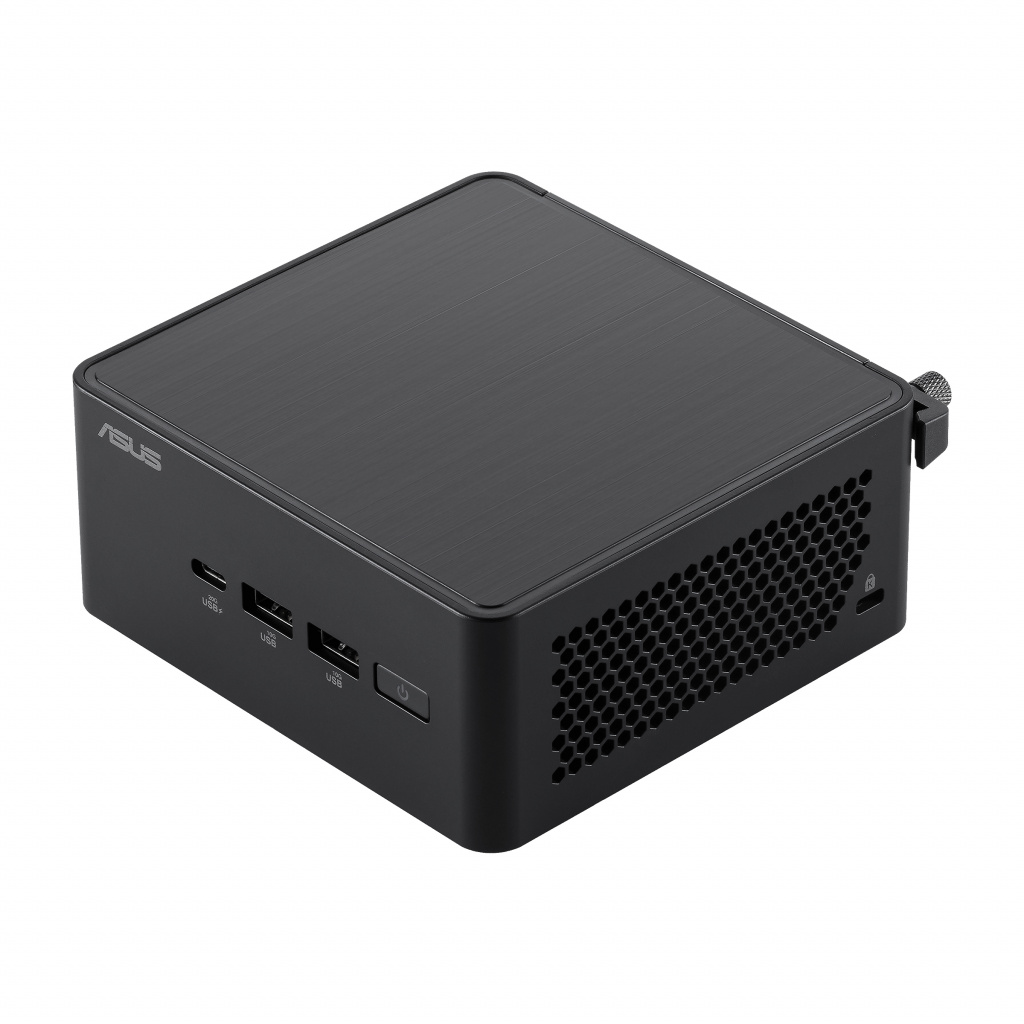

Toolless Design
ASUS NUC 14 Pro offers toolless access to make it easy to open up the chassis to assess the M.2 PCIe SSD module for easy upgrades.
Certified Bluetooth
dongle-free experience
A certified Bluetooth dongle offers hassle-free operation, cost savings, and resolves ITDM issues. It eliminates concerns such as lost dongles, PC Bluetooth compatibility, and USB port limitations on NUC.
The dongle-free approach simplifies pairing, enhances audio quality, and improves control in video collaboration calls.
| Vægt | 1,5960 kg |
|---|---|
| Processorserie | Intel Core Ultra 5 |
| Brand | ASUS |
| State | Default |
| Processorproducent | Intel |
| Processormodel | 125H |
| Processorkerner | 14 |
| Processor-cache | 18 MB |
| Processor cache type | Smart cache |
| Antal installerede processorer | 1 |
| Intern hukommelse | 16 GB |
| Maksimal intern hukommelse | 96 GB |
| Intern hukommelsestype | DDR5-SDRAM |
| Hukommelseslayout (slots x størrelse) | 2 x 8 GB |
| Hukommelsesstik | 2x SO-DIMM |
| Hukommelsesur hastighed | 5600 MHz |
| Hukommelseskanaler | To-kanals |
| Samlet lagringskapacitet | 512 GB |
| Optisk drevtype | Ingen |
| Lagermedie | SSD |
| SDD-kapacitet | 512 GB |
| SSD-grænsefladetype | PCI Express 4.0 |
| NVMe | Ja |
| SSD-formfaktor | M.2 |
| Diskret grafikadapter | Ingen |
| On-board grafikkort | Ja |
| Diskret grafikadaptermodel | Ikke tilgængelig |
| On-board grafikkort, model | Intel Arc Graphics |
| Ethernet LAN | Ja |
| Wi-Fi | Ja |
| Ethernet LAN-datahastigheder | 10,1000,2500,100 Mbit/s |
| Antal USB 2.0-porte | 1 |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-A-porte | 0 |
| Ethernet LAN-porte (RJ-45) | 1 |
| Kabinettype | UCFF |
| Produktfarve | Sort |
| Antal 2.5" bays | 1 |
| Produkttype | Mini PC |
| Operativsystem installeret | Windows 11 Pro |
| Operativsystemets arkitektur | 64-bit |
| Strømforsyning | 120 W |
| Bredde | 117 mm |
| Dybde | 112 mm |
| Højde | 54 mm |
| Vægt | 600 g |
| Skærm inkluderet | Ingen |
| Product family | NUC |
| Product series | 14 Pro+ |
| Samlet kapacitet for SSD'er | 512 GB |
| Antal installerede SSD'er | 1 |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-A-porte | 3 |
| Antal USB 3.2 Gen 2x2 type-C-porte | 1 |
| Processorgeneration | Intel Core Ultra (Series 1) |
| Antal USB 3.2 Gen 2 (3.1 Gen 2) type-C-porte | 0 |
| Performance-kerner | 4 |
| Effektive kerner | 8 |
| Basisfrekvens af performancekerne | 1,2 GHz |
| Basisfrekvens af effektiv kerne | 0,7 GHz |
| Processor base power | 28 W |
| Maksimal turbokraft | 115 W |
| Indbygget grafikadapterfamilie | Intel Arc Graphics |
| Antal HDMI-porte | 2 |
| HDMI-version | 2.1 |
| DC-in-stik | Ja |
| VESA montering | Ja |
| Bluetooth | Ja |
| Bedste Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi-standarder | 802.11a, Wi-Fi 5 (802.11ac), 802.11b, Wi-Fi 6 (802.11ax), 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6E (802.11ax) |
| Bluetooth-version | 5.3 |
| Thunderbolt 4 porte antal | 2 |
| Intel® Thunderbolt 5 | Ja |
| Antal USB 3.2 Gen 1 (3.1 Gen 1) type-C-porte | 0 |
| USB type-C DisplayPort alternativ tilstand | Ja |
| Effektiv kerne maksimal turbofrekvens | 3,6 GHz |
| Ydelseskerne maksimal turbofrekvens | 4,5 GHz |
| On-board GPU manufacturer | Intel |
| Low Power Efficient-cores | 2 |
| Low Power Efficient-core Base Frequency | 700 MHz |
| Low Power Efficient-core Max Turbo Frequency | 2,5 GHz |
| Antal Thunderbolt 3-porte | 0 |
