Powerful cooling performance

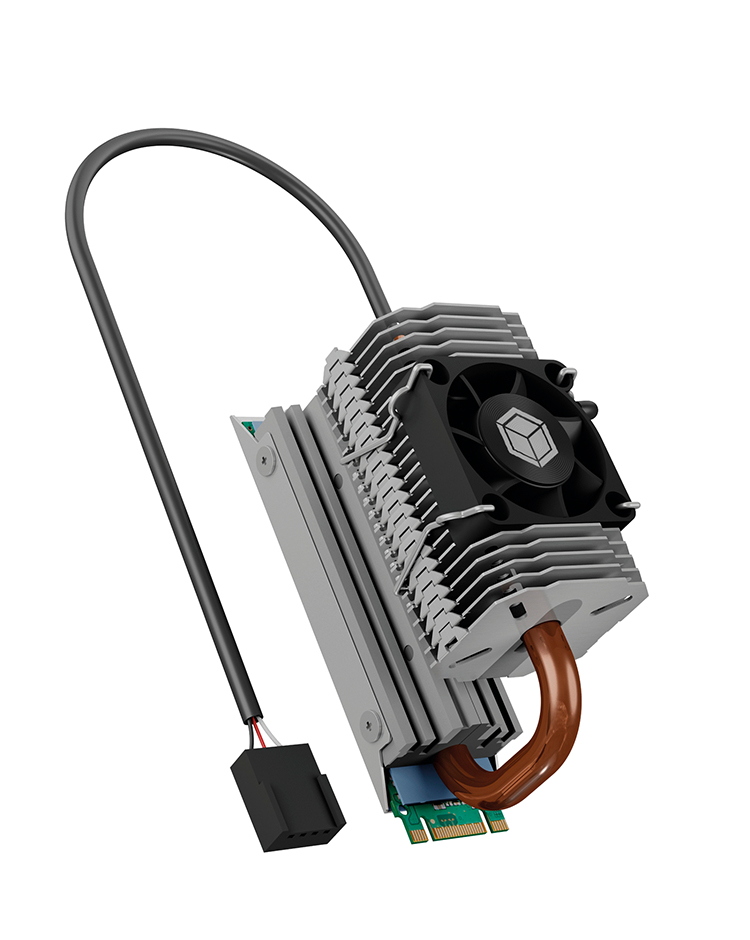

The swivelling ICY BOX® heatpipe cooler reduces the temperature of your M.2 SSD (form factor 2280) by up to 40%. Due to the excellent interaction of cooling fins and fan, a cooling capacity of 23 W TDP is achieved. Depending on SSD manufacturer, model and version, as well as load of the SSD.
Perfectly positioned
The possibility to swivel the ICY BOX® heatpipe cooler allows the airflow in the enclosure to be optimally directed. It can also be positioned flexibly, which creates additional space for graphics cards or PCIe expansion cards. This allows you to fit even more performance into small enclosures.
Silent fan
The 30 mm PVM fan has an output of 8500 rpm and a volume flow of approx. 4.9 m³/h. You can further optimise the fan settings for yourself via the BIOS. This makes it possible to achieve cooling that is perfectly matched to the system. The fan is pleasantly quiet even under high demands.
| Vægt | 0,0000 kg |
|---|---|
| Passende til rumtype | Solid-state drev |
| Brand | ICY BOX |
| State | Default |
| Type | Køleplade/køler |
| Produktfarve | Sølv |
| Spænding | 12 V |
| Pakkevægt | 173 g |
| Ventilator diameter | 3 cm |
| Omdrejningshastighed (maks.) | 8500 rpm |
| Oprindelsesland | Kina |
| Maksimal luftstrøm | 2,87 kubikfod/min. |
| Luftstrøm | 4,87 m³/t |
| Materiale | Aluminium, Kobber |
| Antal blæsere | 1 blæser(e) |
| Antal lameller | 22 |
| Antal varmerør | 1 |
| Ventilatorstik | 4-polet |
| Nominel strøm | 0,09 A |
| Thermal Design Power (TDP) | 23 W |
| Bredde | 50 mm |
| Dybde | 75 mm |
| Højde | 30 mm |
| Vægt | 86 g |
| Ventilator dimensioner (BxDxH) | 30 x 30 x 7 mm |
| Varmerør diameter | 6 mm |
| Kabellængde | 0,5 m |
| Pakkebredde | 100 mm |
| Pakkedybde | 200 mm |
| Pakkehøjde | 40 mm |
| Skruer inkluderet | Ja |
| Termisk pude inkluderet | Ja |
| Hovedkassens bredde (udvendigt) | 225 mm |
| Hovedkassens længde (udvendigt) | 440 mm |
| Hovedkassen højde (udvendigt) | 425 mm |
| Hovedkassens bruttovægt (udvendigt) | 7,6 kg |
| Produkter pr. hovedkasse (udvendigt) | 40 stk |
| Antal pr. pakke | 1 stk |
| Driftstemperatur (T-T) | -20 – 180 °C |
| Termisk ledningsevne | 1,5 W/mK |
| Antal hastigheder | 1 |
| Finne tykkelse | 0,5 mm |
